LevelOne FSW-0508TX network switch

LevelOne 5-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

LevelOne's FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.

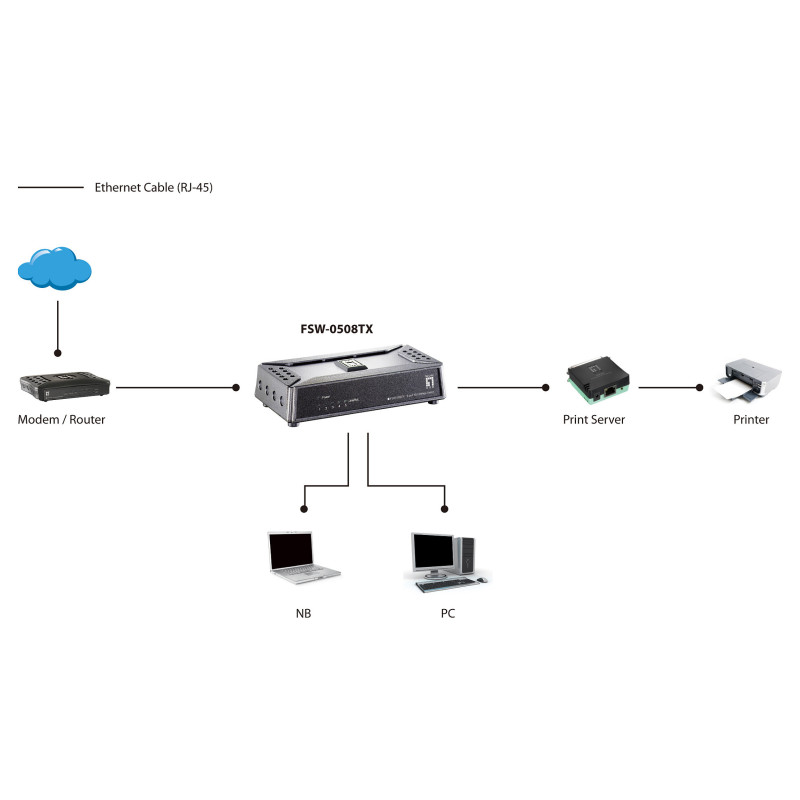

Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.

Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.

- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

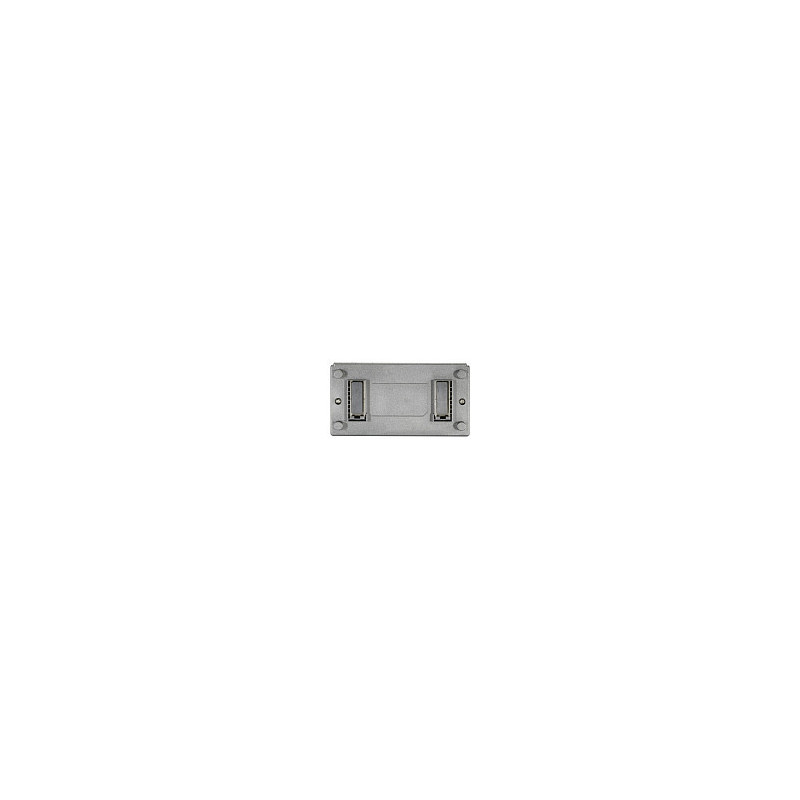

- Magnetic base for easy placement
- Compact, lightweight design

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 1 Gbit/s
MAC address table: 2048 entries
Feature: Store-and-forward
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Black, Grey
LED indicators: Activity, Link, Power

Performance

Buffer size: 48 KB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 5 V
Output current: 1 A
Power consumption (typical): 2.5 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 125 mm
Depth: 69 mm
Height: 30 mm

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Package width: 120 mm
Package depth: 100 mm
Package height: 156 mm
Package weight: 400 g

Certificates

Certification: FCC, CE, RoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
