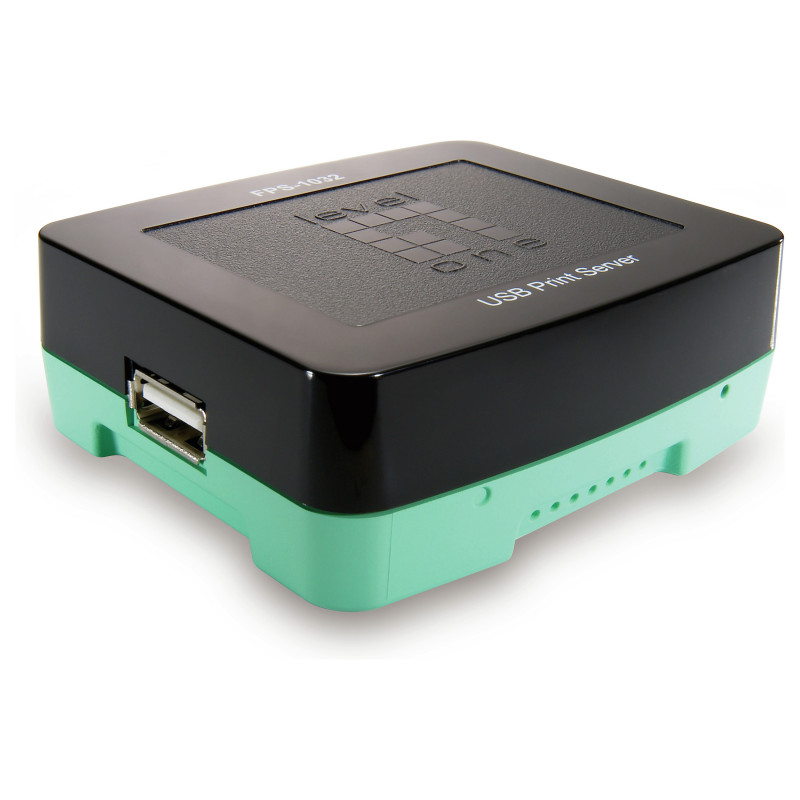

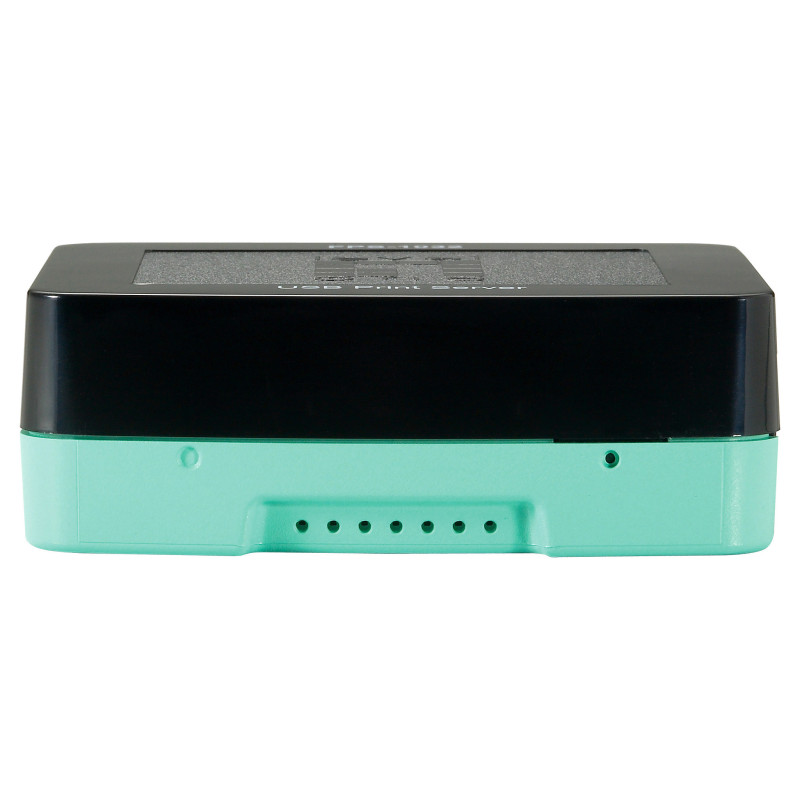

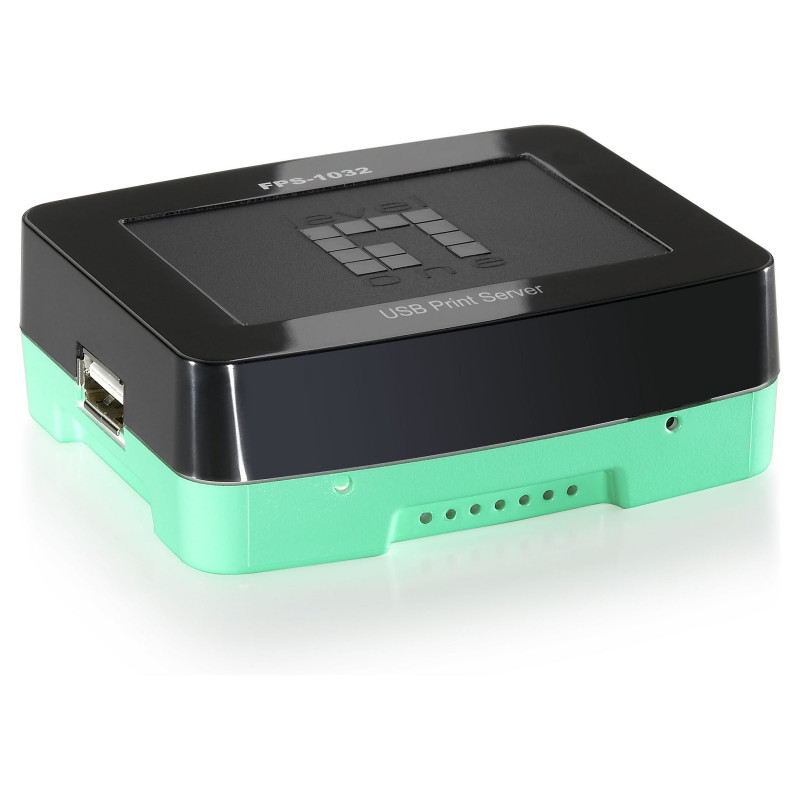

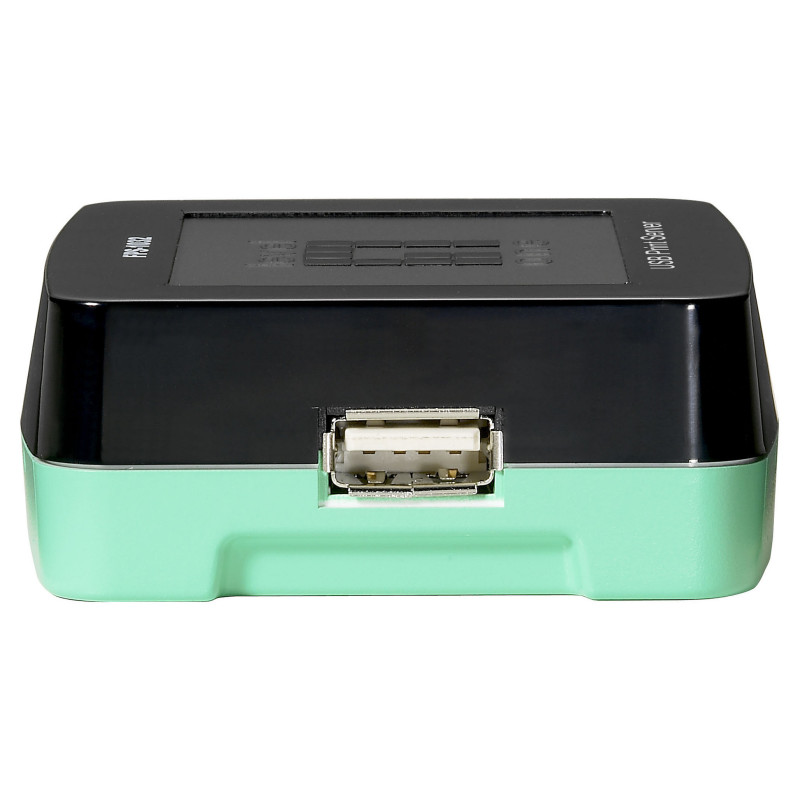

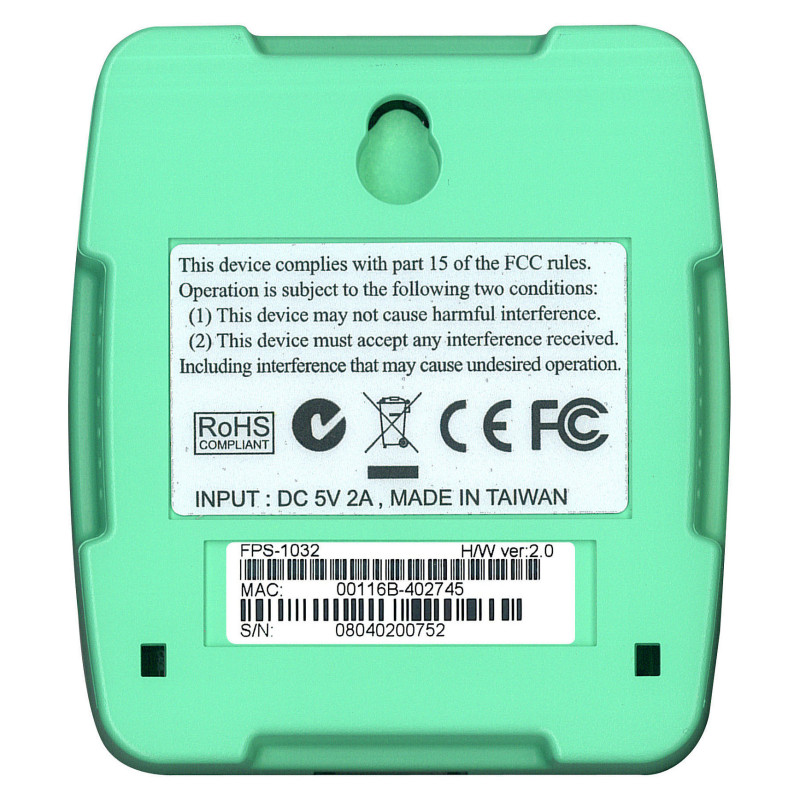

LevelOne FPS-1032 print server

LevelOne USB Print Server. Product colour: Black, Green, LED indicators: Activity, Link, Power, Status, Country of origin: Taiwan. Network connection type: Ethernet LAN, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Supported network protocols: TCP/IP, IPX, NetBEUI, AppleTalk, LPR, RAW TCP, SMB over TCP/IP. USB connector type: USB Type-A. Windows operating systems supported: Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home..., Mac operating systems supported: Mac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Other operating systems supported: Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x
Product Overview

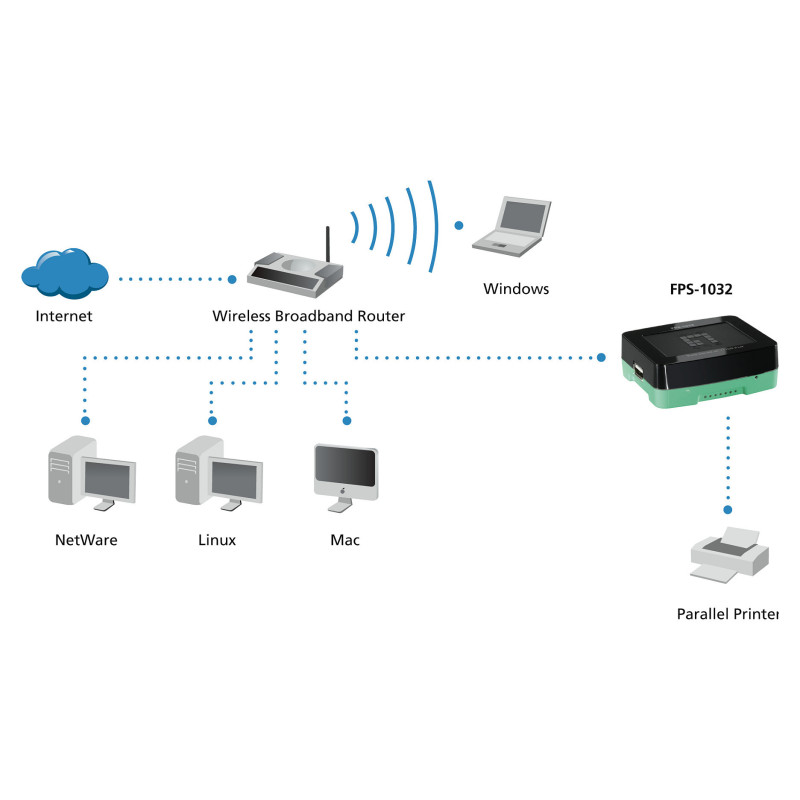

The LevelOne FPS-1032 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a USB 2.0 port that connected to USB printer.
Multi OS and Network Printing Protocol Support
The FPS-1032 1-port USB print server supports Windows ME/NT/2000/XP/2003/Vista and Win7 operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).
Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1032 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.
Easy Installation Wizard
The LevelOne FPS-1032 is easily configurable using a Web Browser or Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the windows set-up program or the Web based user interface.
- USB print server for network print sharing
- USB 2.0 interface
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems

Features

Internal: No
Product colour: Black, Green
LED indicators: Activity, Link, Power, Status
IPP support: Yes
DHCP client: Yes
Country of origin: Taiwan

Network

Network connection type: Ethernet LAN
Networking standards: IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates: 10,100 Mbit/s

Protocols

Supported network protocols: TCP/IP, IPX, NetBEUI, AppleTalk, LPR, RAW TCP, SMB over TCP/IP
Web-based management: Yes

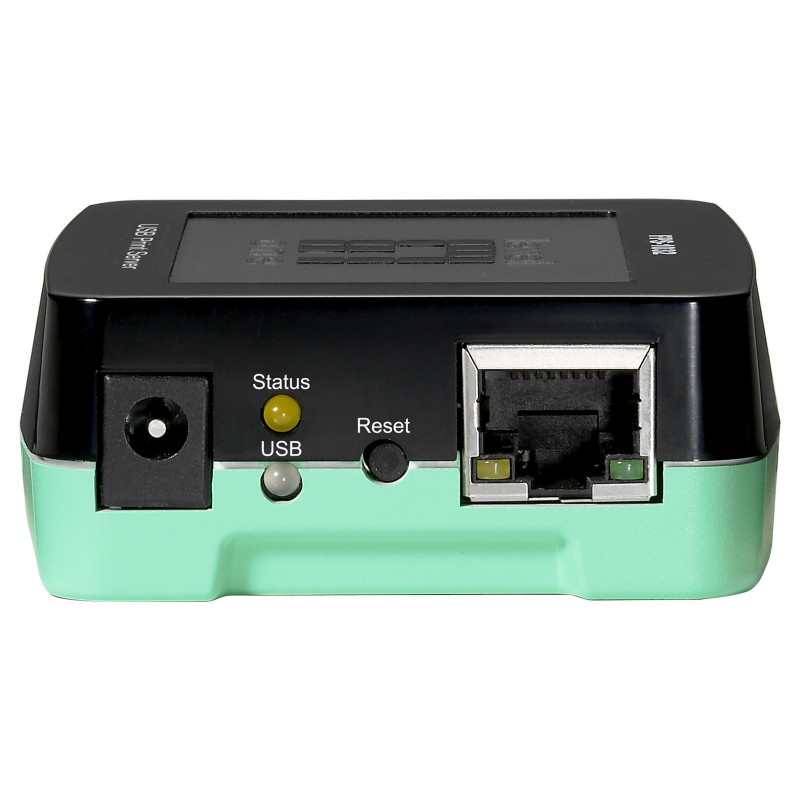

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
DC-in jack: Yes
USB connector type: USB Type-A

Software

Windows operating systems supported: Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows ME, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported: Mac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2
Linux operating systems supported: Yes
Other operating systems supported: Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x

Certificates

Certification: CE, FCC Class B

Weight dimensions

Width: 64.8 mm
Depth: 73.2 mm
Height: 24.9 mm
Weight: 520 g

Packaging data

Package width: 152 mm
Package depth: 219 mm
Package height: 66 mm
Package weight: 560 g

Operational conditions

Operating relative humidity (H-H): 0 - 50%
Storage temperature (T-T): -5 - 65 °C
Storage relative humidity (H-H): 0 - 70%
Operating altitude: 0 - 80 m
