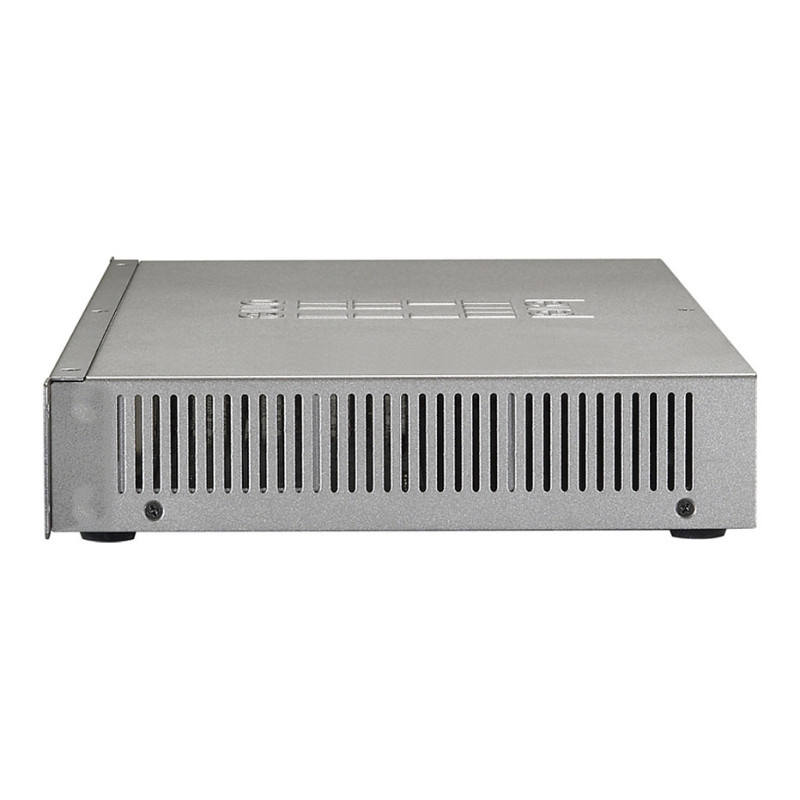

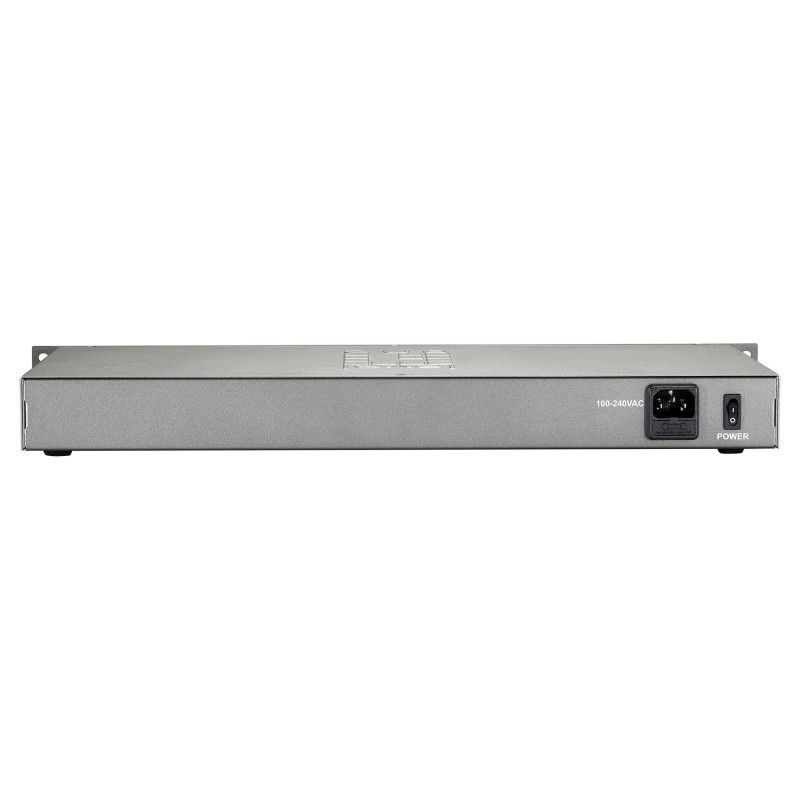

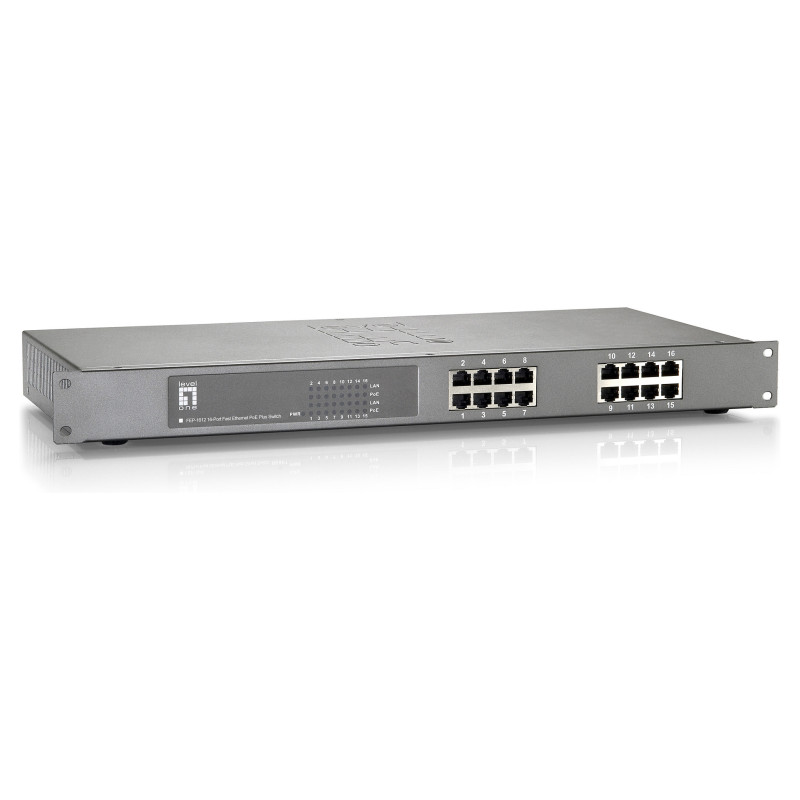

LevelOne FEP-1612W150 network switch

LevelOne 16-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 150W. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely.
The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.
The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands.
Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- Supports 4K MAC address auto-learning and auto-aging
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 19-inch metal housing
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 3.2 Gbit/s
MAC address table: 4000 entries
Feature: Store-and-forward
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Grey
Housing material: Metal
LED indicators: Activity, PoE, Power

Performance

Buffer size: 160 KB
Feature: Plug and Play

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 5 A
Power consumption (typical): 150 W
Power protection features: Over current

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 200 mm
Depth: 480 mm
Height: 44 mm
Weight: 2.85 kg

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Package type: Box
Feature: Rubber feet
Package width: 250 mm
Package depth: 535 mm
Package height: 90 mm
Package weight: 3.7 kg

Certificates

Certification: CE, FCC

Logistics data

Country of origin: Taiwan
Master (outer) case width: 520 mm
Master (outer) case length: 560 mm
Master (outer) case height: 280 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 19.8 kg
Products per master (outer) case: 5 pc(s)
