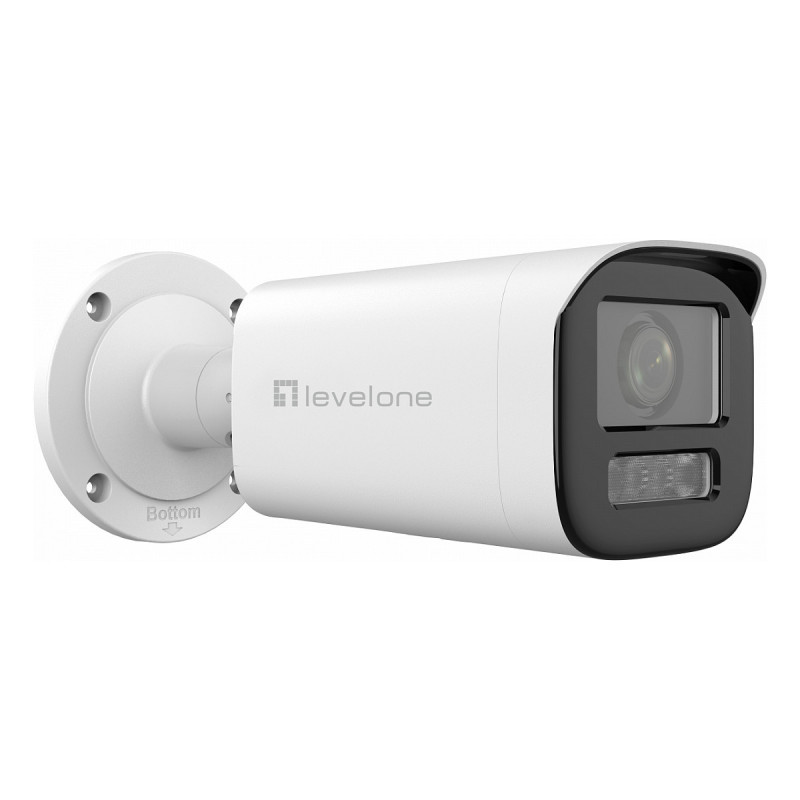

LevelOne FCS-5222 security camera

LevelOne GEMINI Zoom IP Camera, 2-MP, Zoom, H.265,INDOOR/OUTDOOR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 33 - 110°, Lens viewing angle, vertical: 18 - 58°, Lens viewing angle, diagonal: 38 - 134°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4.3x, Digital zoom: 8x, Focal length range: 2.7 - 13.5 mm

The LevelOne FCS-5222 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3at standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5222 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
LED indicators: Activity, Power
International Protection (IP) code: IP67
Feature: Weatherproof
Country of origin: China

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 33 - 110°
Lens viewing angle, vertical: 18 - 58°
Lens viewing angle, diagonal: 38 - 134°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 4.3x
Digital zoom: 8x
Number of lenses: 1
Focal length range: 2.7 - 13.5 mm
Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 60 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)

Audio

Audio system: 2-way
Signal-to-Noise Ratio (SNR): 52 dB

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.3af, IEEE 802.3at

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Intelligent Video Surveillance (IVS) system features: Intrusion, Line crossing detection
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Power

Power source type: DC, PoE
Power consumption (max): 11 W
Power consumption (Power over Ethernet (PoE)): 12.9 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 105 mm
Depth: 252.5 mm
Height: 252.5 mm
Weight: 960 g

Packaging data

Package width: 280 mm
Package depth: 135 mm
Package height: 35 mm
Package weight: 1.4 kg
Package type: Box

Sustainability

Compliance certificates: CE, UKCA

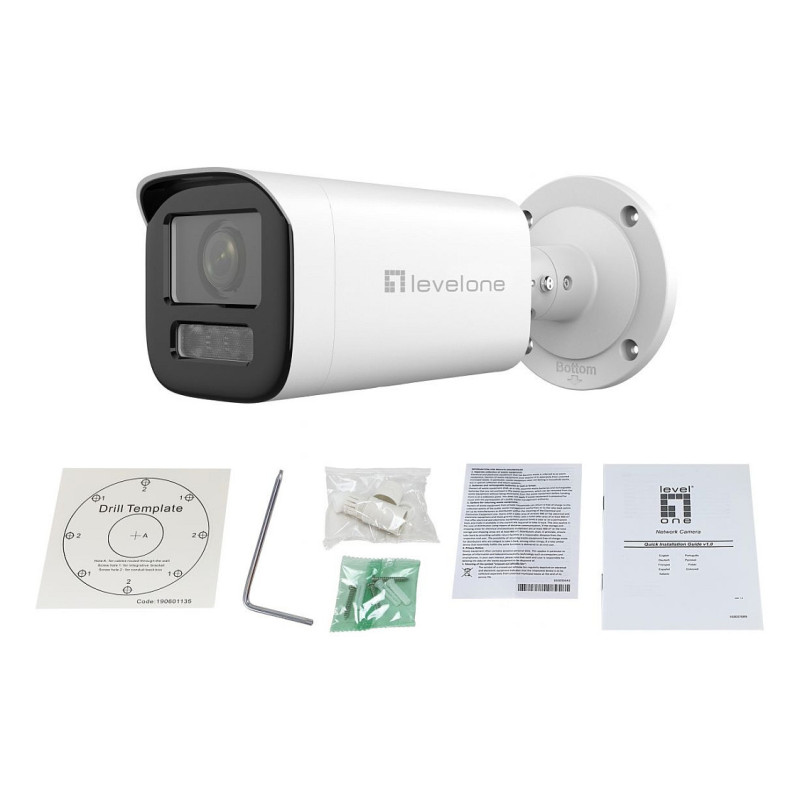

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Manual

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 157 cm
Customs product code (TARIC): 8525890000
Harmonized System (HS) code: 852589
Master (outer) case width: 560 mm
Master (outer) case length: 550 mm
Master (outer) case height: 610 mm
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 9 pc(s)
