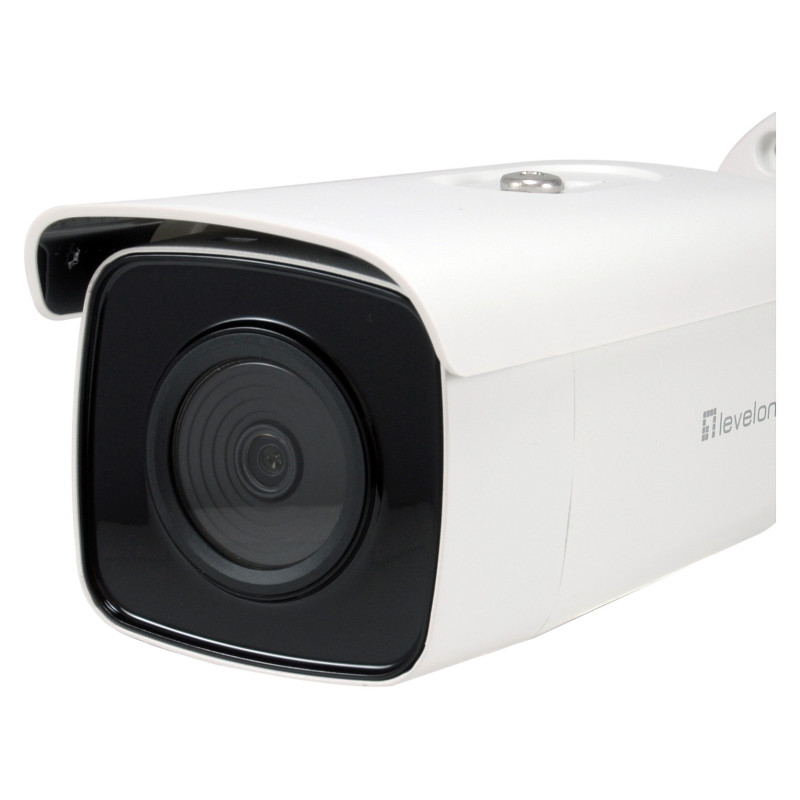

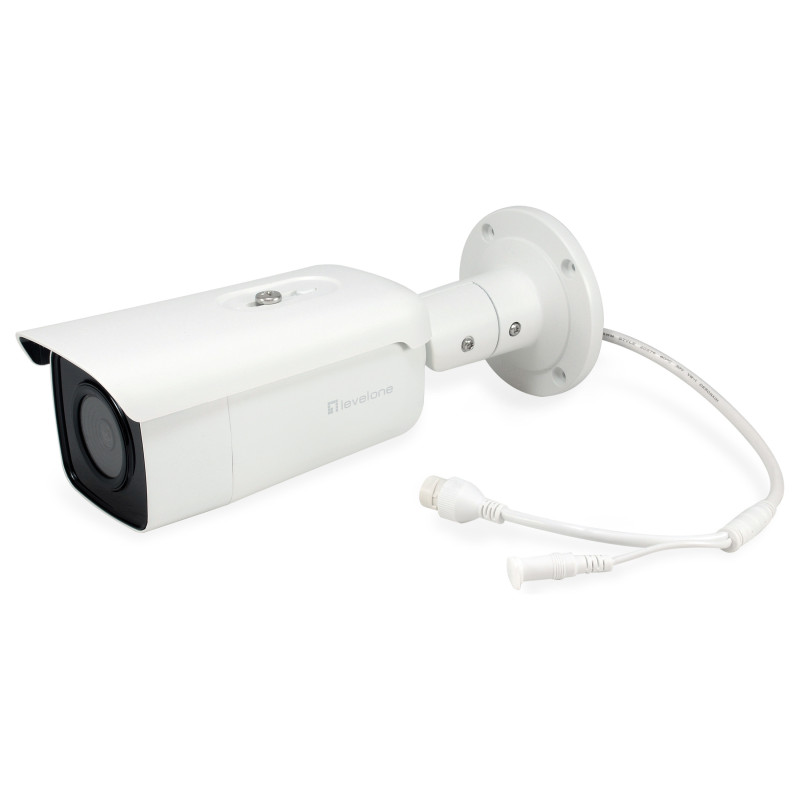

LevelOne FCS-5092 security camera

LevelOne GEMINI FIXED IP CAMERA, 6-MP, H.265, 802.3AF, POE, IR LEDS 60 METER, INDOOR/OUTDOOR. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Field of view (FOV) angle: 83.9°, Camera shutter speed: 1/3 - 1/100000 s. Sensor type: CMOS. Digital zoom: 8x
The LevelOne FCS-5092 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 6-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5092 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Number of languages: 33
Dynamic range: 120 dB
Certification: FCC, UL

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
LED indicators: Power
International Protection (IP) code: IP67
Weatherproof: Yes
Country of origin: China

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 83.9°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Sensor type: CMOS

Lens system

Digital zoom: 8x

Night vision

Night vision: Yes
Night vision distance: 60 m
LED type: IR

Video

Maximum resolution: 3200 x 1800 pixels
Total megapixels: 6 MP
Video formats supported: MPEG4
Video compression formats: H.264, H.265
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Audio

Audio system: 1-way

Network

Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Live view: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Active tampering alarm: Yes
Intelligent Video Surveillance (IVS) system features: Crossing line, Face detection, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Human and vehicle targets classification: Yes

Management features

Web-based management: Yes

Power

Power source type: PoE
AC input voltage: 12 V
Power consumption (max): 9 W
Power consumption (Power over Ethernet (PoE)): 7.5 W
Power over Ethernet (PoE): Yes

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported: Yes

Weight dimensions

Width: 386 mm
Depth: 155 mm
Height: 156 mm
Weight: 1.08 kg

Packaging data

Package width: 155 mm
Package depth: 160 mm
Package height: 380 mm
Package weight: 1.4 kg

Sustainability

Sustainability compliance: Yes
Compliance certificates: CE, RoHS

Packaging content

Number of cameras: 1
Screws included: Yes
Manual: Yes
Resource CD: Yes

Other features

Browser supported: IE 10+, Chrome 57.0+, Firefox 52.0+

Logistics data

Master (outer) cases per pallet (air): 12 pc(s)
Pallet gross width: 120 cm
Pallet height (air): 12.6 m
Master (outer) case width: 490 mm
Master (outer) case length: 400 mm
Master (outer) case height: 460 mm
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 9 pc(s)
