LevelOne FCS-4203 security camera

LevelOne GEMINI Zoom Dome IP Network Camera, 2-Megapixel, H.265, 4.3X Optical Zoom, two-way audio, IR LEDs, 802.3af PoE, Vandalproof, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.014 lx, Field of view (FOV) angle: 112°, Camera shutter speed: 1/3 - 1/10000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Optical zoom: 4.3x, Focal length range: 2.8 - 12 mm

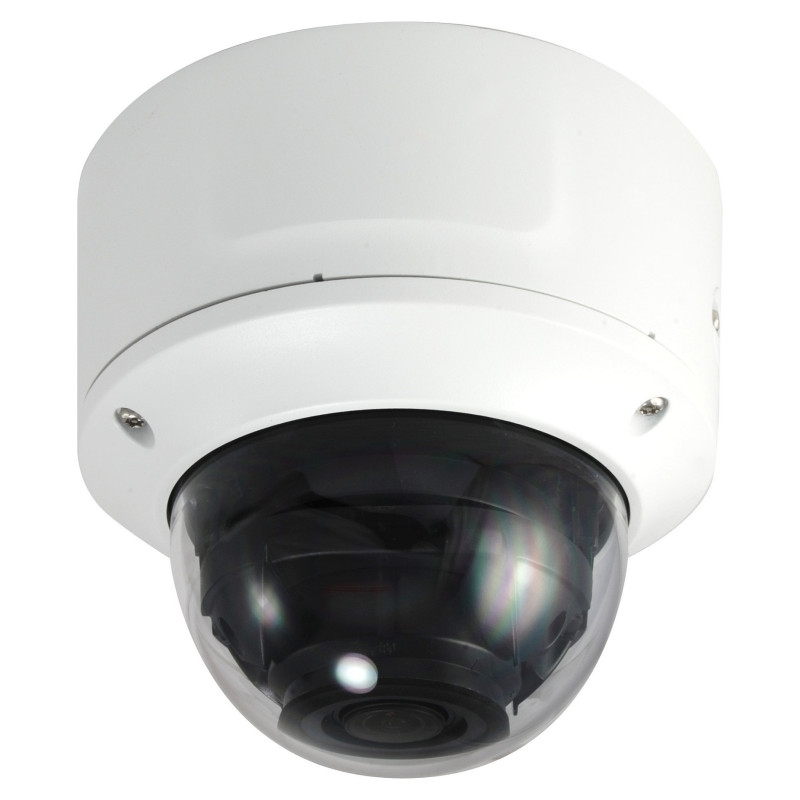

The LevelOne FCS-4203 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-4203 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: CE/FCC

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Power
Protection features: Vandal proof
International Protection (IP) code: IP66
IK code: IK10
Country of origin: China

Camera

Minimum illumination: 0.014 lx
Field of view (FOV) angle: 112°
Camera shutter speed: 1/3 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Optical zoom: 4.3x
Number of lenses: 1
Focal length range: 2.8 - 12 mm
Focus adjustment: 1.4

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: AVI
Video compression formats: H.264, M-JPEG
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Full HD
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking

Audio

Audio system: 2-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: G.711, G.726
Voice codecs: MP2L2, G.711, G.722.1, G.726

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Supported network protocols: TCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Cabling technology: 10/100Base-T(X)
Number of users: 16 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Terminal block port
Feature: DC-in jack
Interface: RJ-45

Security

Feature: Password protection
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Management features

Feature: Web browser
Feature: Reset button

Power

Power source type: PoE
Power consumption (max): 5.5 W
DC output voltage: 12
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight & dimensions

Width: 133.1 mm
Depth: 153.4 mm
Height: 153.4 mm
Weight: 1.29 kg

Packaging data

Package width: 174 mm
Package depth: 173 mm
Package height: 244 mm
Package weight: 1.82 kg
Package type: Box

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Resource CD

Other features

Data transfer rate: 16 Mbit/s
Browser supported: Internet Explorer 9

Logistics data

Harmonized System (HS) code: 85258900
Master (outer) case width: 365 mm
Master (outer) case length: 372 mm
Master (outer) case height: 504 mm
Master (outer) case gross weight: 14.6 kg
Products per master (outer) case: 8 pc(s)
