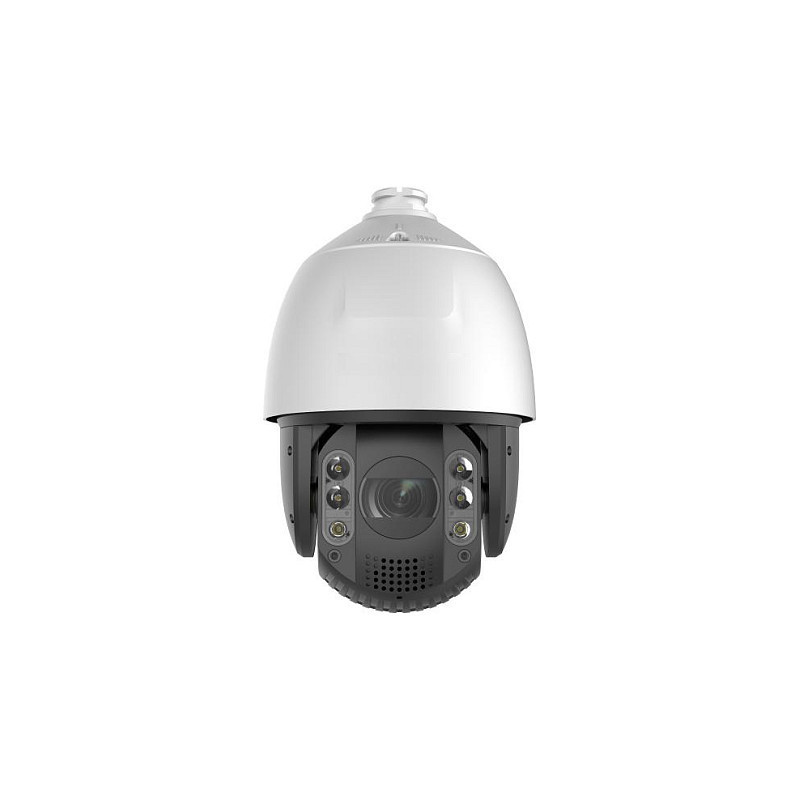

LevelOne FCS-4072 security camera

LevelOne FCS-4072 GEMINI PTZ IP Camera, 4-MP, 32x Zoom, H.265, IR 200M, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 360°, Tilt speed: 120 °/sec, Tilt preset speed: 200 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 32x, Digital zoom: 16x, Focal length range: 5.9 - 188.8 mm
he LevelOne FCS-4072 is a PTZ IP surveillance camera designed for use outdoors, boasting 4-Megapixel resolution and a 32X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area, and 200 meter IR led for night view clear. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Infrared (IR) cut-off filter: Yes

Design

Form factor: Dome
Mounting type: Wall
Product colour: White
LED indicators: Activity, Link
International Protection (IP) code: IP66
Weatherproof: Yes
Country of origin: China

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 360°
Tilt speed: 120 °/sec
Tilt preset speed: 200 °/sec
Pan speed: 160 °/sec
Pan preset speed: 240 °/sec
Camera shutter speed: 1/1 - 1/30000 s

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Optical zoom: 32x
Digital zoom: 16x
Number of lenses: 1
Focal length range: 5.9 - 188.8 mm

Night vision

Night vision: Yes
Night vision distance: 200 m
LED type: IR

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate: 25 fps
Privacy masking: Yes

Audio

Audio system: 2-way
Voice codecs: AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Network

Ethernet LAN: Yes
Supported network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Intelligent Video Surveillance (IVS) system features: Abandoned object, Abnormal sound detection, Face detection, Intrusion, Line crossing detection, Missing object, Region entrance detection, Region exiting detection

Power

Power source type: AC, DC, PoE
Power consumption (max): 42 W
DC output voltage: 24

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 220 mm
Depth: 220 mm
Height: 353.4 mm
Weight: 5 kg

Packaging data

Package width: 270 mm
Package depth: 270 mm
Package height: 480 mm
Package weight: 5.5 kg
Package type: Box

Sustainability

Compliance certificates: BIS, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, UKCA, UL

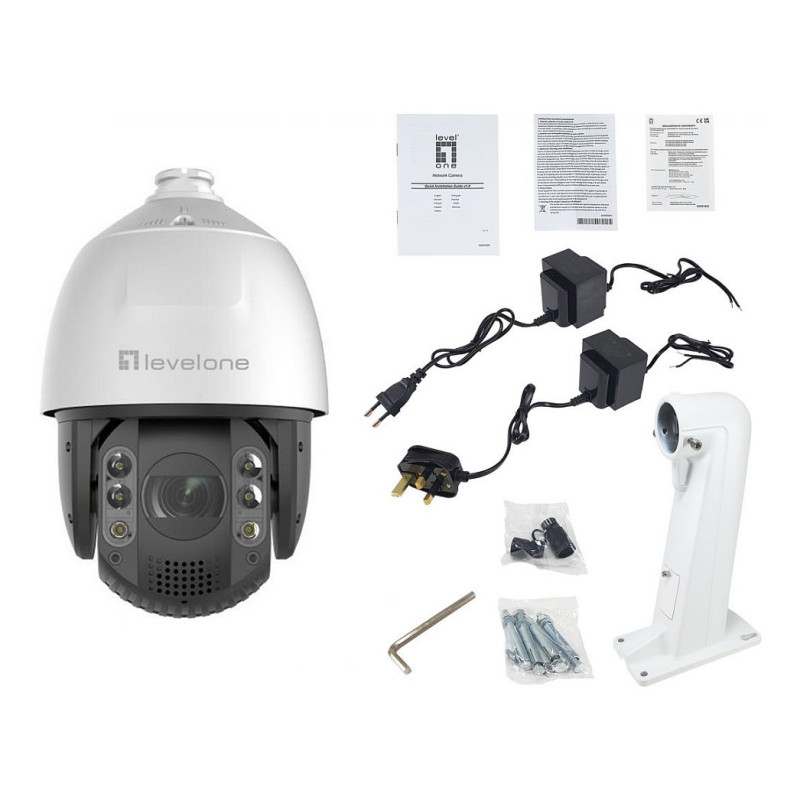

Packaging content

Number of cameras: 1
Mounting kit: Yes
Screws included: Yes
Manual: Yes
AC adapter included: Yes

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 156.9 cm
Customs product code (TARIC): 8525890000
Harmonized System (HS) code: 852589
Master (outer) case width: 450 mm
Master (outer) case length: 280 mm
Master (outer) case height: 550 mm
Master (outer) case gross weight: 12 kg
Products per master (outer) case: 2 pc(s)
