LevelOne FCS-4051 security camera

LevelOne GEMINI PTZ IP Network Camera, 2-Megapixel, 20X Optical Zoom, Indoor/Outdoor, IR LEDs, two-way audio, 802.3at PoE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Field of view (FOV) angle: 58.3°, Tilt angle range: -15 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 20x, Focal length range: 4.7 - 94 mm

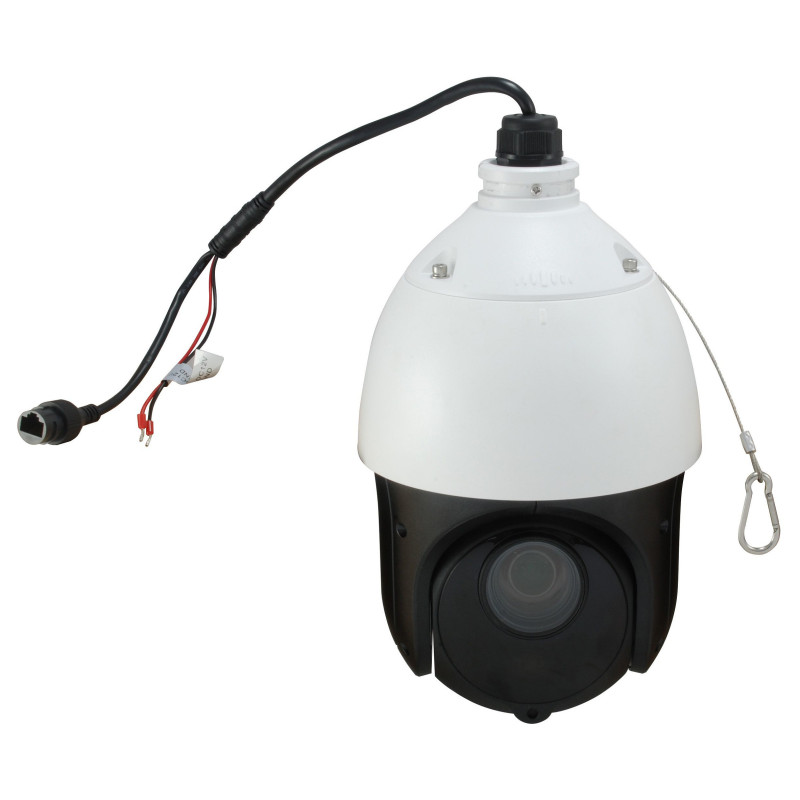

The LevelOne FCS-4051 is a PTZ IP surveillance camera designed for use outdoors, boasting 2-Megapixel resolution and a 20X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: CE/FCC

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
LED indicators: Power
International Protection (IP) code: IP66
Feature: Weatherproof
Country of origin: China

Camera

Minimum illumination: 0.01 lx
Field of view (FOV) angle: 58.3°
Tilt angle range: -15 - 90°
Tilt preset speed: 80 °/sec
Pan range: 0 - 360°
Pan speed: 80 °/sec
Feature: Auto flip
Camera shutter speed: 1 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Optical zoom: 20x
Number of lenses: 1
Focal length range: 4.7 - 94 mm
Maximum aperture number: 3.5
Minimum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 50 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: AVI
Video compression formats: H.264, M-JPEG
Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 60 fps
Feature: Full HD
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Digital Wide Dynamic Range (DWDR)

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio codecs: G.711/G.722/G.726/MP2L2

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Cabling technology: 10/100Base-T(X)
Number of users: 16 user(s)
Feature: Quality of Service (QoS) support

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack
Interface: RJ-45

Security

Feature: Password protection
Feature: IP address filtering
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Management features

Feature: Web browser
Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (Power over Ethernet (PoE)): 20 W
DC output voltage: 12
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 0 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8

Weight & dimensions

Width: 295 mm
Diameter: 16.4 cm
Weight: 2 kg

Packaging data

Package width: 218 mm
Package depth: 384 mm
Package height: 218 mm
Package weight: 2.2 kg
Package type: Box

Packaging content

Number of cameras: 1
Feature: Quick installation guide
Feature: Resource CD

Other features

Data transfer rate: 16 Mbit/s
Browser supported: Internet Explorer 9+

Logistics data

Harmonized System (HS) code: 85258900
Pallet net height: 140 cm
Pallet net length: 80 cm
Pallet net width: 120 cm
Master (outer) case width: 460 mm
Master (outer) case length: 405 mm
Master (outer) case height: 460 mm
Master (outer) case gross weight: 9.5 kg
Products per master (outer) case: 4 pc(s)
