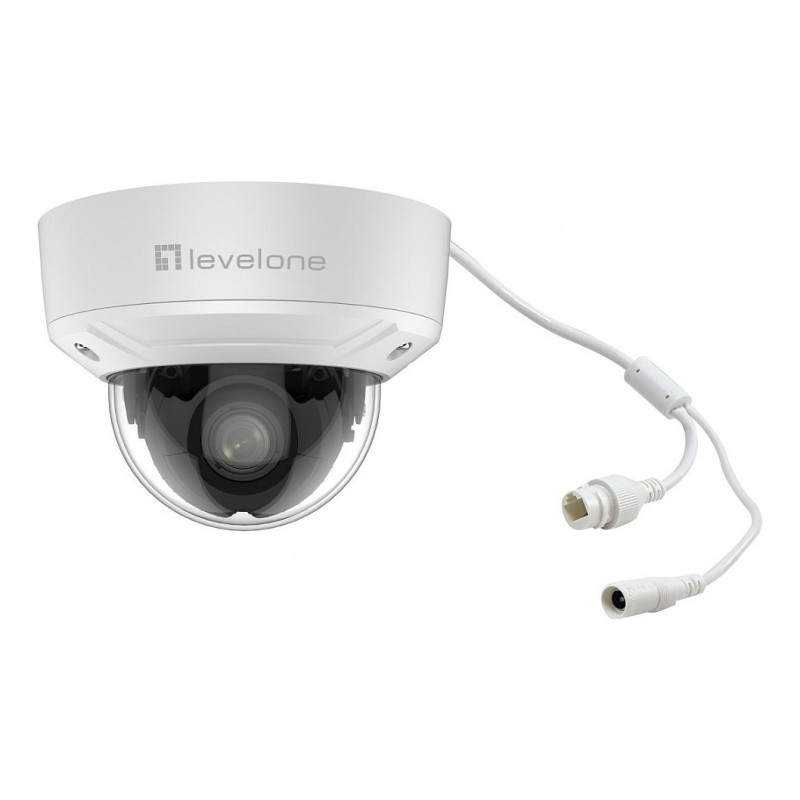

LevelOne FCS-3461 security camera

LevelOne GEMINI Zoom IP Camera, 2-MP, 4x Zoom, H.265,INDOOR/OUTDOOR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 38 - 98°, Lens viewing angle, vertical: 21 - 52°, Lens viewing angle, diagonal: 43 - 115°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 4x, Digital zoom: 16x, Focal length range: 2.8 - 12 mm

The LevelOne FCS-3461 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3461 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Infrared (IR) cut-off filter
Dynamic range: 120 dB

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
LED indicators: Activity, Power
Protection features: Vandal proof, Weatherproof
International Protection (IP) code: IP67
Country of origin: China

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 38 - 98°
Lens viewing angle, vertical: 21 - 52°
Lens viewing angle, diagonal: 43 - 115°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 4x
Digital zoom: 16x
Number of lenses: 1
Focal length range: 2.8 - 12 mm
Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Back Light Compensation (BLC)

Audio

Audio system: 1-way

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Intelligent Video Surveillance (IVS) system features: Intrusion, Line crossing detection, Missing object
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Power

Power source type: DC, PoE
Power consumption (max): 10 W
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 116 mm
Depth: 153 mm
Height: 153 mm
Weight: 800 g

Packaging data

Package width: 239 mm
Package depth: 169 mm
Package height: 160 mm
Package weight: 1.3 kg
Package type: Box

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), UKCA

Packaging content

Number of cameras: 1

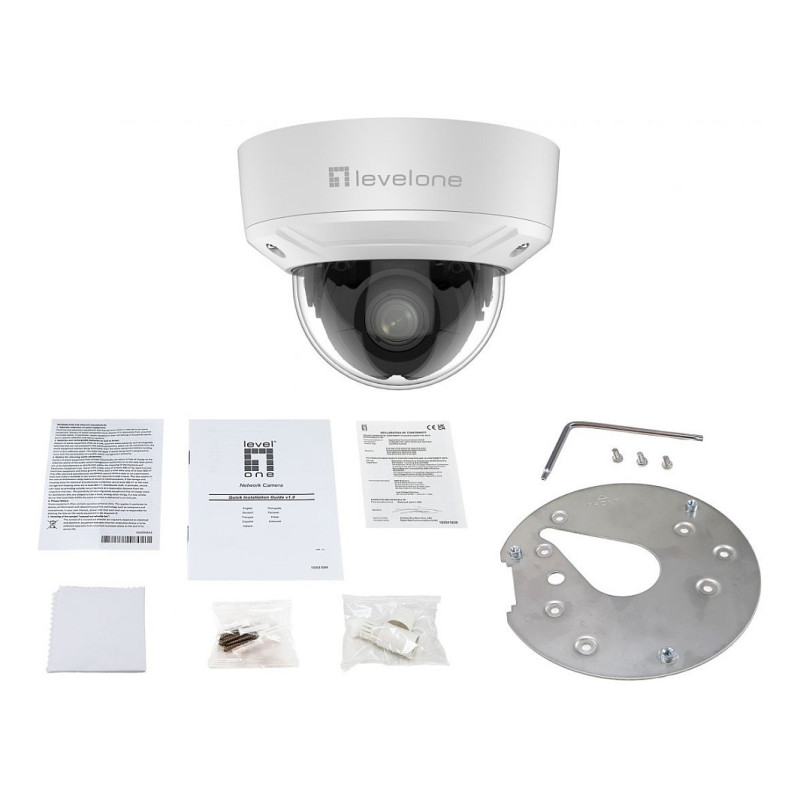

Feature: Screws included

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 143 cm
Customs product code (TARIC): 8525890000
Harmonized System (HS) code: 852589
Master (outer) case width: 568 mm
Master (outer) case length: 345 mm
Master (outer) case height: 590 mm
Master (outer) case gross weight: 16 kg
Products per master (outer) case: 12 pc(s)
