LevelOne FCS-3403 security camera

LevelOne GEMINI Fixed Dome IP Network Camera, 4-Megapixel, H.265, 802.3af PoE, IR LEDs, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 86°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 4 mm

The LevelOne FCS-3403 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3403 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Protection features: Dust resistant, Heat resistant, Rain proof, Snow resistant
International Protection (IP) code: IP67
IK code: IK10
Feature: Weatherproof
Country of origin: China

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 86°
Lens viewing angle, vertical: 46°
Lens viewing angle, diagonal: 102°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Focus adjustment: 2.0
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 2680 x 1520 pixels
Total megapixels: 4 MP
Video formats supported: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 240, 352 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Portrait mode
Feature: Privacy masking
Feature: Time stamp overlay
Feature: Text caption overlay
Feature: Image stabilizer
Feature: Back Light Compensation (BLC)

Audio

Audio formats supported: G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.1af
Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP,IGMP,SNMP
Number of users: 32 user(s)
Feature: Quality of Service (QoS) support

Storage

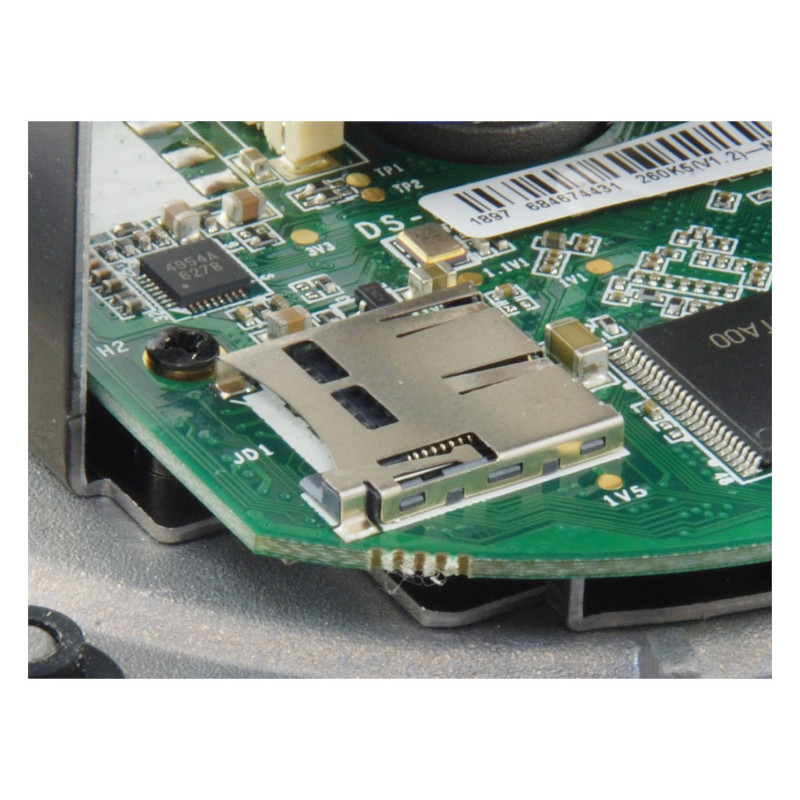

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: Motion sensor
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (max): 8.5 W
Power consumption (Power over Ethernet (PoE)): 10 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 82 mm
Diameter: 11.1 cm
Weight: 500 g

Packaging data

Package width: 134 mm
Package depth: 134 mm
Package height: 108 mm
Package weight: 530 g
Package type: Box

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Resource CD

Other features

Browser supported: Internet Explorer 8 above,Safari 8.0

Technical details

Number of video streams: 3

Logistics data

Harmonized System (HS) code: 85258900
Pallet net height: 150 cm
Pallet net length: 80 cm
Pallet net width: 120 cm
Master (outer) case width: 345 mm
Master (outer) case length: 590 mm
Master (outer) case height: 568 mm
Master (outer) case gross weight: 608 g
Products per master (outer) case: 24 pc(s)
