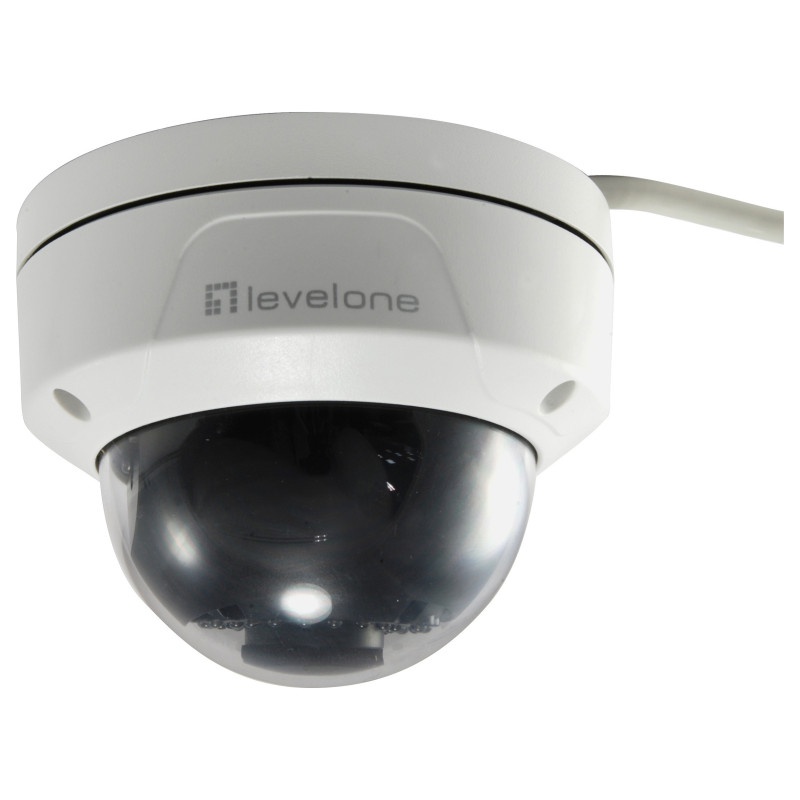

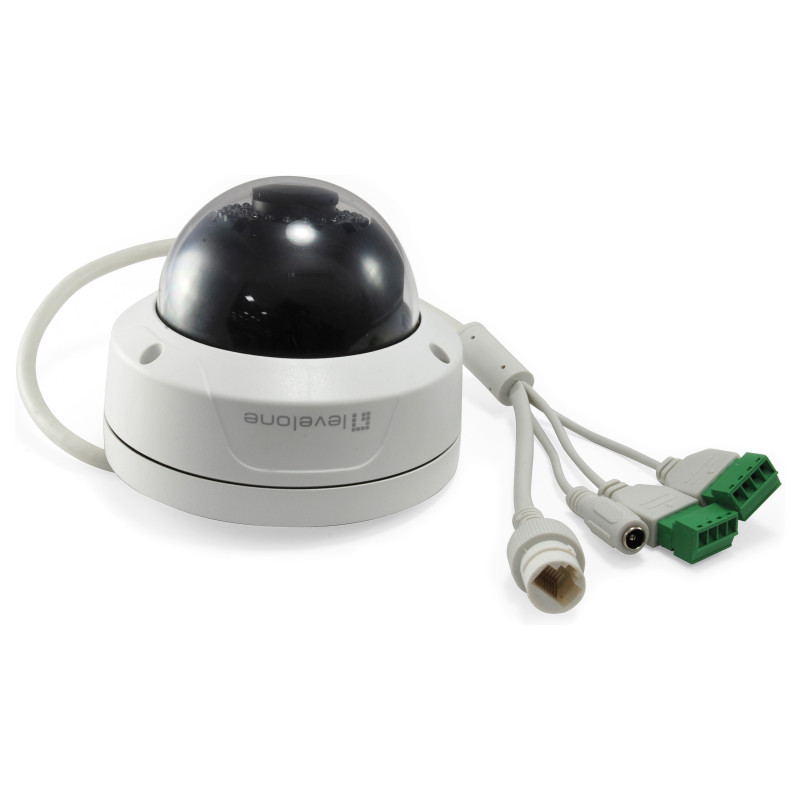

LevelOne FCS-3402 security camera

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, H.265, Vandalproof, 802.3af PoE, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 86°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Digital zoom: 8x, Fixed focal length: 4 mm

The LevelOne FCS-3402 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Certification: CE, FCC

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
LED indicators: Power
Protection features: Dust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof
International Protection (IP) code: IP67
IK code: IK10
Feature: Weatherproof
Country of origin: China

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 86°
Lens viewing angle, vertical: 46°
Lens viewing angle, diagonal: 102°
Camera shutter speed: 1/3 - 1/100000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Digital zoom: 8x
Number of lenses: 1
Focus adjustment: 2.0
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Privacy masking
Feature: Back Light Compensation (BLC)
Feature: Region of Interest (ROI) encoding

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour
Number of users: 32 user(s)

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSDHC, MicroSDXC

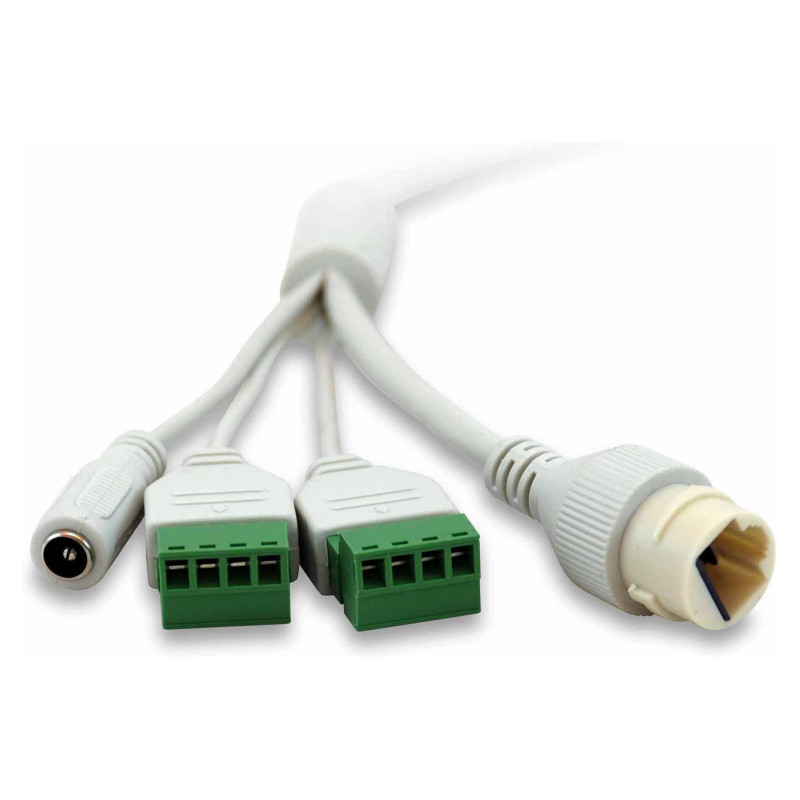

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Headphone outputs: 1
Feature: Terminal block port
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: Anti-flicker
Feature: Heartbeat
Feature: Mirror
Feature: Digital watermark

Management features

Feature: Reset button

Power

Power source type: DC, PoE
Power consumption: 400 mA
Power consumption (max): 5 W
Power consumption (Power over Ethernet (PoE)): 7 W

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Depth: 82 mm
Diameter: 11.1 cm
Weight: 500 g

Packaging data

Package width: 134 mm
Package depth: 111 mm
Package height: 108 mm
Package weight: 502 g
Package type: Box

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Feature: Screws included
Feature: Resource CD

Other features

Browser supported: IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+

Logistics data

Harmonized System (HS) code: 85258900
Master (outer) case width: 111 mm
Master (outer) case length: 111 mm
Master (outer) case height: 111 mm
Master (outer) case gross weight: 608 g
Products per master (outer) case: 24 pc(s)
