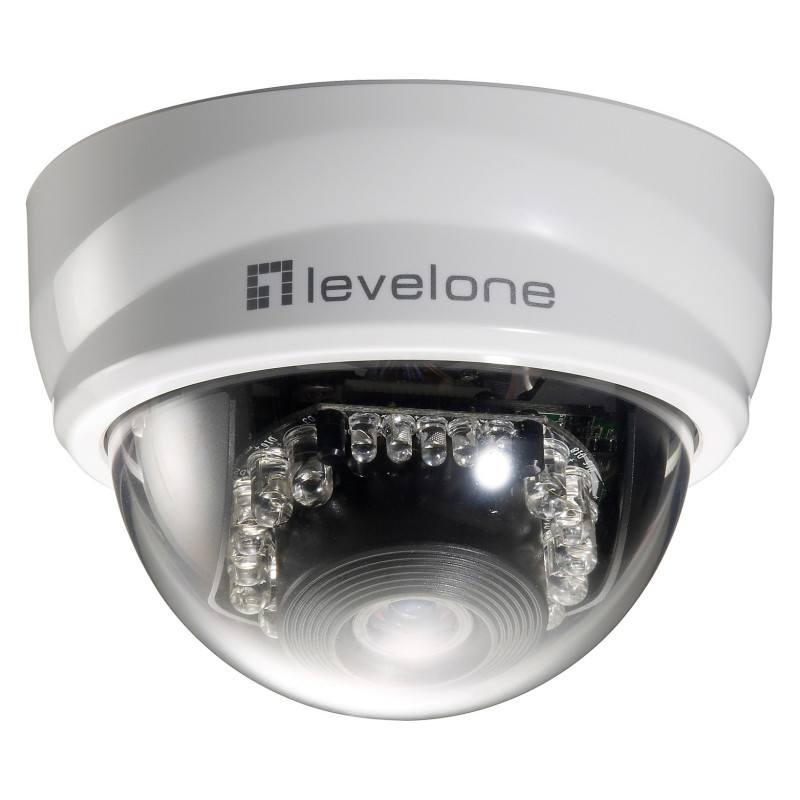

LevelOne FCS-3101 security camera

LevelOne Fixed Dome IP Network Camera, 2-Megapixel, 802.3af PoE, IR LEDs. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Desk, Product colour: Black, White, Form factor: Dome. Minimum illumination: 1 lx, White balance: Auto, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 4 mm
The LevelOne FCS-3101 is a palm-size and stylish design quality yet cost-effective surveillance solution for the home and office. It is designed for easy and flexible installation. Equipped with a 2-Megapixel sensor and built-in IR cut filter/IR illuminator LEDs, the camera provides high resolution quality and sharp sensitivity - ideal for security applications both day and night.
The FCS-3101 is equipped with many advanced features such as Level1DNS™ Service, alarm and sensor, a micro SD/SDHC card slot and USB interface for local storage, built-in microphone communications. Moreover, Support unique features for auto tracking function of moving objects, the system can send an E-mail alert or send captured images via FTP upload to a designated storage server. The FCS-3101 is indisputably the top choice for reliable and high performance surveillance.
- 2-Megapixel (1920 x 1080) high-definition resolution
- Compression: H.264/MPEG-4/MJPEG
- Removable IR-cut filter for day and night surveillance
- Supports 2 video streams simultaneously
- Built-in infrared LEDs for night viewing up to 10m
- Built-in Micro SD/SDHC card slot for local storage
- Built-in microphone for audio monitoring

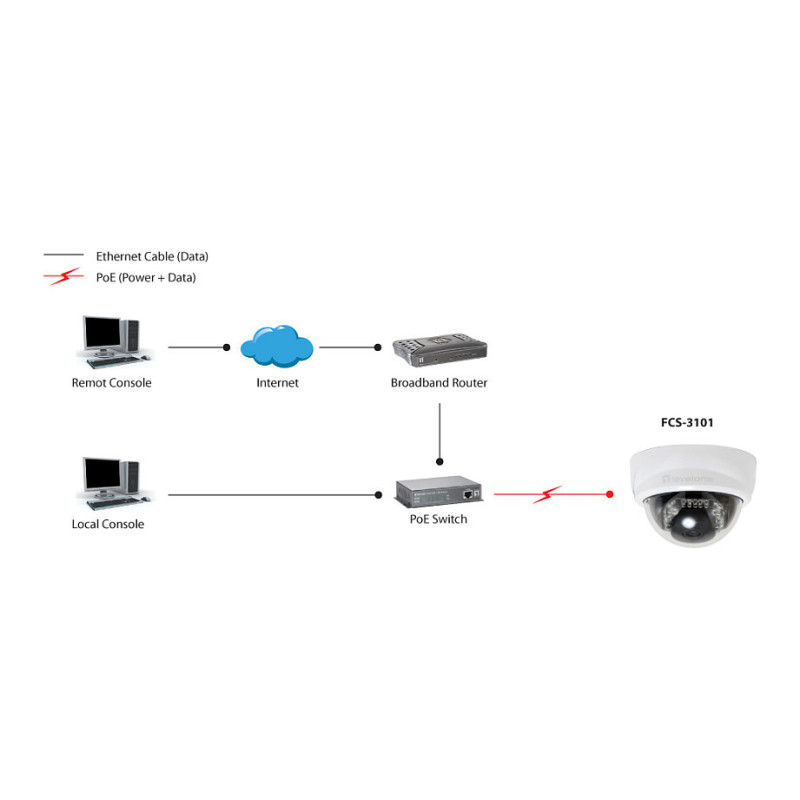

- Dual power support: 12VDC/PoE (IEEE 802.3af)
- Free 64-channel monitoring software included (supports iCamSecure App)

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: CE, FCC, Onvif

Design

Form factor: Dome
Mounting type: Ceiling/Desk
Product colour: Black, White
LED indicators: Link, Power
Country of origin: Taiwan

Camera

Minimum illumination: 1 lx
White balance: Auto
Camera shutter type: Electronic
Camera shutter speed: 1/30 - 1/1000000 s

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Focus adjustment: 2.0
Fixed focal length: 4 mm

Night vision

Night vision: Yes
Night vision distance: 10 m
LED type: IR
Number of illumination LEDs: 19

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: MPEG4
Video compression formats: H.264, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes: 240p, 480p, 720p, 1080p
Frame rate: 30 fps
Noise reduction: Yes
Automatic gain control: Yes
Full HD: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip mirror: Yes
Time stamp overlay: Yes

Audio

Audio system: 1-way
Built-in microphone: Yes
Voice codecs: AMR

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, NTP, PPPoE, DNS, DHCP, RTSP, Samba
Wi-Fi: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC
Maximum memory card size: 64 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Interface: RJ-45

Security

Password protection type: User
IP address filtering: Yes
HTTPS encryption: Yes
Motion sensor: Yes

Management features

Reset button: Yes

Power

Power source type: PoE
AC input voltage: 24 V
Power consumption (typical): 6 W
DC output current: 1.5 A
Power over Ethernet (PoE): Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

System requirements

Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight dimensions

Width: 63 mm
Depth: 63 mm
Height: 93 mm
Weight: 380 g

Packaging data

Package width: 205 mm
Package depth: 155 mm
Package height: 90 mm
Package weight: 700 g
Package type: Box

Sustainability

Compliance certificates: RoHS

Packaging content

Mounting kit: Yes
Screws included: Yes
Manual: Yes
AC adapter included: Yes
Quick installation guide: Yes

Technical details

Number of video streams: 2

Logistics data

Harmonized System (HS) code: 85258900
