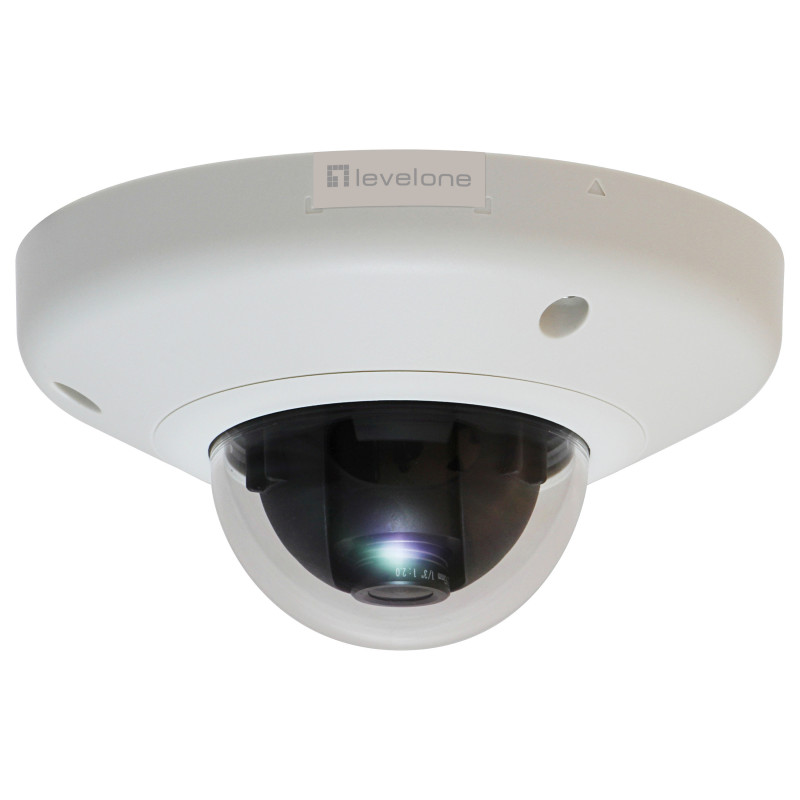

LevelOne FCS-3054 security camera

LevelOne HUBBLE Fixed Dome IP Network Camera, 3-Megapixel, 802.3af PoE, Vandalproof. Type: IP security camera, Connectivity technology: Wired, Certification: CE, FCC, IK08. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 83.3°, White balance: Auto. Sensor type: CMOS, Optical sensor size: 25.4 / 3.2 mm (1 / 3.2"). Fixed focal length: 2.93 mm

Performance

Type: IP security camera
Connectivity technology: Wired
PTZ control: Yes
Certification: CE, FCC, IK08

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Power
Protection features: Vandal proof
Country of origin: Taiwan

Camera

Minimum illumination: 0.1 lx
Lens viewing angle, horizontal: 83.3°
White balance: Auto
Camera shutter type: Electronic
Camera shutter speed: 1/5 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 3.2 mm (1 / 3.2")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Number of lenses: 1
Fixed focus: Yes
Focus adjustment: 2.0
Fixed focal length: 2.93 mm

Night vision

Night vision: No

Video

Maximum resolution: 2048 x 1536 pixels
Total megapixels: 3 MP
Video formats supported: Raw
Video compression formats: H.264, M-JPEG
Supported graphics resolutions: 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Supported video modes: 240p, 480p, 720p, 1080p
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Automatic gain control: Yes
Full HD: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC): Yes

Audio

Built-in microphone: No
Voice codecs: G.711

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size: 64 GB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Interface: RJ-45

Management features

Reset button: Yes

Power

Power source type: PoE
Power consumption (typical): 2.91 W
Power over Ethernet (PoE): Yes

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 85%

System requirements

Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight dimensions

Width: 110 mm
Depth: 58 mm
Height: 110 mm
Weight: 201 g

Packaging data

Package width: 169 mm
Package depth: 169 mm
Package height: 112 mm
Package weight: 199 g

Sustainability

Compliance certificates: RoHS

Packaging content

Number of cameras: 1
Screws included: Yes
Quick installation guide: Yes
Resource CD: Yes

Technical details

Back light compensation method: Y
Iris: Yes
Number of video streams: 2

Logistics data

Harmonized System (HS) code: 85258900
Master (outer) case width: 350 mm
Master (outer) case length: 350 mm
Master (outer) case height: 342 mm
Master (outer) case gross weight: 5.7 kg
Products per master (outer) case: 12 pc(s)
