LevelOne DSK-8001 video surveillance kit

LevelOne DSK-8001. Connectivity technology: Wired, Surveillance camera form factor: Bullet, Camera interface: BNC. Channels quantity: 8 channels, Storage media type: HDD, Operating system installed: Linux Embedded. Ethernet interface type: Fast Ethernet. Power source type: DC, Camera power consumption (standby): 4 W, Recorder power consumption (typical): 8 W. Audio formats supported: G.711 A-law

The LevelOne 8-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10 C to 55 C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.

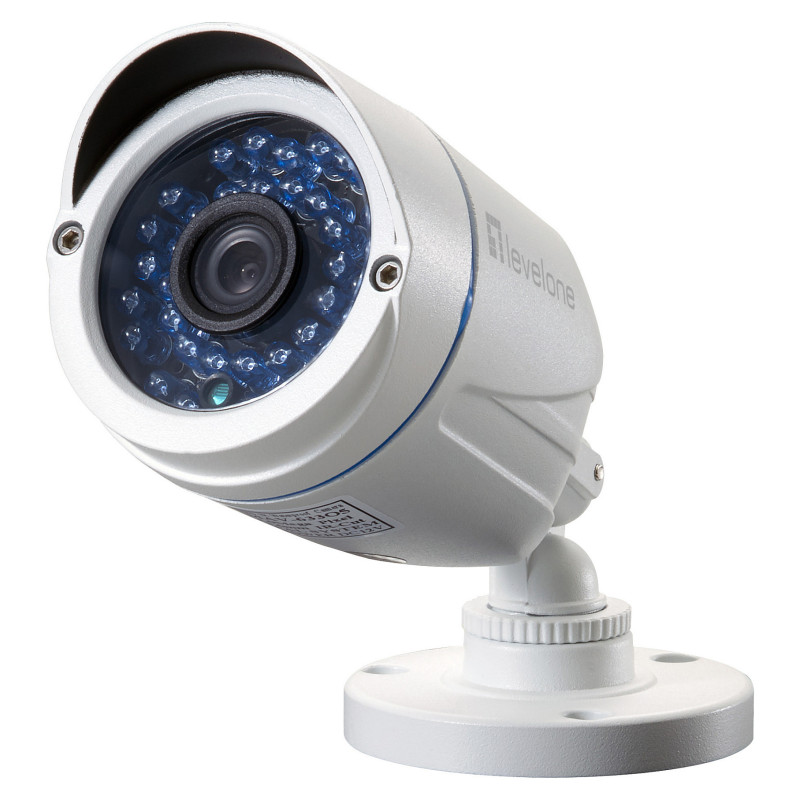

Camera

Connectivity technology: Wired
Feature: Camera included
Surveillance camera form factor: Bullet
Camera interface: BNC
Camera cable length: 18 m
Feature: Night mode
Placement supported: Indoor/outdoor
Number of cameras: 4
Night vision distance: 30 m
Sensor type: CMOS
Optical sensor size: 25.4 / 4 mm (1 / 4")
LED type: IR
Viewing angle: 65°
Camera shutter speed: 1/50 - 1/100000 s
International Protection (IP) code: IP66

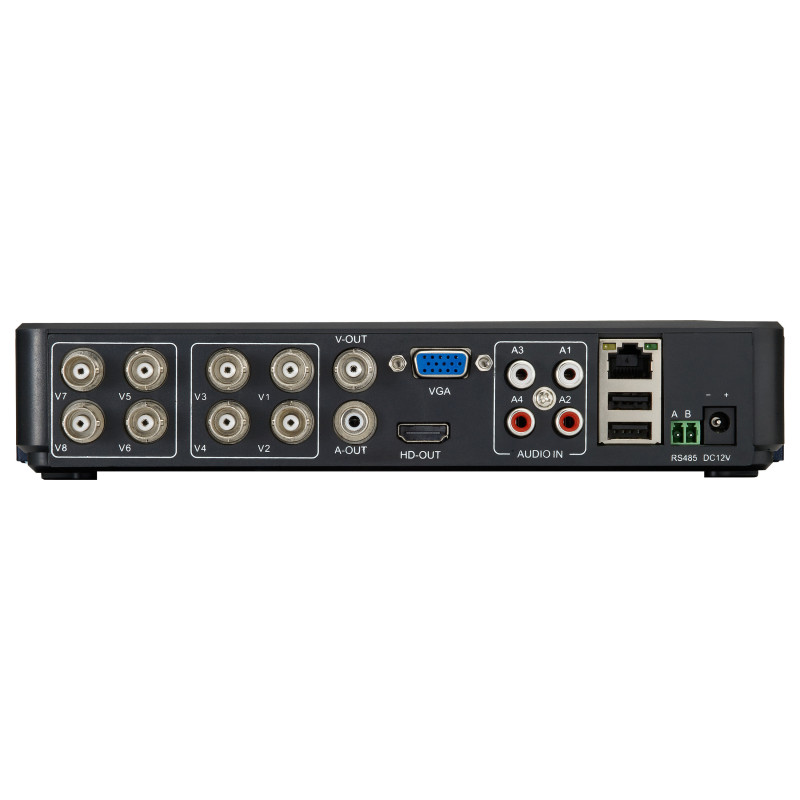

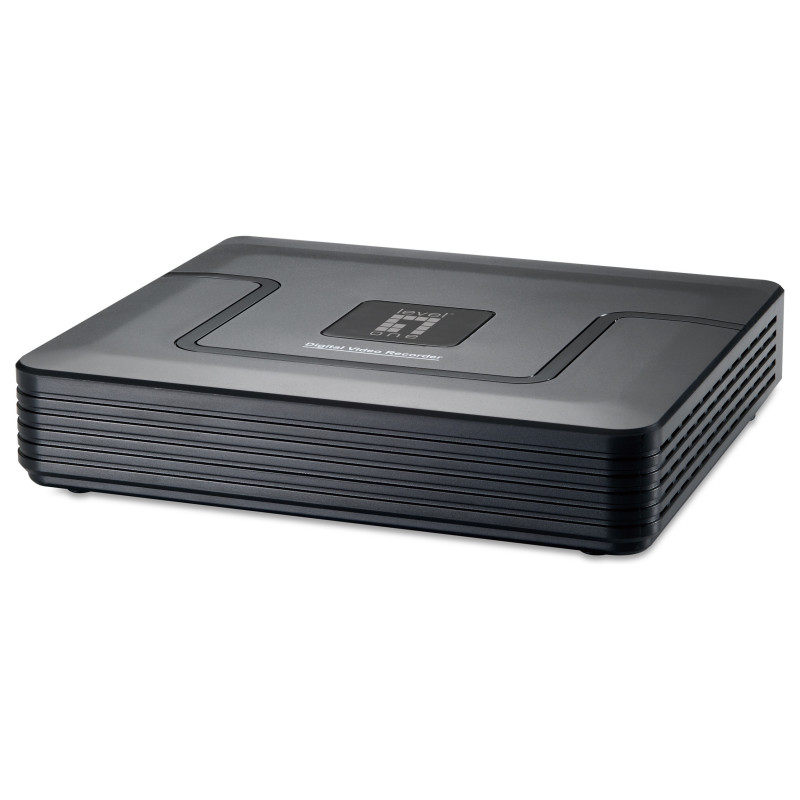

Recorder

Feature: Recorder included
Channels quantity: 8 channels
Storage media type: HDD
Operating system installed: Linux Embedded
BNC input ports: 8
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
HDD size: 3.5"
Number of HDDs supported: 1
HDD capacity: 6 TB
Supported network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS
Feature: DC-in jack
LED indicators: HDD, LAN, Power
Line inputs (RCA): 1
Line outputs (RCA): 1
Maximum HDD capacity: 6 TB
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Playback resolutions supported: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Power

Power source type: DC
DC output voltage: 12
Camera power consumption (standby): 4 W
Recorder power consumption (typical): 8 W

Audio

Audio formats supported: G.711 A-law

System requirements

Mobile operating systems supported: Android, iOS

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%

Technical details

Feature: Remote viewing
Video compression formats: H.264, MP4
Supported video modes: 720p
Feature: Web-based management
Country of origin: China
Product colour: Black, White
Pallet net height: 120 cm
Pallet net length: 80 cm
Pallet net width: 140 cm
Certification: CE

Weight & dimensions

Camera width: 6.4 cm
Camera depth: 16.5 cm
Camera height: 6.4 cm
Recorder width: 22 cm
Recorder depth: 22.2 cm
Recorder height: 4.5 cm
Width: 225 mm
Depth: 430 mm
Height: 221 mm

Packaging data

Package width: 374 mm
Package depth: 154 mm
Package height: 308 mm
Package weight: 4 kg

Packaging content

Feature: Power supply included
Feature: Manual
Cables included: DC
Package type: Box
Feature: Quick installation guide
Feature: Software CD
