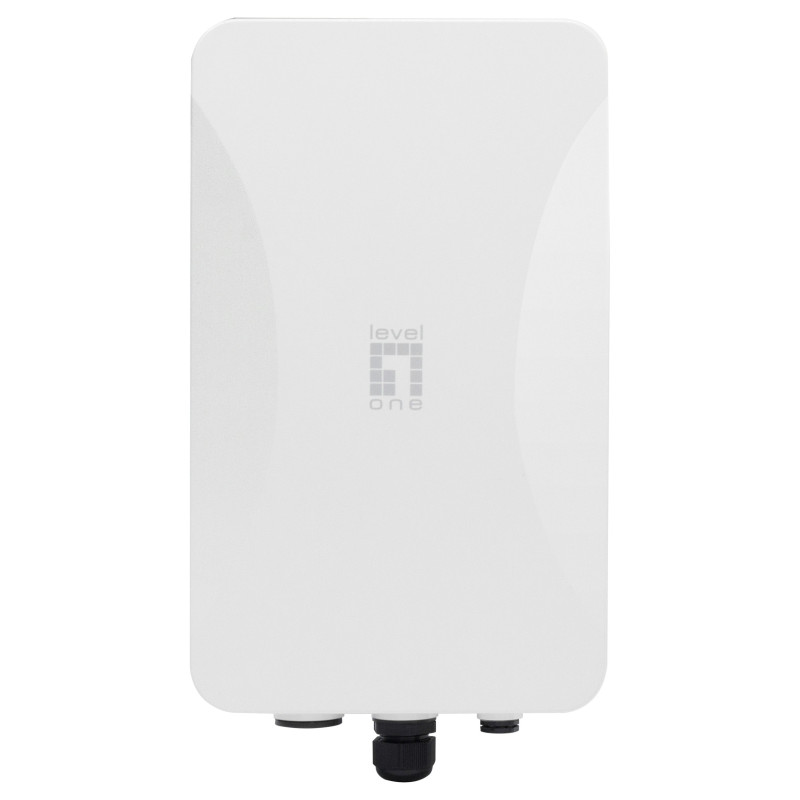

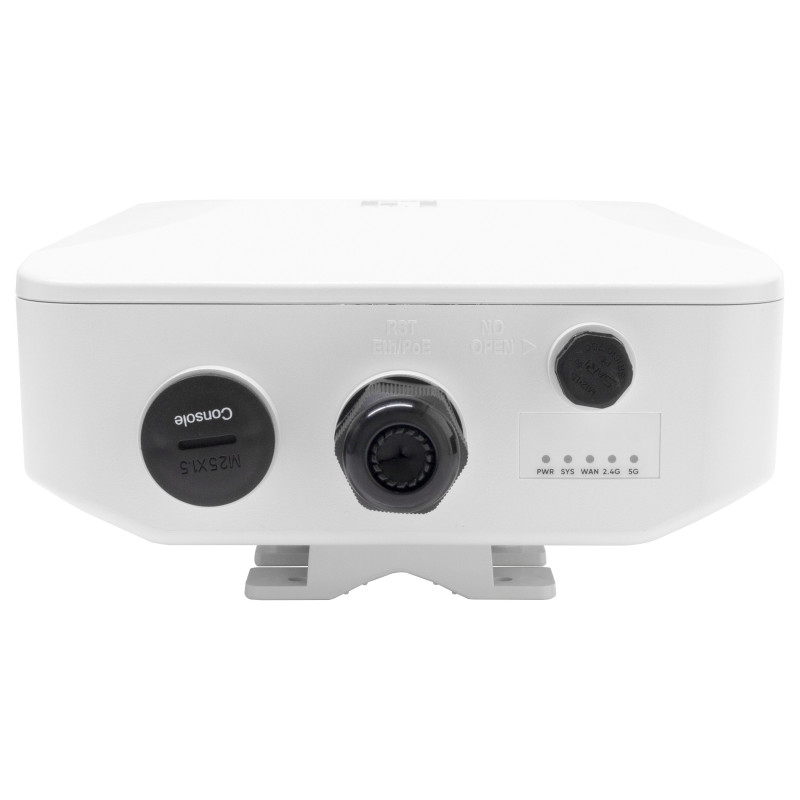

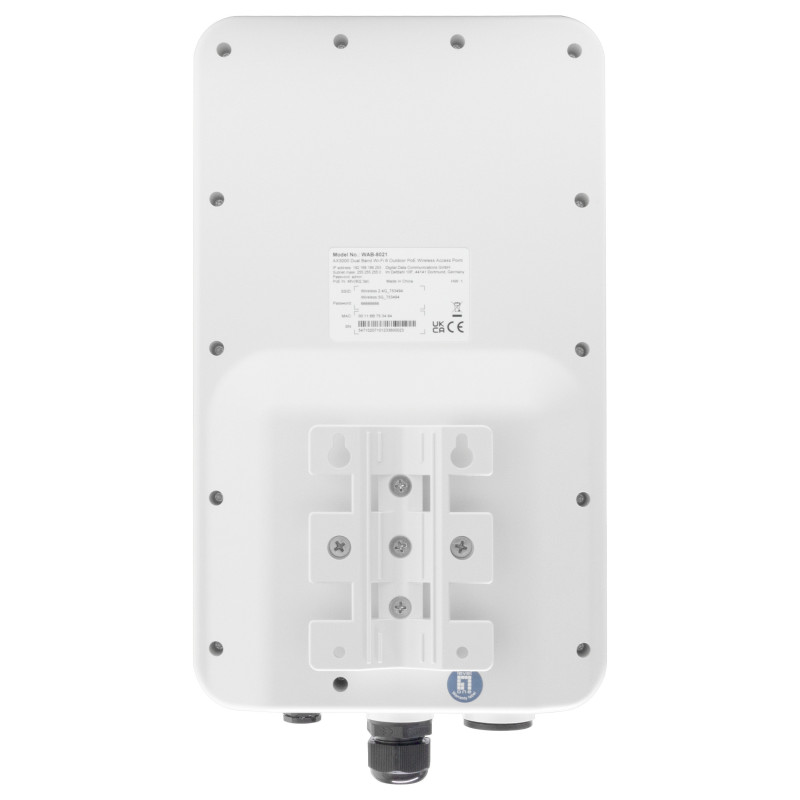

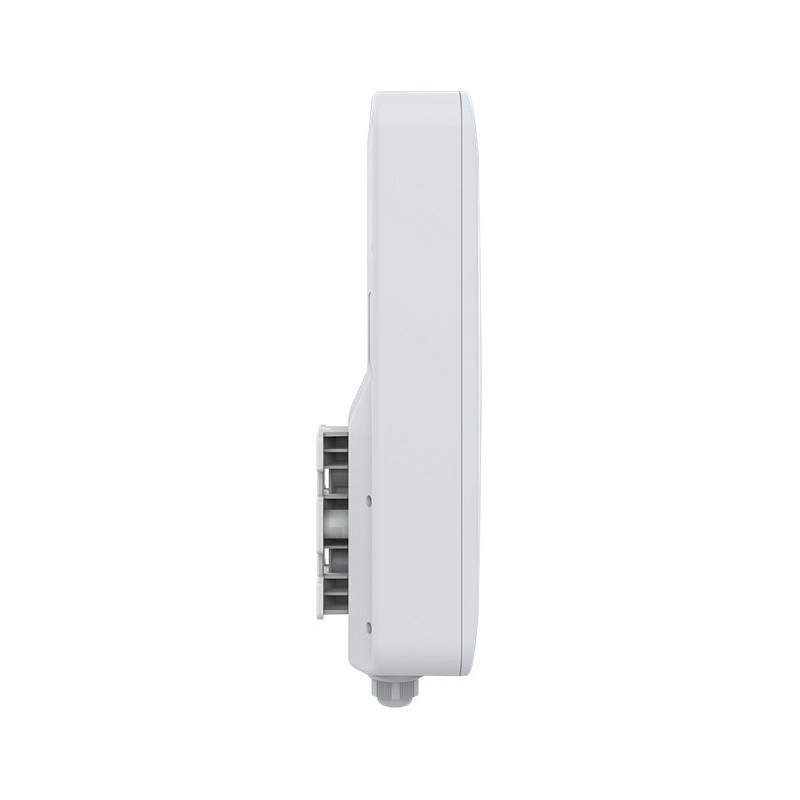

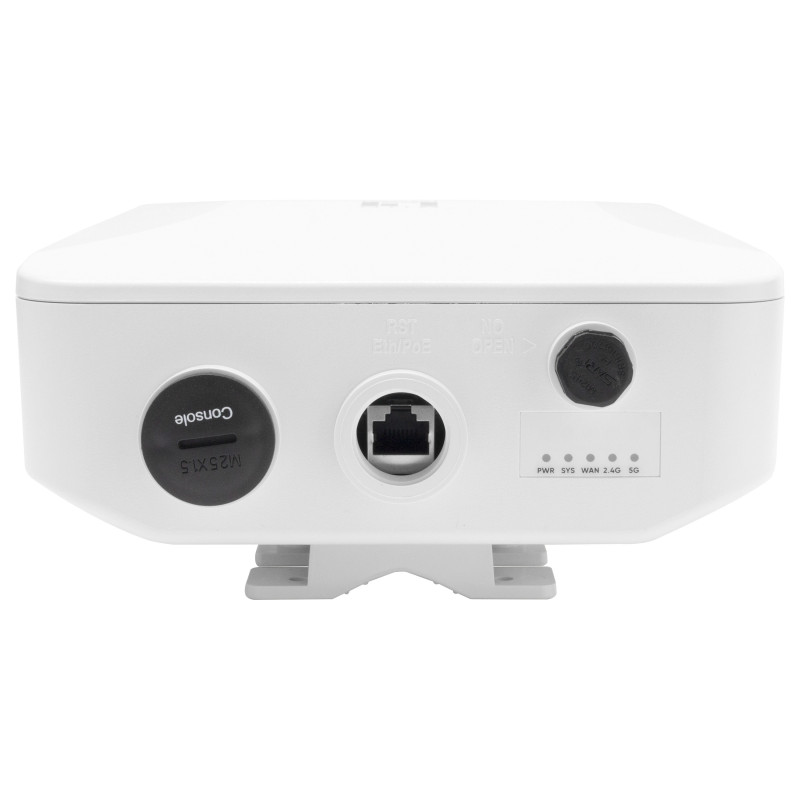

LevelOne AX3000

LevelOne AX3000 Dual Band Wi-Fi 6 Outdoor PoE Wireless Access Point, Omni-directional. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

The LevelOne WAB-8021 is a standalone, AX3000 Omni-directional outdoor dual-band Wi-Fi 6 PoE wireless access point that features Gigabit Ethernet ports and advanced 802.11ax Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 2976 Mbps(574Mbps in 2.4GHz/2401Mbps in 5GHz) and Omni-directional outdoor transmission distance of up to 100m.

The device runs on 2.4 and 5 GHz frequency, It also offers support for the new WPA3 encryption. Of course, the WAB-8021 is also equipped with PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP67 means the WAB-8021 is designed for outdoor deployments, and can withstand rain, humidity, dust and snow. A fast, versatile and secure access point for a wide variety of outdoor network requirements.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 3000 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2401 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Channels quantity: 165 channels
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Maximum outdoor range: 100 m

Security

Security algorithms: WPA2, WPA3
Number of SSID supported: 8

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Wi-Fi

Power

Feature: Power over Ethernet (PoE)
Power consumption (typical): 16 W

Design

Placement: Pole
Product colour: White
International Protection (IP) code: IP67
LED indicators: Power, Status, System

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional

Performance

Flash memory: 128 MB
Internal memory: 512 MB

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 230 mm
Depth: 107 mm
Height: 38 mm
Weight: 1.3 kg

Packaging data

Package width: 380 mm
Package depth: 230 mm
Package height: 107 mm
Package weight: 1.73 kg
Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Other features

Wireless standard: IEEE 802.11a/b/g/n/ac/ax

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -20 - 80 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Country of origin: China
