LANCOM YS-7154CF-B2F

LANCOM YS-7154CF-B2F. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. Full duplex. MAC address table: 32000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x. Power connector: AC-in jack. Rack mounting, Form factor: 1U

25G stackable fiber aggregation switch for campus networks

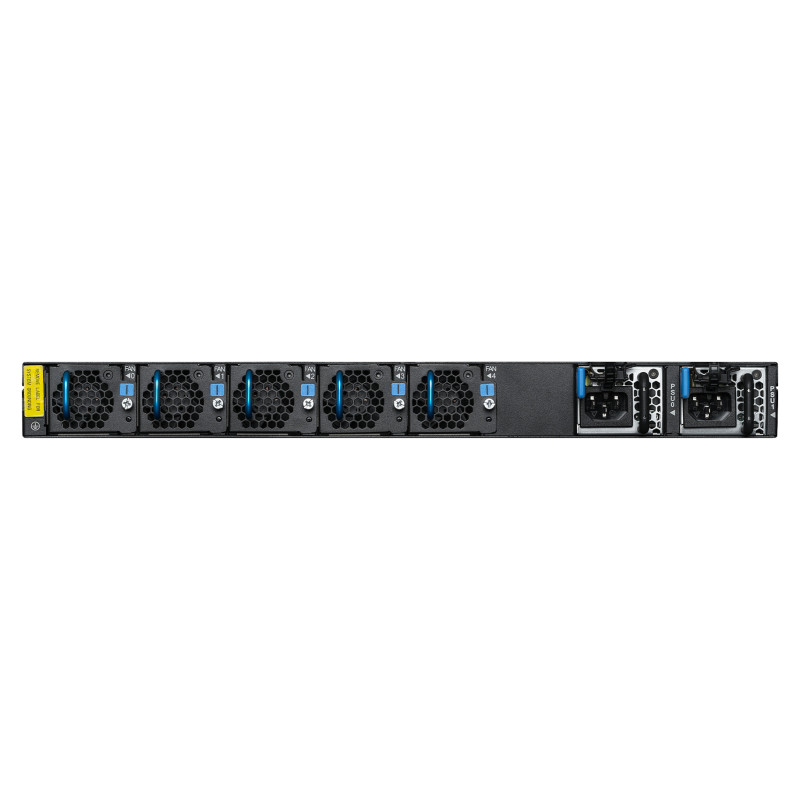

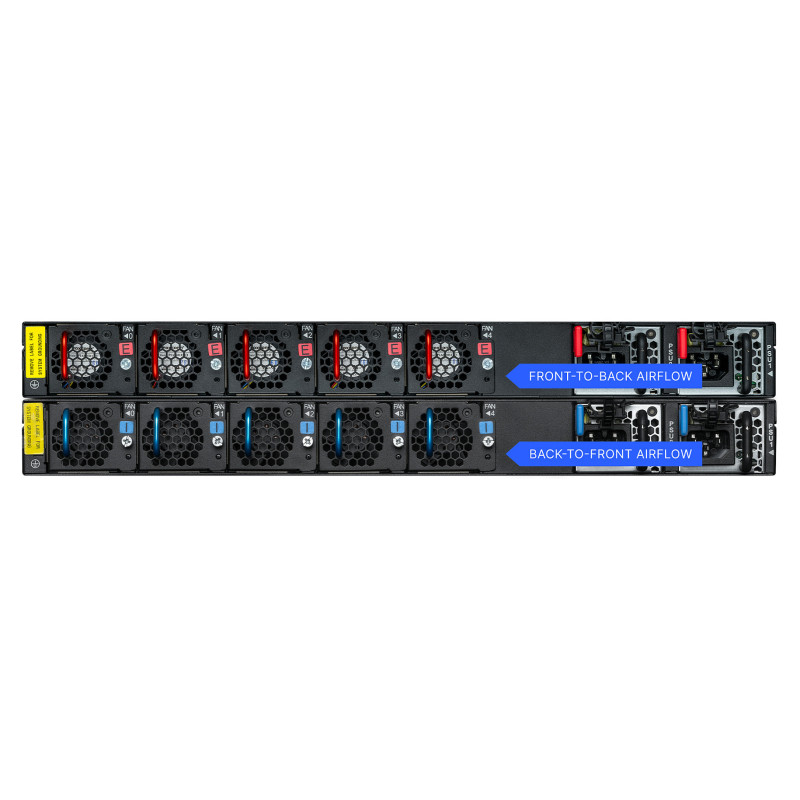

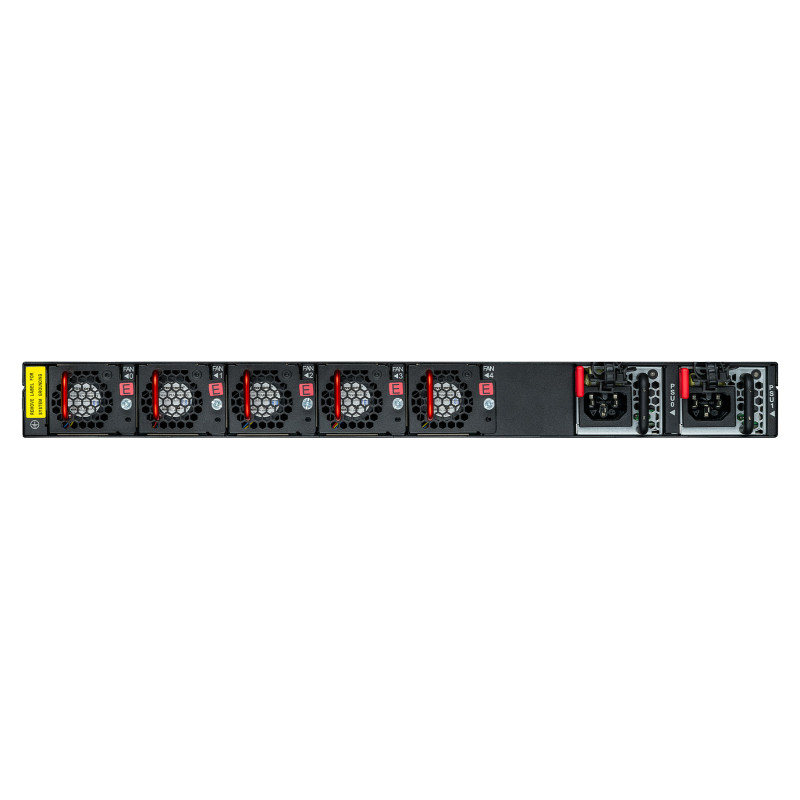

In data-intensive, distributed campus networks, the LANCOM YS-7154CF ensures the necessary performance and high availability of network resources. With 48x 25G SFP28 and 6x 100G QSFP28 ports, the switch offers maximum connection flexibility in mixed 1G-100G environments, providing a total of 3.6 Tbps switch capacity. Depending on the size of the installation, the LANCOM YS-7154CF can be integrated either as an aggregation switch (distribution base) between core and access switches (three-tier design) or as a core switch resp. "collapsed backbone" at the top level to the WAN (two-tier design) to create hierarchical switch infrastructures. Reliable, high-performance operation even in bandwidth-intensive networks is ensured by Virtual Port Channel (VPC) or stacking. Additional fail-safety is provided by two redundant power supply units, five hot-swappable fan modules, and a selectable cooling concept. Centralized network management with real-time monitoring of the device status is automated and location-independent via the LANCOM Management Cloud or using the industry-standard web GUI and CLI.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
MIB support: MIB II, Bridge MIB, Interface MIB, SMON MIB, IGMP MIB, IEEE 802.3 MAU MIB

Ports & interfaces

Console port: RJ-45
QSFP28 ports quantity: 6
SFP28 ports quantity: 48
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Private VLAN
Number of VLANs: 4093

Data transmission

Throughput: 2000 Gbit/s
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Static route
Number of static routes: 16000
Feature: Jumbo frames support
Jumbo frames: 12288
Packet buffer memory: 32 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
IGMP entries: 2800
Feature: IGMP proxy
Security algorithms: SNMP, SNMPv2
Feature: SSH/SSL support
Feature: Password protection
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Management protocols: SNMP
Feature: GARP VLAN Registration Protocol (GVRP)
Routing protocols: BGP4, OSPFv2, OSPFv3

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 5 fan(s)

Performance

Feature: Built-in processor
Processor frequency: 1600 MHz
Memory type: DDR4-SDRAM
Internal memory: 8192 MB
Noise level: 65 dB
Feature: Firmware upgradeable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 220 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 750 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 440 mm
Height: 43.8 mm
Weight: 8.7 kg

Packaging content

Feature: Manual

Packaging data

Package width: 540 mm
Package depth: 660 mm
Package height: 180 mm
Package weight: 8.7 kg

Logistics data

Customs product code (TARIC): 85176200
Country of origin: Taiwan
