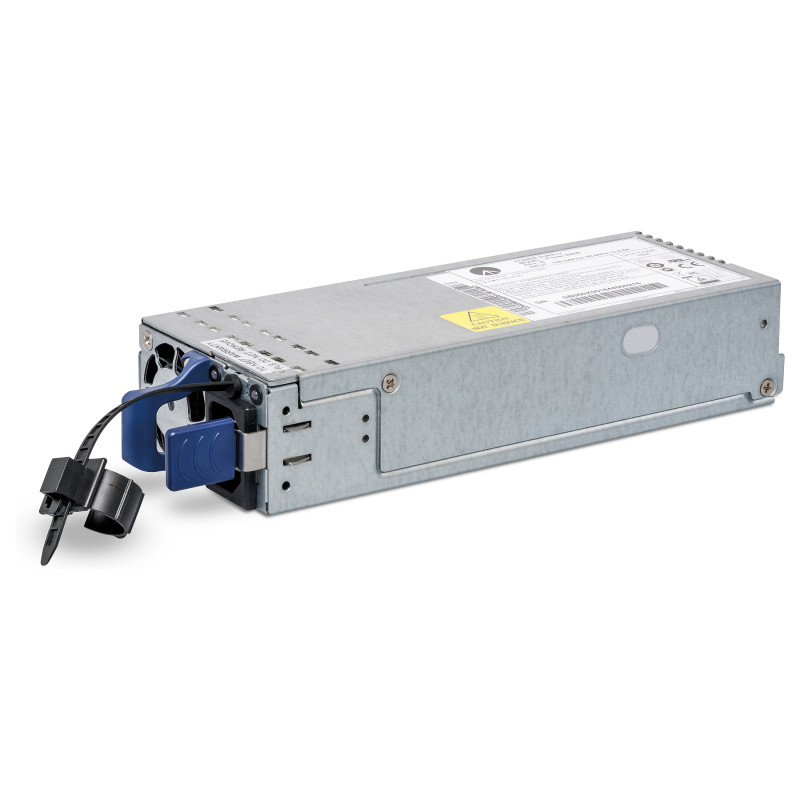

LANCOM SPSU-920 network switch component

LANCOM SPSU-920. Product type: Power supply, Product colour: Steel, Power protection features: Over current, Over voltage, Overheating. Total power: 920 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 74 mm, Depth: 220 mm, Height: 40 mm. Package weight: 1.3 kg. Country of origin: Taiwan
Hot-swappable power supply unit for selected LANCOM access switches
This modular power supply unit, as an optional extension of your LANCOM Switch is the ideal solution for business-critical network environments that require maximum reliability or a maximum PoE budget. Use of this PSU (Power Supply Unit) either creates a redundant power supply, with the possibility of changing the power supply unit during operation or doubles the PoE budget and thus the maximum supply of all PoE ports with up to 90 watts each.

Features

Product type: Power supply
Product colour: Steel
Internal: Yes
Power protection features: Over current, Over voltage, Overheating
Compatibility: XS-4554YUP, XS-4530YUP, GS-4554XUP, GS-4554XP, GS-4530XUP, GS-4530XP, XS-3550YUPGS-3652XUP, GS-3152XSP (EOS)

Power

Total power: 920 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 16.88 A
DC output voltage: 54.5 V

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -40 - 70 °C

Weight dimensions

Width: 74 mm
Depth: 220 mm
Height: 40 mm
Weight: 900 g

Packaging data

Package weight: 1.3 kg

Logistics data

Harmonized System (HS) code: 84733020
Country of origin: Taiwan
Customs product code (TARIC): 85044030
