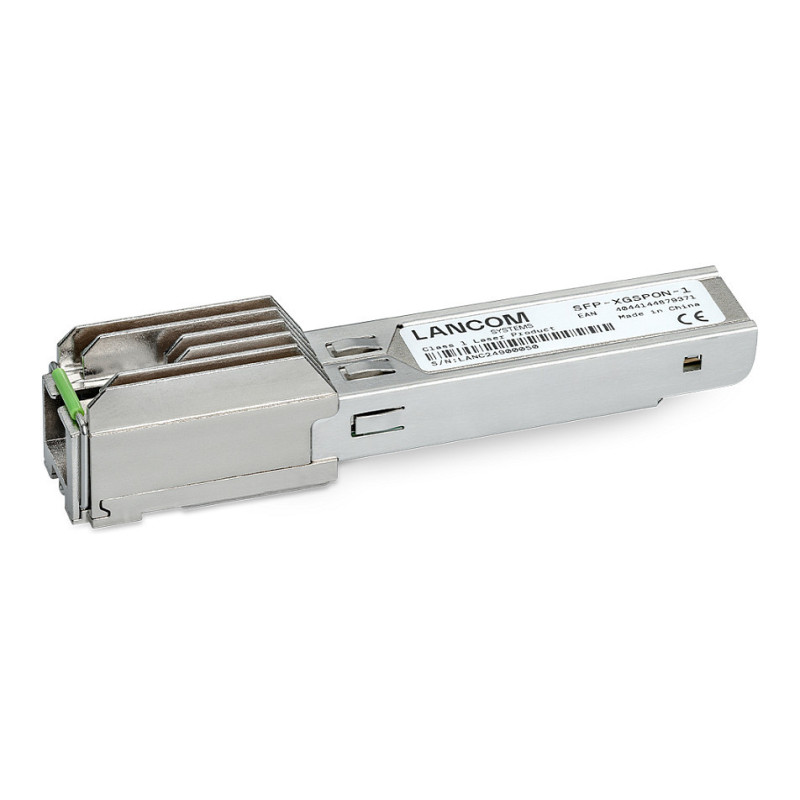

LANCOM SFP-XGSPON-1 network transceiver module

LANCOM SFP-XGSPON-1. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP. Product colour: Stainless steel, Brand compatibility: Lancom, Compatible products: R903, 1800 series, 1900 series, WLC-60, 2100EF, ISG-5000, ISG-8000, WLC-2000. Power consumption (typical): 2.1 W. Quantity per pack: 1 pc(s), Packaging content: 3m LC/APC to SC/APC cable. Cable length: 3 m
Direct high-speed connection to passive 10G fiber optic lines (FFTH)
Designed specifically for 10 Gigabit-capable passive optical networks (XGS-PON) directly into the home (fiber to the home / FTTH), the SFP transceiver module LANCOM SFP-XGSPON-1 offers up to 10 Gbps both downstream and upstream. By simply plugging it into your LANCOM gateway, you can establish a direct fiber-optic connection to an XGS-PON network. This eliminates the time-consuming installation of a separate provider modem.
Advantages
Future-proof use of XGS-PON technology
For data transmission via fiber to the home (FTTH), XGS-PON technology represents the further development of the GPON standard. XGS-PON offers symmetrical speeds of up to 10 Gbps both downstream and upstream, which far exceeds the capacity of conventional GPON networks.
The XGS-PON module LANCOM SFP-XGSPON-1 is backward compatible with LANCOM gateways with 1G SFP interfaces and still offers up to 1 Gbps. This allows network operators to gradually modernize their infrastructure without interrupting existing services. A seamless upgrade with existing LANCOM devices to XGS-PON technology is therefore possible with the LANCOM SFP-XGSPON-1.*
Direct connection to XGS-PON FTTH networks without separate provider modem
The SFP transceiver module LANCOM SFP-XGSPON-1 handles the necessary conversion of the incoming data signals. This eliminates the need for an additional fiber-optic modem between the fiber-optic connection in the building and the gateway. This eliminates the need for cabling and installation of the modem as well as the installation of an additional power supply.
* The compatibility of the LANCOM SFP-XGSPON-1 has been tested with the support of Deutsche Telekom for operation on corresponding FTTH connections with 2 Gbps.
Easy integration of the LANCOM SFP-XGSPON-1
The LANCOM SFP-XGSPON-1 module is easily connected via the 1G SFP or 10G SFP+ ports of the LANCOM 1800, 1900, and ISG series as well as the LANCOM 2100EF and LANCOM WLC-2000.
Note: To use the LANCOM SFP-XGSPON-1, at least LCOS version LCOS 10.80 RU9 is required on the device side. Connecting the module to 1G SFP ports limits the maximum data transmission to 1 Gbps accordingly.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: SC/APC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: PON
Tx wavelength (max): 1270 nm
Rx wavelength (min): 1575 nm
Rx wavelength (max): 1580 nm
Tx power (min): 4 dBmW
Tx power (max): 9 dBmW

Features

Product colour: Stainless steel
Brand compatibility: Lancom
Compatible products: R903, 1800 series, 1900 series, WLC-60, 2100EF, ISG-5000, ISG-8000, WLC-2000

Power

Power consumption (typical): 2.1 W

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Packaging content

Quantity per pack: 1 pc(s)
Packaging content: 3m LC/APC to SC/APC cable

Other features

Cable length: 3 m

Logistics data

Customs product code (TARIC): 85177000
Country of origin: China
