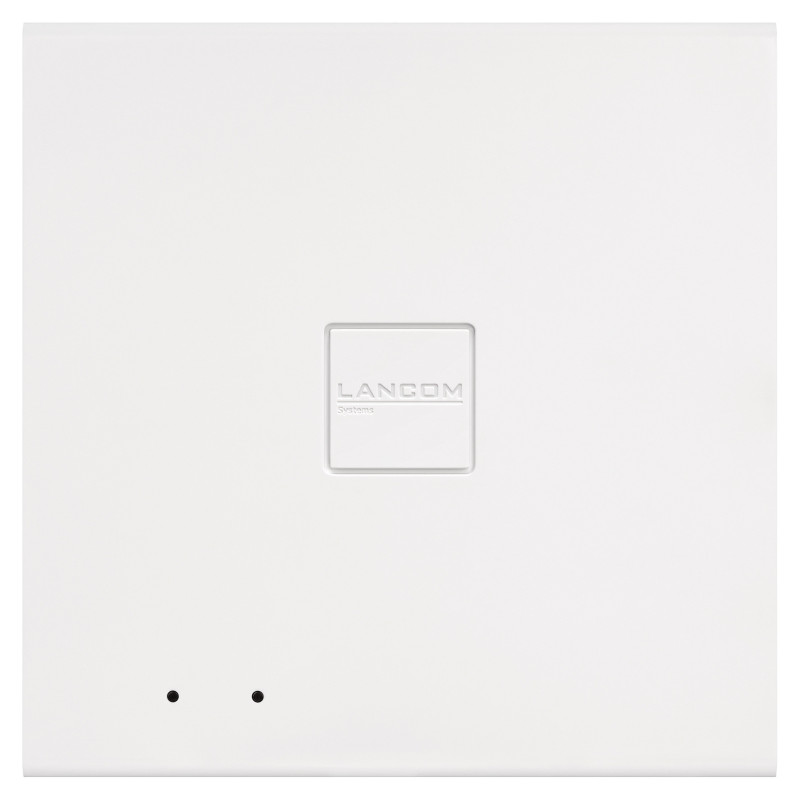

LANCOM LX-6200 (EU)

LANCOM LX-6200 (EU). 2.4 GHz, 5 GHz. Security algorithms: EAP-TLS, EAP-TTLS. Ethernet LAN data rates: 100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 17.3 W
Fast Wi-Fi 6 for small and medium user densities
With the LANCOM LX-6200, you get high-throughput performance from the latest Wi-Fi 6 generation. This makes it the ideal device wherever the fastest Wi-Fi is needed for a small to medium-sized number of users, such as in hotels, smaller offices, medical practices, or branch offices. The integrated USB interface (2.0) also provides the basis for integrating IoT wireless systems into existing WLAN infrastructures.
Advantages
Dual concurrent Wi-Fi with an aggregated datarate of up to 1,775 Mbps
The LANCOM LX-6200 offers the Wi-Fi 6 standard (IEEE 802.11ax) for fast wireless LAN for clients in the 2.4- and 5-GHz bands. Wi-Fi 6 technology achieves transmission rates of up to 1,200 Mbps at 5 GHz and simultaneously up to 575 Mbps at 2.4 GHz.
2x2 Multi-User MIMO for downlinks and uplinks
Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LX-6200 between several different clients, rather than one after the other as was formerly the case. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced. With Wi-Fi 6, MU-MIMO is not, as before, only usable in the downlink but now also in the uplink as well.
Professional IoT support via BLE and USB
With the LANCOM LX-6200, you can easily dive into the world of the Internet-of-Things (IoT). Support for Bluetooth Low Energy (5.1) and USB 2.0 opens up many possibilities for you to communicate with modern WLAN sensors in devices or objects and use innovative applications such as asset tracking or digital signage.. In this way, you can easily operate solutions for digital signage, electronic shelf labels, and industrial Internet of things applications via the optionally available LANCOM Wireless ePaper USB.
Managed via LANCOM Management Cloud, WLAN controller, or stand-alone
The LANCOM LX-6200 offers the greatest possible versatility in operation: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology. It is also able to operate with central management by LANCOM WLAN controller or even in stand-alone mode.
Wi-Fi security standard WPA3
WPA3, the successor of WPA2, offers important upgrades and security features for small ("WPA3-Personal") and large networks ("WPA3-Enterprise").

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Ethernet LAN data rates: 100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11v
Channels quantity: 16 channels
MIMO: Yes
MIMO type: Multi User MIMO
Fast roaming: Yes
VLAN support: Yes
Number of VLAN IDs: 4096
Maximal-Ratio Combining (MRC): Yes

Security

Security algorithms: EAP-TLS, EAP-TTLS

Management features

Web-based management: Yes
Syslog: Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
AC input voltage: 230 V
DC voltage range: 12 V
Power consumption (max): 17.3 W

Design

Placement: Ceiling, Wall
Product colour: White
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna features: Integrated antenna
Antennas quantity: 2

Weight dimensions

Width: 205 mm
Depth: 205 mm
Height: 42 mm

Packaging data

Package weight: 1.72 kg

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): 0 - 40 °C

Logistics data

Customs product code (TARIC): 85176200
Country of origin: Germany
