LANCOM GS-3652X

LANCOM GS-3652X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 212 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

Multi-Gigabit access switch for large-scale networking scenarios
Wherever a large number of network components are used, this multi-Gigabit access switch is the ideal product. With 12x 2.5 Gigabit Ethernet ports, for example, it provides the necessary high-performance basis for the operation of Wi-Fi 6 access points and other network components with high performance requirements. Additional 36x Gigabit Ethernet ports, 4x SFP+ ports, and basic Layer 3 features like static routing and DHCP server make this device a networking pro for large networks.

Highlights

High performance on 52 ports
The LANCOM GS-3652X is equipped with 12 2.5 Gigabit Ethernet ports, 36 Gigabit Ethernet ports, and 4 SFP+ ports supporting transfer rates of up to 10 Gbps In addition, with a data throughput of 212 Gbps on the backplane, it offers full performance even under heavy load. This makes the access switch a powerful foundation for large network infrastructures in all industries and areas of application.

A high-performance basis for Wi-Fi 6
Thanks to 12 high-performance 2.5 Gigabit Ethernet ports, the LANCOM GS-3652X is the ideal LAN-side basis for integrating the Wi-Fi 6 WLAN standard into modern infrastructures. The increased data rates when using Wi-Fi 6 require 2.5 Gigabit Ethernet, as the required performance demands exceed those of a simple Gigabit Ethernet port. This switch enables the operation of up to 12 Wi-Fi 6 access points or other network components with high-performance requirements.

Advantages

Static routing for unburdened networks
The LANCOM GS-3652X supports the basic Layer 3 feature static routing, shifting certain routing tasks from the router to the switch. The predefinition of network routes through one or more network segments enables faster data exchange, especially in the case of high internal data traffic, and leads to a relief of the router. Freed-up router capacity is then additionally available for handling external data traffic. This increases the efficiency of the entire network.

Cloud-managed LAN
With the LANCOM Management Cloud, the LANCOM GS-3652X offers fast and easy network integration as well as automatic configuration assignment. Cloud-managed LAN replaces individual device configuration with holistic network orchestration and enables automatic VLAN assignment to the desired switch ports. This allows all configurations to be rolled out at the click of a mouse, making even more complex networking scenarios easy to administer.

DHCP server functionality
As a DHCP server, the switch can independently and automatically assign IP addresses to clients. The LANCOM GS-3652X supports this basic Layer 3 function and thus takes over the IP management of the connected network.

Configurable access control
The LANCOM GS-3652X ensures that no unauthorized clients gain access to the network. This is made possible by secure access control on all ports in accordance with IEEE 802.1X (port-based, single-, multi-, and MAC-based).

Secure remote management
Thanks to secure communication protocols such as SSH, SSL, and SNMPv3, the LANCOM GS-3652X enables professional remote management of the network. In addition, the switch supports the TACACS+ protocol for authentication, authorization, and accounting. An optimal solution that promises maximum security, especially for the management and monitoring of multi-site networks.

IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM GS-3652X can be used in pure IPv4, pure IPv6, or mixed networks. Numerous applications such as SSL, SSH, Telnet, or TFTP can thus also be run over IPv6 networks. IPv6 features such as stateless autoconfiguration, neighbor device discovery, and MLD snooping round out the IPv6 features.

Management features

Switch type: Managed
Switch layer: L3
Feature: Web-based management
Feature: Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity: 36
2.5G Ethernet (copper) ports quantity: 12
SFP+ module slots quantity: 4
Console port: RJ-45

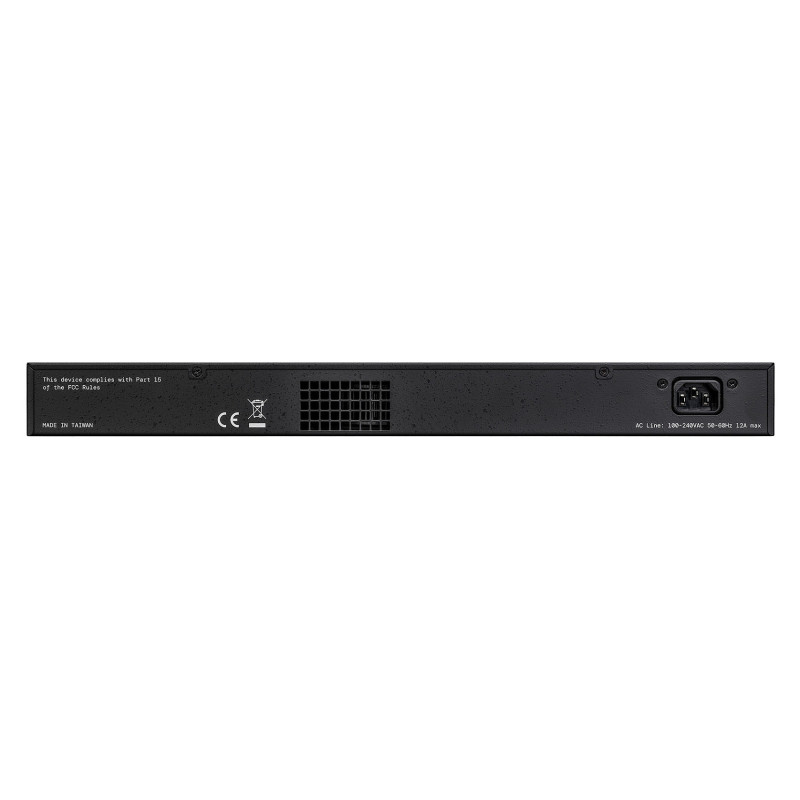

Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: IP subnet-based VLAN, MAC address-based VLAN, MVRP, Port-based VLAN, Private VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Number of VLANs: 4096

Data transmission

Switching capacity: 212 Gbit/s
Throughput: 130 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Static route
Number of static routes: 128
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4 MB

Security

DHCP features: DHCP Option 66, DHCP Option 67, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Feature: SSH/SSL support
Authentication: Guest VLAN
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 1024
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
Feature: IP Source Guard (IPSG)

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
Feature: Reset button
Number of fans: 1 fan(s)

Performance

Noise level: 45 dB
Feature: Firmware upgradeable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 55 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 188 BTU/h

Weight & dimensions

Width: 442 mm
Depth: 300 mm
Height: 44 mm
Weight: 4.1 kg

Packaging content

Cables included: AC, Serial
Feature: Quick start guide

Packaging data

Feature: Mounting brackets included
Package width: 470 mm
Package depth: 534 mm
Package height: 100 mm
Package weight: 5.52 kg

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Logistics data

Customs product code (TARIC): 85176200
Country of origin: Taiwan
