LANCOM GS-3510XP

LANCOM GS-3510XP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 68 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Perfect for small offices: multi-Gigabit access switch with PoE
The LANCOM GS-3510XP is a reliable basis in smaller network infrastructures for integrating components with high performance requirements, such as Wi-Fi 6 access points. Equipped with 4x 2.5G and 4x 1G Ethernet ports as well as 2x 10G SFP+ uplink ports, it networks up to 10 devices optionally with Power over Ethernet (130-watt PoE budget) for installations without additional power supplies or power cabling. With the Zero-dB design and therefore silent design, it is predestined for use in small and home offices or at the edge of a network in larger installations. Basic layer-3 functions such as static routing and a DHCP server offer intelligent management with numerous security functions.

Advantages

High performance on 10 ports
The LANCOM GS-3510XP is equipped with 4x 2.5G ports, 4x 1G Ethernet ports and 2x 10G SFP+ uplink ports. With a data throughput of 68 Gbps on the backplane, it offers full performance even under load. This switch is a high-performance basis for modern network infrastructures in small and home offices.

A high-performance basis for Wi-Fi 6
Thanks to 4 high-performance 2.5-Gigabit Ethernet ports, the LANCOM GS-3510XP is the ideal LAN-side basis for integrating the new Wi-Fi 6 standard into modern infrastructures. The increased data rates when using Wi-Fi 6 requires 2.5-Gigabit Ethernet, as the potential performance requirements exceed those of a 1-Gigabit Ethernet port. Given a sufficient PoE supply, this switch enables the operation of up to 4 Wi-Fi 6 access points or other network components with high performance requirements—without additional electrical installations.

Centralized power supply without additional electrical installations
The LANCOM GS-3510XP is a high-performance PoE switch that directly powers PoE devices connected to it; there is no need for additional power supply units or cabling. It supports the two Power-over-Ethernet standards, IEEE 802.3af and IEEE 802.3at (PoE+). It has high power-output reserves and an PoE budget of 130 watts makes it an effective power supply for PoE devices, even with its Zero-dB design with a cooling function starting at 40°C ambient temperatur.

Static routing for fast data exchange
The LANCOM GS-3510XP supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.

DHCP server functionality
As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3510XP supports this basic layer-3 function and thus takes over the IP management of the connected network.

Configurable access control
The LANCOM GS-3510XP excludes rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single-based, multi-based, and MAC-based).

Secure remote management
Secure communication protocols such as SSH, SSL and SNMPv3 make the LANCOM GS-3510XP ideal for professional remote network management. The switch also support the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

SD-LAN - days become minutes
The LANCOM GS-3510XP offers fast and easy network integration and automatic configuration assignment with the LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configurations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.

IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM GS-3510XP operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detection, and MLD snooping.

Management features

Switch type: Managed
Switch layer: L2
Feature: Web-based management
Feature: Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity: 4
2.5G Ethernet (copper) ports quantity: 4
SFP+ module slots quantity: 2
Console port: RJ-45

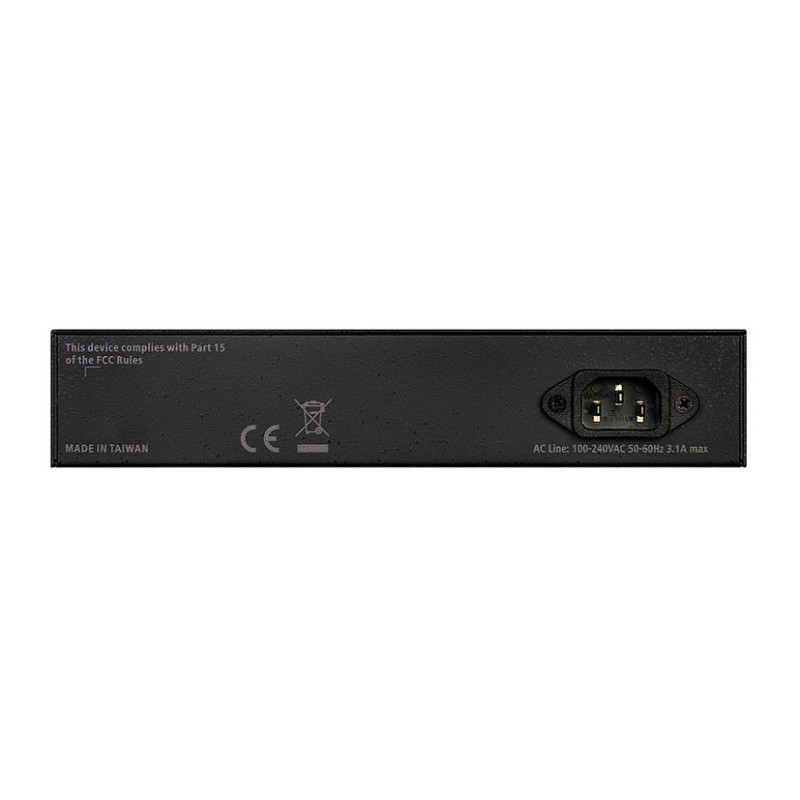

Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, MVRP, Port-based VLAN, Private VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs: 4093

Data transmission

Switching capacity: 68 Gbit/s
Throughput: 51 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Static route
Number of static routes: 128
Feature: Jumbo frames support
Jumbo frames: 10240

Security

DHCP features: DHCP Option 66, DHCP Option 67, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Feature: SSH/SSL support
Authentication: Guest VLAN
Authentication type: IEEE 802.1x, RADIUS, TACACS+

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
Feature: IP Source Guard (IPSG)

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
Number of fans: 1 fan(s)

Performance

Feature: Firmware upgradeable
Feature: Fanless

Power

Power source: AC/PoE
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 145 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 130 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 51 BTU/h

Weight & dimensions

Width: 220 mm
Depth: 242 mm
Height: 44 mm
Weight: 2.35 kg

Packaging content

Cables included: AC, Serial
Feature: Quick start guide

Packaging data

Feature: Mounting brackets included
Package width: 470 mm
Package depth: 534 mm
Package height: 100 mm
Package weight: 2.96 kg

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Logistics data

Customs product code (TARIC): 85176200
Country of origin: Taiwan
Harmonized System (HS) code: 85176990
