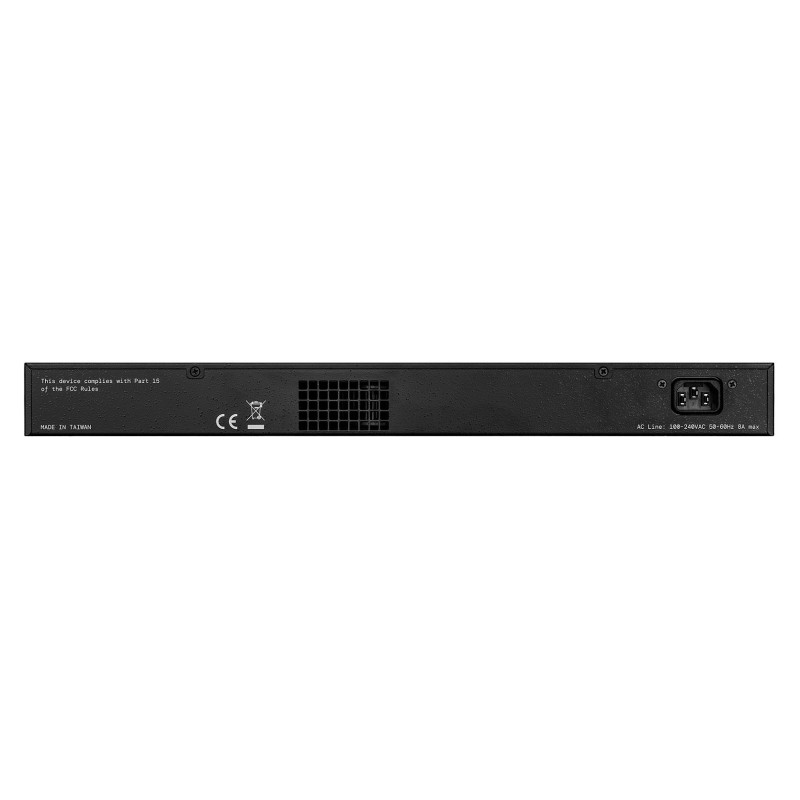

LANCOM GS-3252P

LANCOM GS-3252P. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Access switch with PoE for cost-effective networking
For cost-effective networking of less data-intensive end devices such as IP phones, printers, or PCs, the LANCOM GS-3252P fully managed access switch is ideal. Equipped with PoE+ support on 36 of the 48 Gigabit Ethernet ports, 4 SFP+ ports, and basic layer-3 functions such as static routing and DHCP, this switch offers intelligent management and numerous security features. Orchestrated from the LANCOM Management Cloud, it is configured efficiently and automatically.

Performance and cost optimization on 52 ports
The LANCOM GS-3252P is equipped with 48 Gigabit Ethernet ports and 4 SFP+ ports. With a data throughput of 176 Gbps on the backplane, it offers full performance even at high workloads. The switch thus forms the basis for modern network infrastructures with a large number of end devices with moderate data throughput, such as printers or IP telephones, which need to be integrated.

Central power supply without additional electrical installation
As a high-performance PoE switch, the LANCOM GS-3252P supplies connected PoE end devices without the need for additional power supplies or power cabling. It supports the Power over Ethernet standards IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) on 36 Ports. With a total PoE power of 370 watts, it is thus ideal for efficient power supply of PoE end devices with moderate power requirements.

Advantages

Static routing for fast data exchange
The LANCOM GS-3252P suports the basic layer-3 function of static routing, shifting certain routing tasks from the router to the switch. The predefinition of network routes through one or more network segments enables faster data exchange, especially in the case of high internal data traffic, and reduces the load on the router. Freed-up router capacity is then additionally available for handling external data traffic. This increases the efficiency of the entire network.

Cloud-managed LAN
The LANCOM Management Cloud opens the way to state-of-the-art switch management: Cloud-managed LAN. The LMC orchestrates the port profiles of all switches and automatically assigns the necessary network configuration, such as VLANs. In this way, all switch configurations are coordinated across sites, taking into account the network architecture, and rolled out or updated simultaneously at the click of a mouse.

DHCP server functionality
As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3252P supports this basic layer-3 function and thus takes over the IP management of the connected network.

Configurable access control
The LANCOM GS-3252P ensures that no unauthorized clients gain access to the network. This is made possible by secure access control on all ports according to IEEE 802.1X (port-based, single-, multi-, and MAC-based).

Secure remote management
Thanks to secure communication protocols such as SSH, SSL, and SNMPv3, the LANCOM GS-3252P enables professional remote management of the network. In addition, the switch supports the TACACS+ protocol for authentication, authorization, and accounting. An optimal solution that promises maximum security, especially for the management and monitoring of multi-site networks.

IPv6 and IPv4 support
Thanks to its dual-stack implementation, the LANCOM GS-3252P can be used in IPv4-only, IPv6-only, or mixed networks. Numerous applications such as SSL, SSH, Telnet, or TFTP can also be run over IPv6 networks. IPv6 features such as stateless autoconfiguration, neighbor device discovery, and MLD snooping comprise the IPv6 features.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 4
Console port: RJ-45
Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: IP subnet-based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4093

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 77 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Static route
Number of static routes: 128
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4 MB

Security

DHCP features: DHCP Option 66, DHCP Option 67, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Feature: SSH/SSL support
Authentication type: IEEE 802.1x, RADIUS, TACACS+

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
Feature: IP Source Guard (IPSG)

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
Feature: Reset button
Number of fans: 1 fan(s)

Performance

Noise level: 40 dB
Feature: Firmware upgradeable

Power

Power source: AC/PoE
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 460 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 36
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 310 BTU/h

Weight & dimensions

Width: 442 mm
Depth: 375 mm
Height: 44 mm
Weight: 5.5 kg

Packaging content

Cables included: AC, Serial
Feature: Quick start guide

Packaging data

Feature: Mounting brackets included

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Logistics data

Customs product code (TARIC): 85176200
Country of origin: Taiwan
