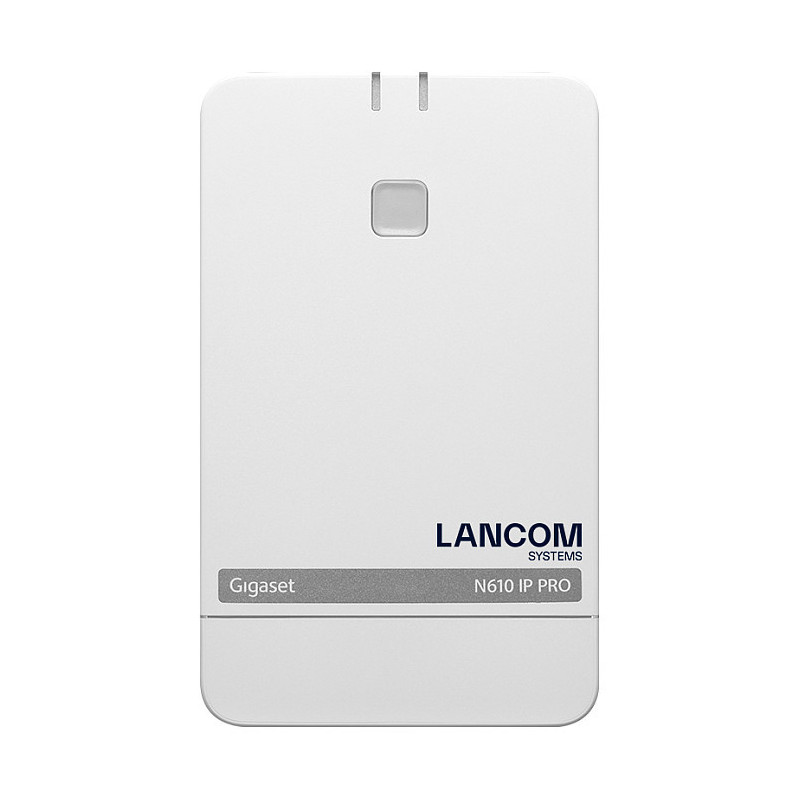

LANCOM DECT N610 IP (EU) DECT base station

LANCOM DECT N610 IP (EU). Frequency range: 1.88 - 1.9 GHz, Maximum range: 300 m, Voice codecs: G.711, G.722, G.729. Ethernet LAN data rate supported (max): 100 Mbit/s. Product colour: White. Input voltage: 230 V, Output voltage: 12 V, Output current: 1000 A. Dimensions (WxDxH): 110 x 180 x 42 mm, Weight: 220 g

Professional DECT base station
The LANCOM DECT N610 IP base station is the ideal solution for small and medium-sized enterprises to integrate DECT handsets. Once connected to LANCOM SD-WAN VoIP gateways, setup and configuration are automatic. The base station registers up to 8 DECT handsets and assigns them their individual phone numbers. The LANCOM DECT N610 IP combines wireless telephony with HD voice quality.

Easy network installation
Fitting seamlessly into the overall solution, the LANCOM DECT N610 IP is the ideal DECT base station for telephony infrastructures. LANCOM SD-WAN VoIP gateways support the operation of ISDN, analog, and VoIP devices in parallel with DECT devices.

Auto-provisioning via the base station
The LANCOM DECT N610 IP is an easy-to-use and time-saving solution for the setup and configuration of DECT handsets. The base station connects directly to the Ethernet port of the LANCOM SD-WAN VoIP gateway. The Voice Call Manager in the router recognizes the base station and enables the central management of the mobile handsets connected to it. DECT users can be conveniently registered with the base station via a confuguration wizard.

Use up to 8 DECT handsets
Once connected to a LANCOM SD-WAN VoIP gateway, the LANCOM DECT N610 IP supports up to 8 DECT handsets and assigns individual phone numbers to them.

8 calls in parallel
The LANCOM DECT N610 IP supports up to 8 calls in parallel, which makes it ideal for versatile communication in small and medium-sized enterprises.

Telephony with the highest voice quality
If all of the participating networks and devices support HD voice, the Voice Call Manager in the LANCOM SD-WAN VoIP gateway delivers excellent quality of speech via the LANCOM DECT N610 IP. HD Voice provides an improved audible presence for all of the participants who use DECT.

Powered by PoE or power supply unit
By supporting Power over Ethernet (PoE), the LANCOM DECT N610 IP operates at a LANCOM PoE switch even at long distances away from the nearest power outlet. The base station can be freely positioned to supply the best possible DECT coverage. Alternatively, a power supply unit can be used.

Performance

Number of handsets supported (max): 8
Frequency range: 1.88 - 1.9 GHz
Maximum range: 300 m
Voice codecs: G.711, G.722, G.729
Feature: Quality of Service (QoS) support

Ports & interfaces

Feature: Ethernet LAN
Ethernet LAN data rate supported (max): 100 Mbit/s

Design

Product colour: White
Feature: Wall mountable
LED indicators: Yes

Power

Input voltage: 230 V
Output voltage: 12 V
Output current: 1000 A

Operational conditions

Operating temperature (T-T): 5 - 45 °C
Operating relative humidity (H-H): 20 - 75%

Weight & dimensions

Dimensions (WxDxH): 110 x 180 x 42 mm
Weight: 220 g

Logistics data

Country of origin: Germany
Customs product code (TARIC): 85176200
