LANCOM CS-8132F-F2B

LANCOM CS-8132F-F2B. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. Full duplex. MAC address table: 32000 entries. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w. Power connector: AC-in jack. Rack mounting, Form factor: 1U

100G fiber core switch for enterprise campus networks

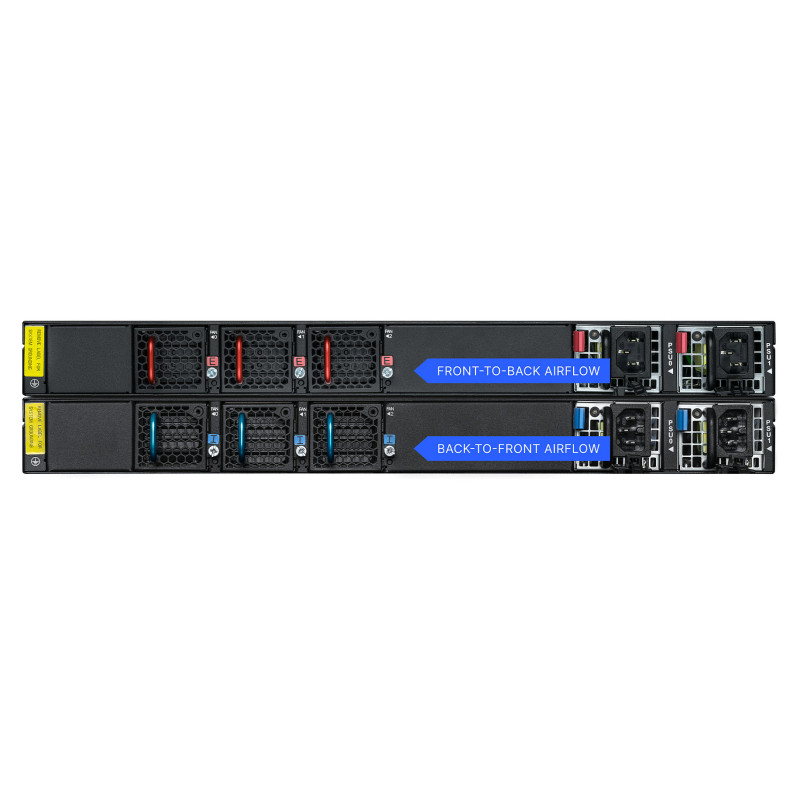

As a central node in campus networks, the LANCOM CS-8132F core switch meets the requirements of today's and tomorrow's bandwidth-intensive applications. Especially for companies with many locations and very high data traffic, the 32 high-performance wire-speed 100G QSFP28 industry-standard ports with up to 6.4 Tbps switch capacity are the powerful backbone of the network. This makes the LANCOM CS-8132F ideal for use as a core switch in three-tier networks and for realizing switch architectures with 100% uptime. Intelligent functions such as Virtual Port Channel (VPC / MC-LAG), redundant and hot-swappable power supply and fan modules, a selectable ventilation concept, and a Limited Lifetime Warranty make this possible. If the switch is managed via the LANCOM Management Cloud, you benefit from standardized management and location-independent real-time monitoring of all network components. Alternatively, you can use the

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: MIB II, Bridge MIB, Interface MIB, SMON MIB, IGMP MIB, IEEE 802.3 MAU MIB

Ports & interfaces

Console port: RJ-45
QSFP28 ports quantity: 32
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Policy-based routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
IPv4 routes: 16000
IPv6 routes: 16000
Feature: VLAN support
Virtual LAN features: Private VLAN, Voice VLAN
Number of VLANs: 4093

Data transmission

Throughput: 32000 Gbit/s
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12288
Packet buffer memory: 32 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: Static port security
Feature: SSH/SSL support
Feature: Loop protection
Feature: Password protection
Authentication type: IEEE 802.1x, RADIUS, TACACS+

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMP
Feature: GARP VLAN Registration Protocol (GVRP)
Routing protocols: BGP4, OSPFv2, OSPFv3

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 3 fan(s)

Performance

Feature: Built-in processor
Processor frequency: 1600 MHz
Memory type: DDR4-SDRAM
Internal memory: 8192 MB
Noise level: 65 dB
Feature: Firmware upgradeable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 310 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 1060 BTU/h

Weight & dimensions

Width: 446 mm
Depth: 480 mm
Height: 43.8 mm
Weight: 7.44 kg

Packaging content

Feature: Manual

Packaging data

Package width: 540 mm
Package depth: 660 mm
Package height: 180 mm
Package weight: 7.45 kg

Logistics data

Customs product code (TARIC): 85176200
Country of origin: Taiwan
