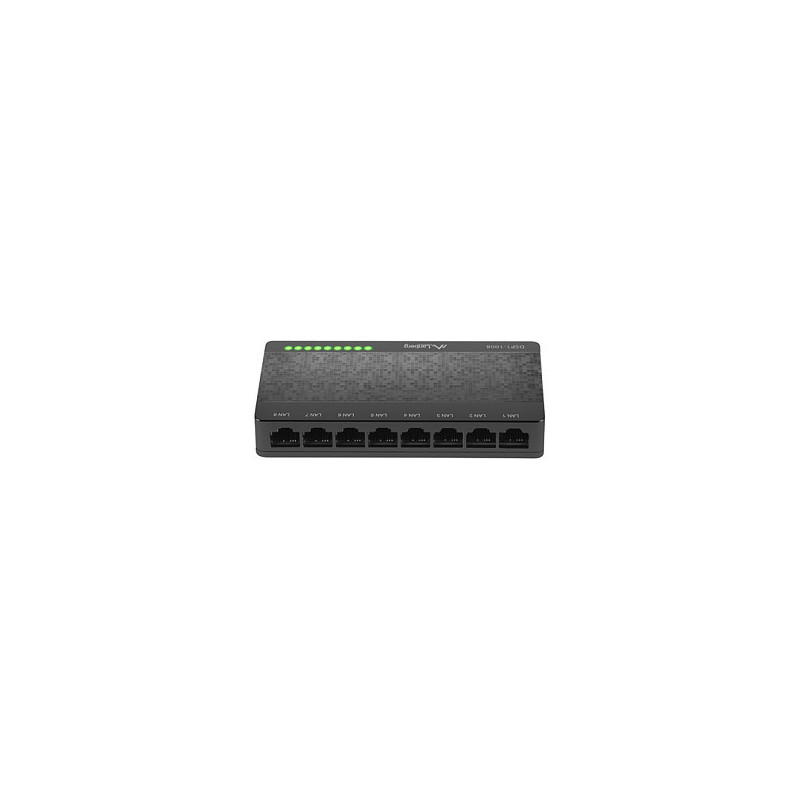

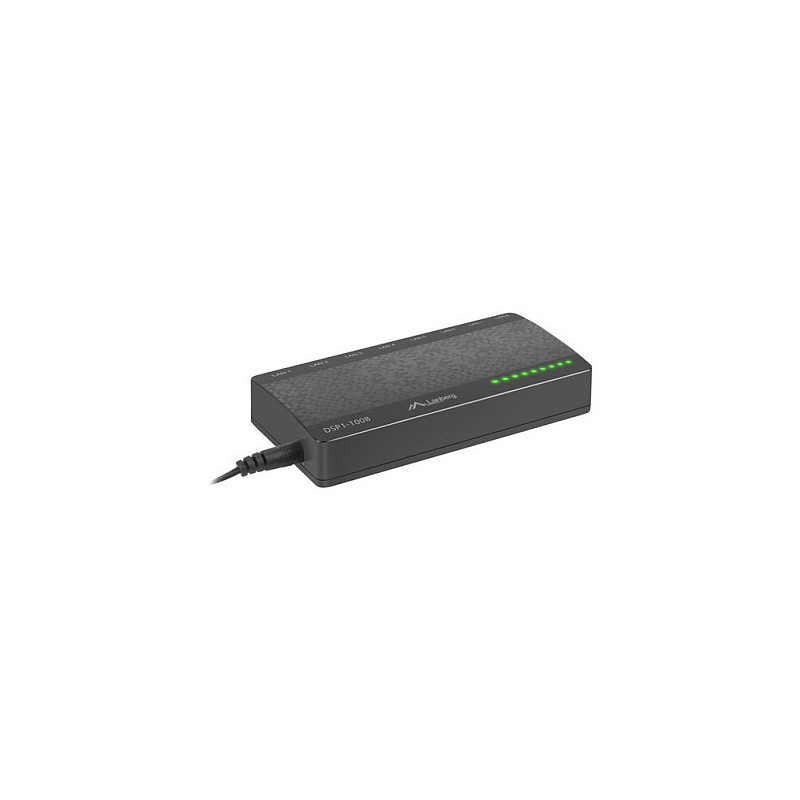

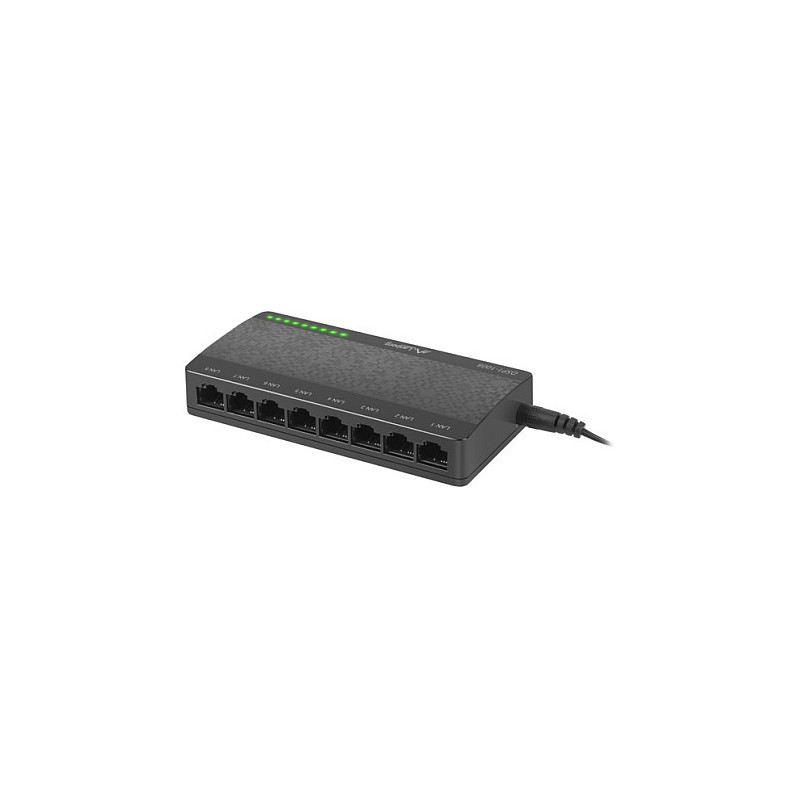

Lanberg DSP1-1008 network switch
Product reference: 29-5901969415704

Lanberg DSP1-1008, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Lanberg DSP1-1008 network switch

Product reference: 29-5901969415704

Lanberg DSP1-1008, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
52,27 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

Lanberg DSP1-1008. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V

Lanberg DSP1-1008 is a compact, unmanaged desktop switch equipped with 8 x Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug & Play operation principles. Product provides switching functions for 8 x 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI-MDIX support.

Switch is an ideal solution for domestic use due to its modest size and silent passive cooling. On top of that, black color and elegant slim case fits to almost any interior. Moreover, device is suitable for office applications, including SOHO and SMB. Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.

Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The switch supports Half-Duplex and Full-Duplex mode for inter-device connections. Flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.

Lanberg desktop switch guarantees a combination of high-quality, automation and a range of features ensuring stable device operation without any excessive user intervention.

Product characteristics and features:

- 8 x RJ-45 10/100/1000 Mbps ports with automatic connection negotiation,
- Plug-and-play support - product does not require any additional configuration,
- MDI / MDIX support, MAC-learning, MAC-aging,
- Flow control function: Back Pressure @ Half-Duplex and IEEE 802.3x @ Full-Duplex,
- Topology: Star,
- Protocol: CSMA / CD,
- MAC address table support: 4K,
- Switching bandwidth: 16 Gbps,
- Passive cooling for silent switch operation,
- Mounting holes for wall installation.

Interface:

- Power supply: External (AC: 100-240 V, 50/60 Hz, 0.3 A; DC: 5 V, 1.0 A)
- Power consumption: Max. 2.15 W,
- LEDs indicating PSU operation: Power, LAN ports (Link / ACT),
- Dimensions: 124 x 59 x 23 mm.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Packet buffer memory: 0.7 MB

Design

Product colour: Black, Grey
Housing material: Plastic
LED indicators: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 5 V
Input current: 0.3 A
Power consumption (typical): 2.15 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 59 mm
Depth: 124 mm
Height: 23 mm
Weight: 150 g


Gamintojo kodas DSP1-1008
Weight 0 kg
