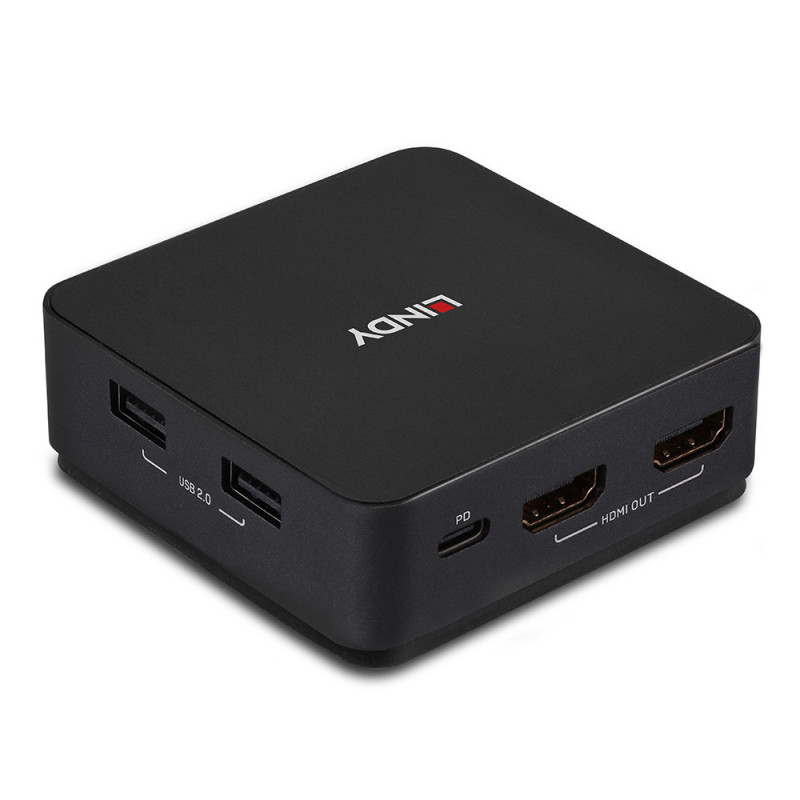

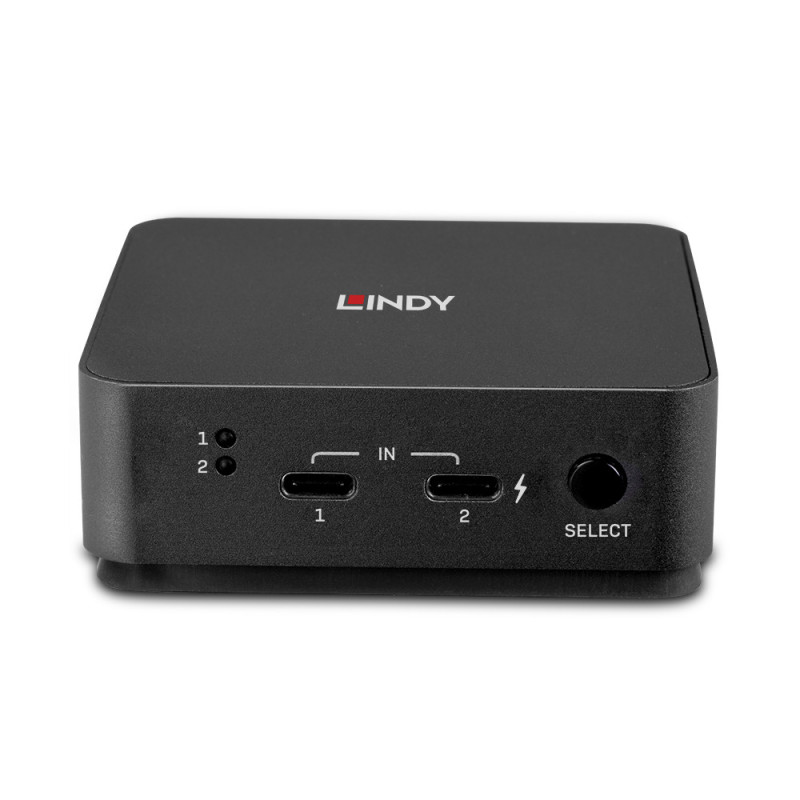

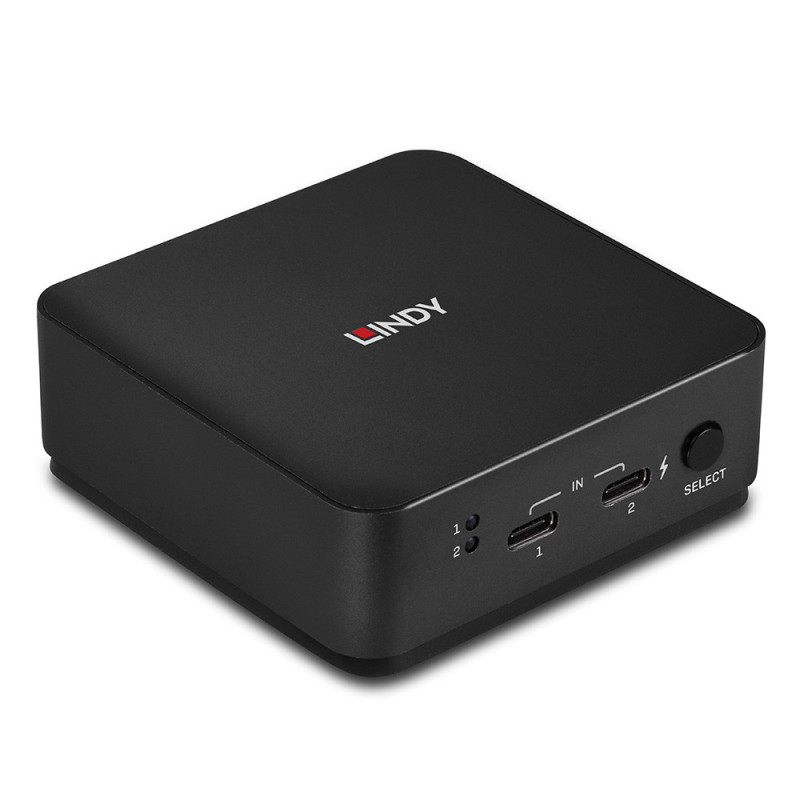

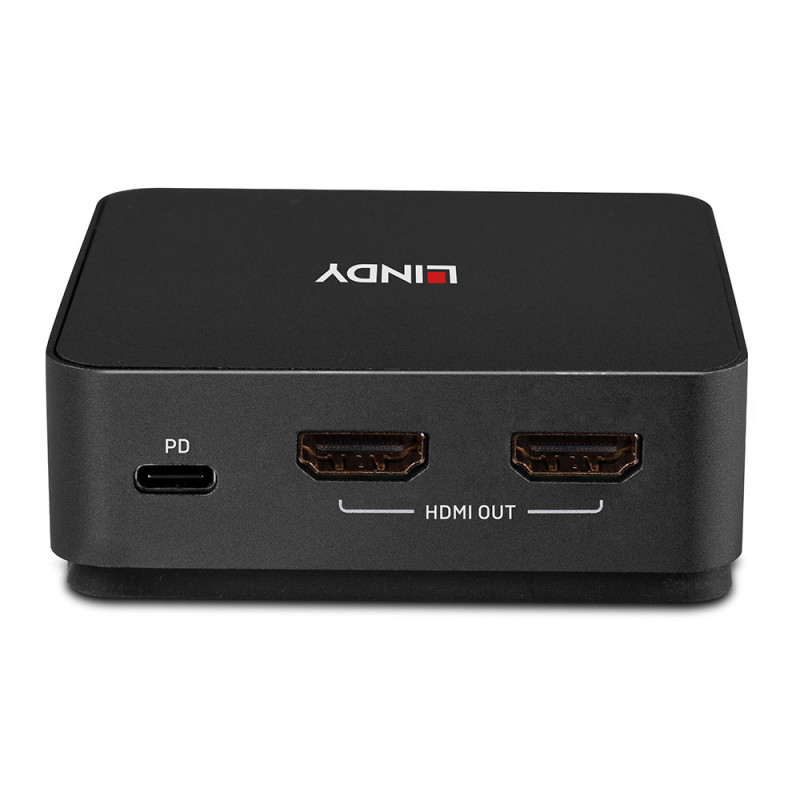

Connect two Type C Alt Mode devices to one console, using a keyboard, mouse, and two HDMI monitors at 4K resolution up to 60Hz. Key features: USB 3.2 Gen 2 support, power delivery up to 100W, and push-button or automatic switching.
Connect two Type C Alt Mode devices to one console, using a keyboard, mouse, and two HDMI monitors at 4K resolution up to 60Hz. Key features: USB 3.2 Gen 2 support, power delivery up to 100W, and push-button or automatic switching.




Connect two Type C Alt Mode devices to one console, using a keyboard, mouse, and two HDMI monitors at 4K resolution up to 60Hz. Key features: USB 3.2 Gen 2 support, power delivery up to 100W, and push-button or automatic switching.
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Connect two Type C Alt Mode devices to a single console with keyboard, mouse and two HDMI monitors 4K resolution up to 60Hz. Features: USB 3.2 Gen 2 support, power delivery up to 100W and switch using a button or automatic switching.
Features | |
|---|---|
| Product type | KVM Switch |
| Model | 2 Port Type C, Dual HDMI 4K60 KVM Switch |
Specifications | |
| AV interface | USB Type-C, HDMI® |
| Console interfaces | USB |
| Interface standard | HDMI® 2.0, USB 3.2 Gen 2, USB 2.0 |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| Audio supported | HDMI bandwidth |
| Number of consoles | 1 |
| Maximum number of PCs/servers | 2 |
| Switching method | Button Auto Switch |
| Special features | Power supply 3.0 to 100W on port 2, LED indicators active |
Connectors | |
| Console interfaces | 2 x HDMI® (Female), 2 x USB Type A (Female) |
| PC/server interfaces | 2 x Type-C (Female) |
| Power supply | Type C PD (Female) (optional) |
Physical properties | |
| Dimensions (approximate) | 78 x 78 x 26.8 mm (3.07 x 3.07 x 1.06 in) |
| Housing material | Metal |
| Net weight | 0.23 kg (0.51 lb) |
| Working temperature | 5°C - 40°C (41°F - 104°F) |
| Storage temperature | -15°C - 60°C (5°F - 140°F) |
| Humidity | 5 - 85% RH (non-condensing) |
| Power requirements | 7.5V |
| Color | Dark gray |
Additional information | |
| Packaging type | Cardboard box |
| Package dimensions | 183 x 53 x 138 mm (7.2 x 2.09 x 5.43 in) |
| Gross weight | 0.33 kg (0.73 lb) |
| Certificates | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
| Height | 53 mm |
| Length | 138 mm |
| Weight | 330 g |
| Width | 183 mm |
