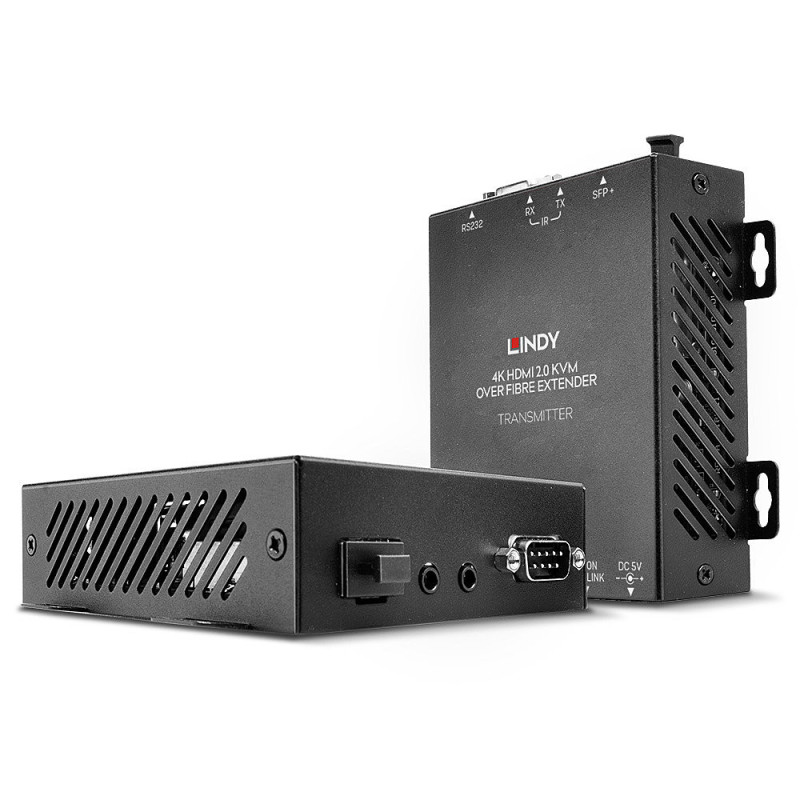

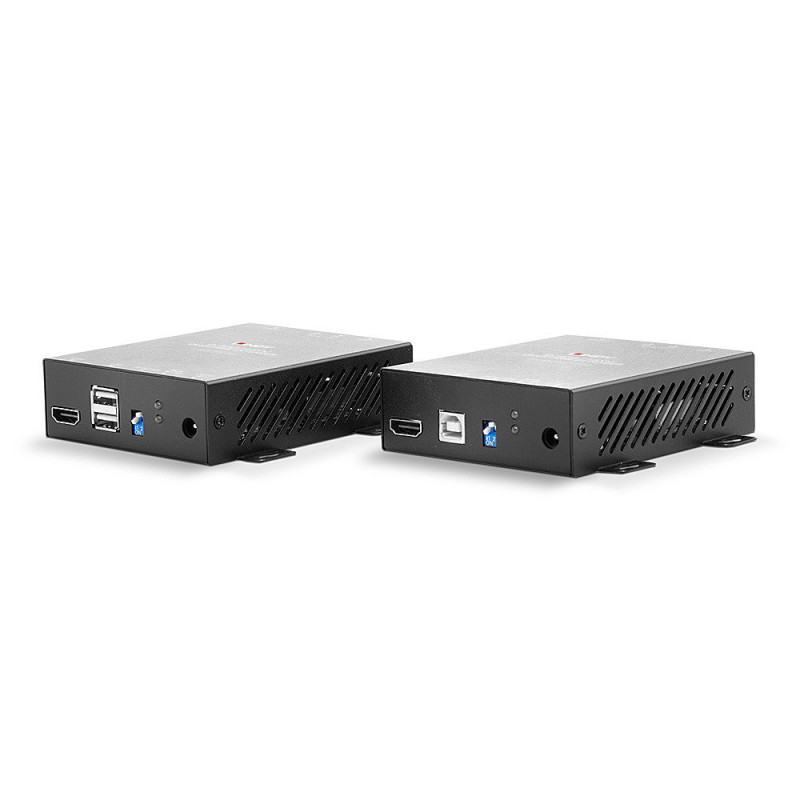

KVM Extender - LINDY Fiber Optic HDMI 4K60, USB, IR and RS232 KVM Extender, 300m, Black
Product reference:
14-4002888393928
Extends HDMI and USB signals up to 300m with a maximum resolution of 3840x2160@60Hz. The device has bidirectional IR and RS-232 bandwidth, supporting HDMI 2.0 and USB 1.1 interfaces.
KVM Extender - LINDY Fiber Optic HDMI 4K60, USB, IR and RS232 KVM Extender, 300m, Black
Product reference:
14-4002888393928
Extends HDMI and USB signals up to 300m with a maximum resolution of 3840x2160@60Hz. The device has bidirectional IR and RS-232 bandwidth, supporting HDMI 2.0 and USB 1.1 interfaces.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY Fiber Optic HDMI 4K60, USB, IR and RS232 KVM Extension, 300 m, Black
Extends HDMI and USB signals up to 300m with maximum resolution 3840x2160@60Hz. Features bidirectional IR and RS-232 pass-through, supporting HDMI 2.0 and USB 1.1 interfaces.
- Extends HDMI 4K60 video and USB signals up to 300 meters (984 feet) using fiber optic technology.
- Supports high bandwidth 18Gbps and maximum resolution 3840x2160@60Hz, ensuring excellent image quality.
- There is bidirectional IR and RS-232 bandwidth, providing various control options.
- Includes transceiver units, SFP+ fiber modules, and a multi-mode power supply for easy setup.
Features | |
|---|---|
| Product type | KVM Extension |
| Model | 300m Fiber Optic HDMI 4K60, USB, IR RS232 KVM Extender |
Specifications | |
| AV interface | HDMI® |
| Console interface | USB |
| Interface standard | HDMI® 2.0, USB 1.1 |
| Supported bandwidth | 18Gbps |
| Maximum distance | 300m (984.24ft) |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| Audio supported | Digital audio bandwidth |
| Transmission medium | 1 x Duplex LC (50/125µm) |
| Laser class (for fiber) | Class 1 |
| Wave (for fiber) | 850nm |
| Special features | Bidirectional IR RS-232 bandwidth |
Connectors | |

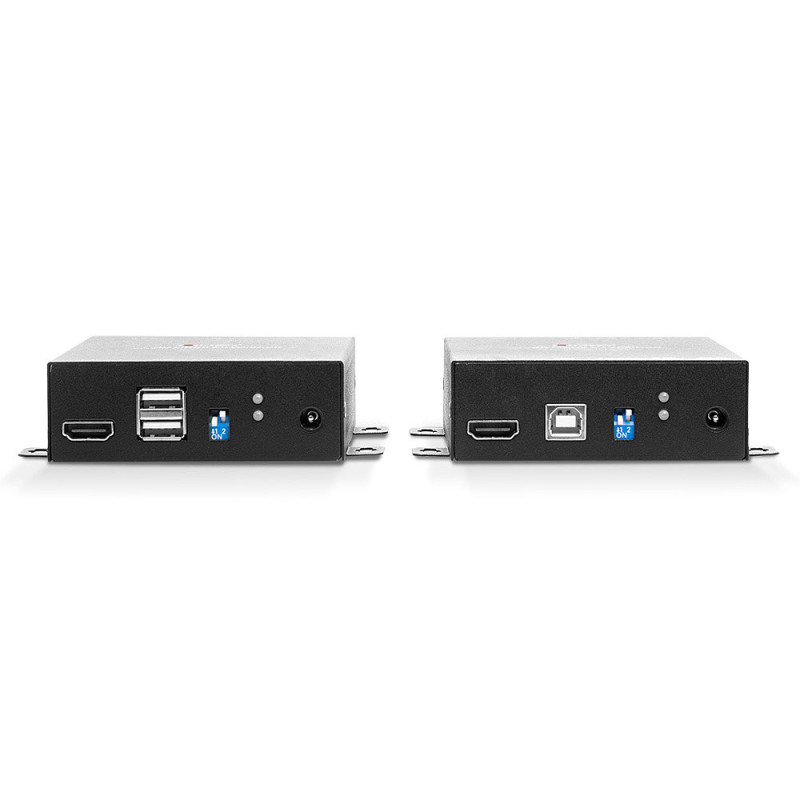

| Transmitter KVM interfaces | HDMI® Type A (Female), USB Type B (Female) |
| Transmitter expansion port | SFP+ Multi-Mode Duplex |
| Receiver console interface | 2 x USB Type A (Female), HDMI® Type A (Female) |
| Receiver expansion port | SFP+ Multi-Mode Duplex |

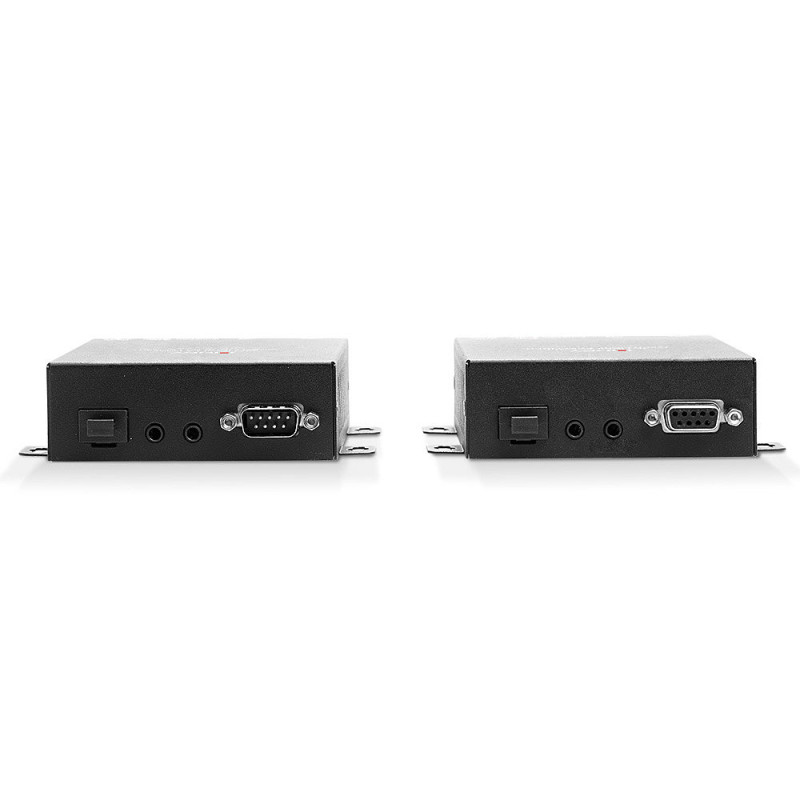

| Bidirectional ports | DB9 (Female), 3.5mm AND (Female) |
| Power connector | 5.5/2.5mm |
Physical properties | |
| Dimensions (approximate) | 110x110x30mm (4.33x4.33x1.18in) |
| Housing | Metal |
| Net weight | 0.27kg (0.6lb) |
| Working temperature | -10°C - 45°C (14°F - 113°F) |
| Storage temperature | -30°C - 70°C (-22°F - 158°F) |
| Humidity | 0 - 95% RH (non-condensing) |
| Power requirements | 5VDC 2.6A |
| MTBF | 42,920 hours |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 222x176x80mm (8.74x6.93x3.15in) |
| Gross weight | 1.175kg (2.59lb) |
| Certificates | CE, UKCA, FCC, RoHS, REACH, California Proposition 65, TAA |
Package contents | |
| |
www.lindy.lt
| Height | 175 mm |
| Length | 218 mm |
| Weight | 2052 g |
| Width | 80mm |
