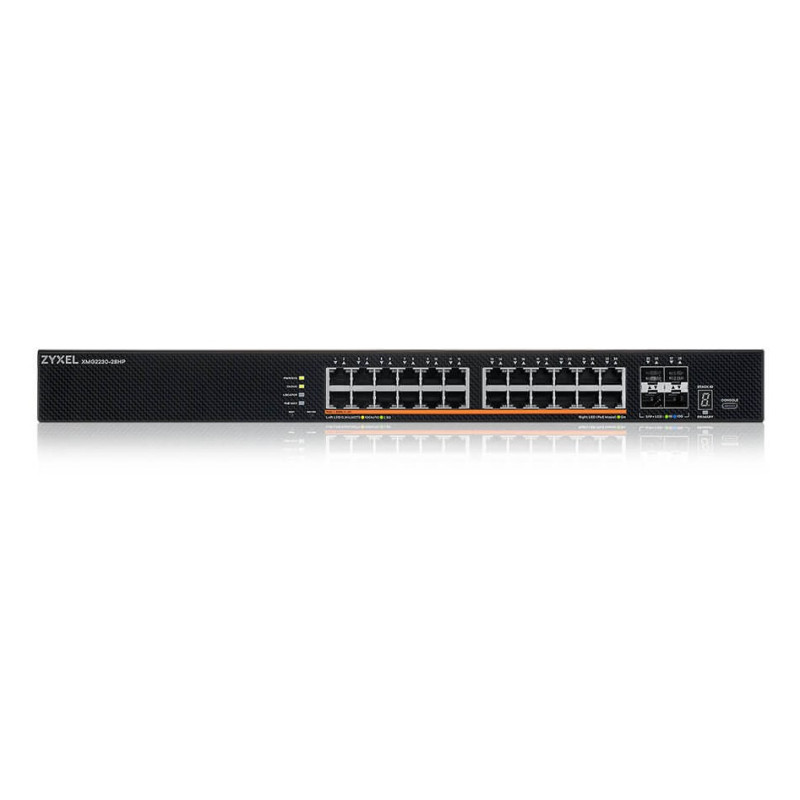

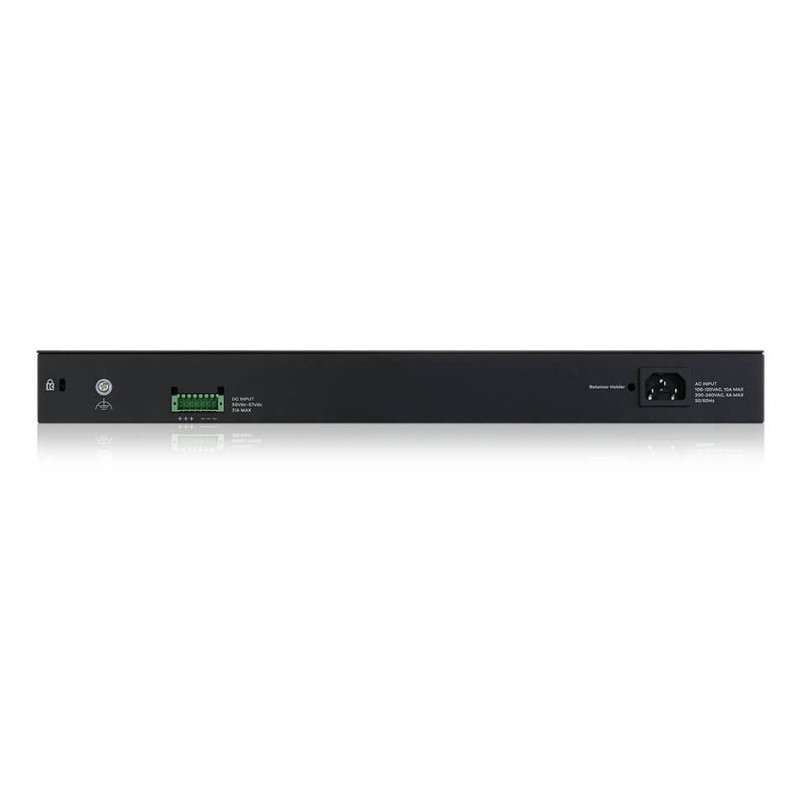

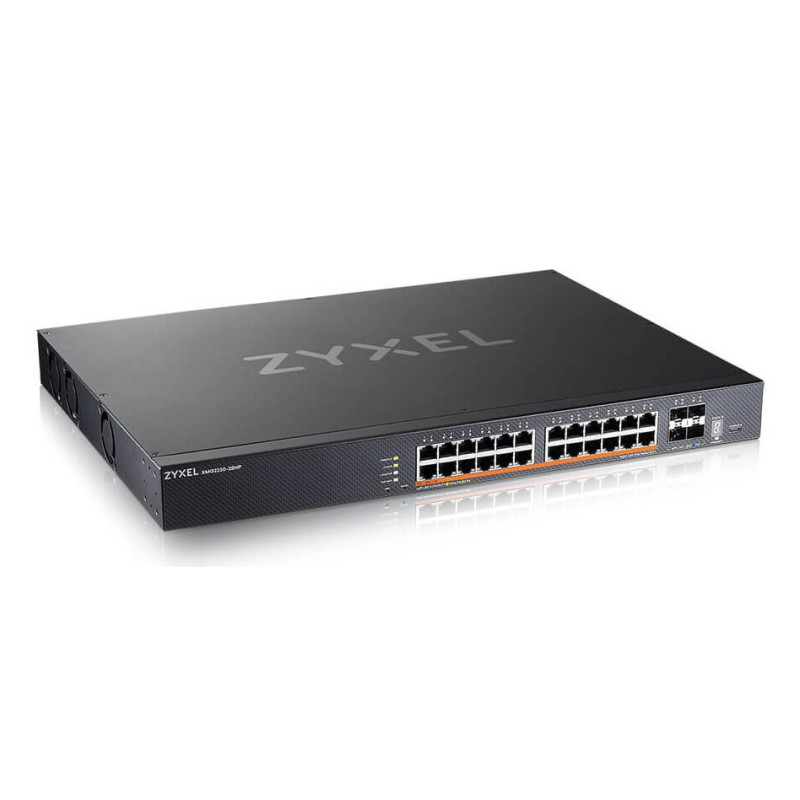

ZyXEL XMG2230-28HP 24-port 2.5G PoE++ managed switch, black
ZyXEL XMG2230-28HP - black 1U managed switch with 24 2.5G Ethernet ports and four SFP+ slots. It supports PoE++ with 1,440W of power, Layer 2 and 3 management, VLAN, QoS, and cloud management.
- 24-port 2.5G Ethernet managed switch with four SFP+ slots for high-speed network uplink connections.
- PoE++ support and 1,440W of power for compatible access points, cameras, phones, and other devices.
- Layer 2 and 3 management with VLAN, QoS, static routing, policy-based routing, and comprehensive security features.
- Cloud-managed, rack-mountable, and packaged in a 1U chassis, the black color is suitable for a variety of enterprise and business networks.
Product information | |
|---|---|
| Product type | Managed Layer 2 and Layer 3 Ethernet Switch |
| Brand | ZyXEL |
| Model | XMG2230-28HP |
| Color | Black |
| Form factor | 1U, rack-mountable |
| Can be connected to a case | Yes |
| Dimensions | 441 × 44 × 330 mm (W × H × D) |
| Weight | 4.53 kg |
Ports and connectors | |
| RJ-45 Ethernet ports | 24 × 2.5G Ethernet (100/1000/2500 Mbps) |
| Uplink ports | 4 × SFP+ slots with 10G support |
| Console port | RJ-45 and USB Type-C |
| Supported copper cable standards | 100BASE-T, 1000BASE-T and 2.5GBASE-T |
Network and management | |
| Management | Management via web, CLI and cloud |
| VLAN functions | By port, protocol, voice, IP subnet, rules, and private VLANs |
| Routing | Static and rule-based routing |
| Routing records | 64 |
| Static routes | Up to 4,000 |
| IP interfaces | 32 |
| QoS | Supported |
| Flow control | Rate limiting, broadcast storm control, and port mirroring |
| Multicast traffic | Multicast traffic support with IGMP snooping and IGMP proxy |
| GVRP | Supported |
Safety | |
| Authentication | IEEE 802.1X, MAC address-based, RADIUS and TACACS+ |
| Safe operation | SSH, SSL and SNMPv3 |
| Additional safety | Static port security, IP-MAC-port binding, ARP inspection, and BPDU protection |
| DHCP protection | DHCP Snooping, DHCPv6 Snooping, DHCP Relay, DHCPv6 Relay, DHCP Server, and DHCP Option 82/60 |
Performance | |
| Switching speed | 200 Gbps |
| Transfer rate | 148.8 Mpps |
| MAC address table | 32,000 entries |
| Packet buffer | 2MB |
| Jumbo Frame Support | Yes |
| Internal memory | 1,000MB |
| Memo | 64MB |
| Noise level | 48.85 dB |
Power supply and operating conditions | |
| AC input | 100-240V, 50/60Hz |
| DC input | 50-57 V |
| Maximum power consumption | 1,519.1W |
| Power source | Attached |
| Operating temperature | −20°C-50°C |
| Operating humidity | 5-95% relative humidity |
| Storage temperature | −40°C-70°C |
| Storage humidity | 5-95% relative humidity |
Safety | |
| Safety warning | For indoor installation by qualified network installation personnel. Use only the supplied or manufacturer-approved power supply, ensure proper ventilation, and do not exceed the specified PoE power. Unplug the switch from the power source before performing any maintenance. |
| Height | 95 mm |
| Length | 503mm |
| Weight | 6810 grams |
| Width | 580mm |
