Switch - TP-Link Omada 28-port L2+ Managed PoE+ Switch, Black
Product reference:
14-1210002611909

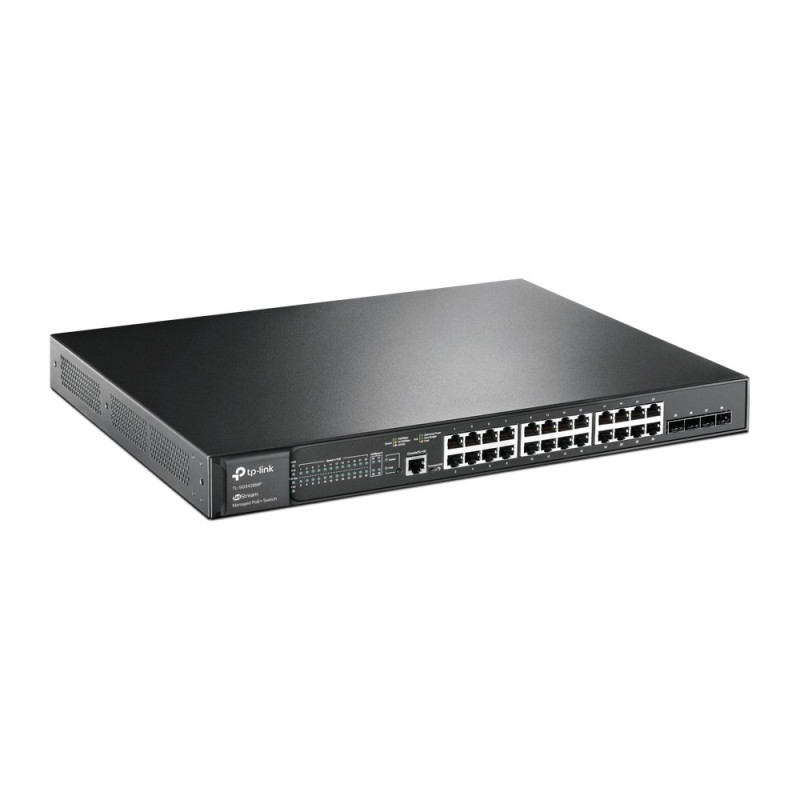

Black managed 1U network switch with 24 Gigabit PoE+ ports and four SFP slots. Supports L2+ switching, VLAN, IP routing, link aggregation, QoS, and cloud or web-based management.
Switch - TP-Link Omada 28-port L2+ Managed PoE+ Switch, Black
Product reference:
14-1210002611909
Black managed 1U network switch with 24 Gigabit PoE+ ports and four SFP slots. Supports L2+ switching, VLAN, IP routing, link aggregation, QoS, and cloud or web-based management.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
TP-Link Omada 28-port managed L2+ PoE+ switch, black
Black 1U managed network switch with 24 Gigabit PoE+ ports and four SFP slots. Supports L2+ switching, VLAN, IP routing, link aggregation, QoS, and cloud or web-based management.
- Rack-mountable 1U managed switch with 24 Gigabit Ethernet ports and 4 SFP slots
- 24 PoE+ ports deliver up to 30W per port, total power limit - 384W
- L2+ management with VLAN, QoS, link aggregation, IP routing and advanced security features
- Omada cloud management, web interface and CLI support for flexible network administration
Product information | |
|---|---|
| Product type | Managed L2+ network switch |
| Brand | TP-Link Omada |
| Color | Black |
| Form factor | 1U, rack-mountable |
| Dimensions | 440 × 44 × 330 mm (W × H × D) |
Ports and performance | |
| Ethernet ports | 24 × gigabit Ethernet RJ-45, 10/100/1000 Mbps |
| Uplink ports | 4 × SFP slots |
| Switching speed | 56 Gbps |
| Transfer rate | 41.66 Mpps |
| MAC address table | 16,000 entries |
| Packet buffer | 12MB |
| Big shots | Up to 9000 bytes |
| Switching method | Recording and forwarding |
Management and network | |
| Management interfaces | Omada Cloud, Web Interface, CLI, and Console |
| Management protocols | SNMPv1/v2c/v3, LLDP and LLDP-MED |
| VLAN capacity | Up to 4000 VLANs |
| VLAN types | Port-based, tagged, voice, private, and MAC-based VLANs |
| Routing | IP routing supported |
| The encompassing tree | Supported |
| Channel aggregation | Supported |
| Multicast transmission | Multicast and IGMP snooping supported |
| Service quality | QoS, traffic control and rate limiting |
| Additional network features | Port mirroring, broadcast storm control, GVRP, and active link detection |
Security | |
| Access control | Access control lists, MAC filtering, and static port security |
| Authentication | Authentication is performed based on MAC address and port |
| Network protection | IP-MAC-port binding, DHCP snooping, DHCPv6 snooping, ARP inspection, BPDU protection, and loop protection |
| Safe operation | SSH and SSL/TLS support |
Power supply and installation | |
| Power input | 100-240V AC, 50/60Hz |
| Maximum power consumption | 463.8W |
| Cooling | 2 fans |
| Indicators | LED indicators |
| Console connector | RJ-45 and micro-USB |
Terms of Use | |
| Operating temperature | 0-45°C |
| Operating humidity | 10-90% relative humidity |
| Storage temperature | −40-70 °C |
| Storage humidity | 5-90% relative humidity |
Safety | |
| Safety warning | For indoor network installation only. Install the switch in a suitable rack or stable, ventilated location, do not block the ventilation openings, and use only with a compatible AC power supply. Installation and configuration must be performed by a qualified professional. |
| Height | 100mm |
| Length | 540mm |
| Weight | 8000 grams |
| Width | 480mm |
