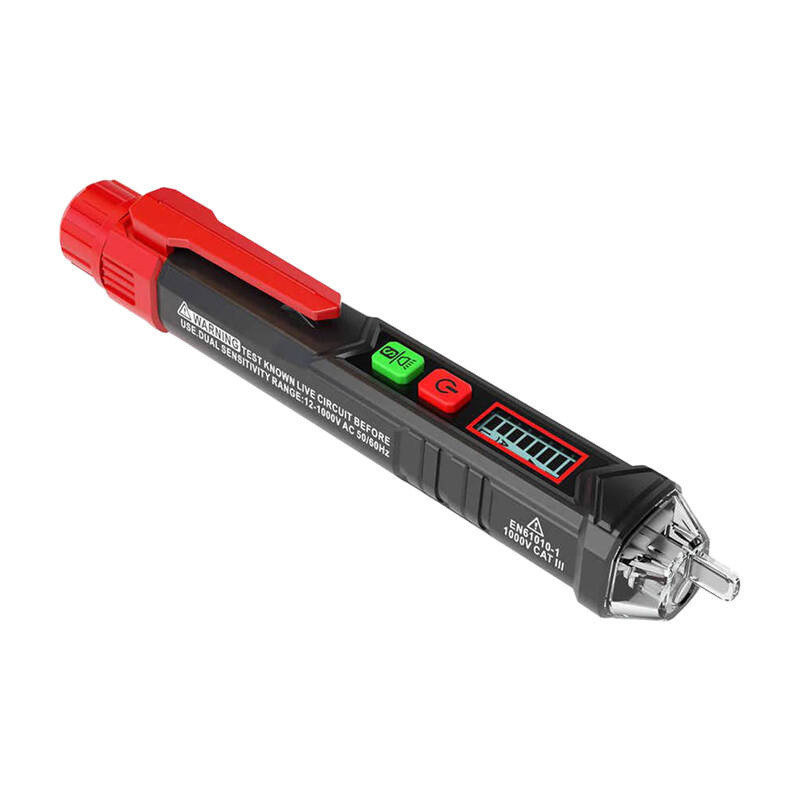

Habotest HT100P - non-contact AC voltage and phase tester, detecting 12-1,000 V voltage, determining phase and neutral wires and checking the phase sequence of a three-phase system. Adjustable sensitivity, audible and visual signals, four-level signal indicator, LED flashlight and automatic shutdown after 5 minutes ensure convenient use.
Habotest HT100P - non-contact AC voltage and phase tester, detecting 12-1,000 V voltage, determining phase and neutral wires and checking the phase sequence of a three-phase system. Adjustable sensitivity, audible and visual signals, four-level signal indicator, LED flashlight and automatic shutdown after 5 minutes ensure convenient use.


Habotest HT100P - non-contact AC voltage and phase tester, detecting 12-1,000 V voltage, determining phase and neutral wires and checking the phase sequence of a three-phase system. Adjustable sensitivity, audible and visual signals, four-level signal indicator, LED flashlight and automatic shutdown after 5 minutes ensure convenient use.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Habotest HT100P - non-contact AC voltage and phase tester, detects 12-1000 V voltage, identifies phase and neutral wires and checks the phase sequence of a three-phase system. The device can be adjusted in sensitivity, has sound and light signals, a four-level signal bar graph, an LED flashlight and automatic shutdown after 5 minutes.
Product information | |
|---|---|
| Product type | Non-contact AC voltage and phase tester |
| Brand | Habotest |
| Model | HT100P |
| Voltage detection range | High sensitivity: AC 12-1000 V; low sensitivity: AC 48-1000 V |
| Operating frequency | 50/60Hz |
| Power supply | 2 × AAA 1.5V batteries included |
Functions and indicators | |
| Detection functions | Non-contact voltage detection, phase and neutral wire identification, three-phase system phase sequence verification and cable break location detection |
| Sensitivity adjustment | High and low sensitivity modes |
| Warning | Sound and light signals |
| Signal display | Four-level signal strength bar chart |
| Backlight | Two colors - red and green |
| Signal indication | The audio signal speeds up from slow to fast, the backlight changes from green to red, and the bar graph level increases as the signal strength increases. |
| Flashlight | Integrated LED |
| Low battery indicator | Yes |
| Automatic shutdown | After 5 minutes of inactivity |
Construction and safety | |
| Probe shape | Elongated |
| Dimensions | 157 × 27 × 23mm |
| Weight | About 32 g |
| Additional design features | Integrated pocket clip |
| Safety category | CAT III 1000V |
| Compliance with standards | EN 61010-1, EN 61010-2-030, EN 61326-1 |
| Safety warning | Use only for non-contact AC voltage detection and phase testing within the specified range. Follow applicable electrical safety procedures and do not rely on the tester as the sole means of confirming that there is no voltage in a circuit. |
| Height | 30 mm |
| Length | 200mm |
| Weight | 50 g |
| Width | 50mm |
