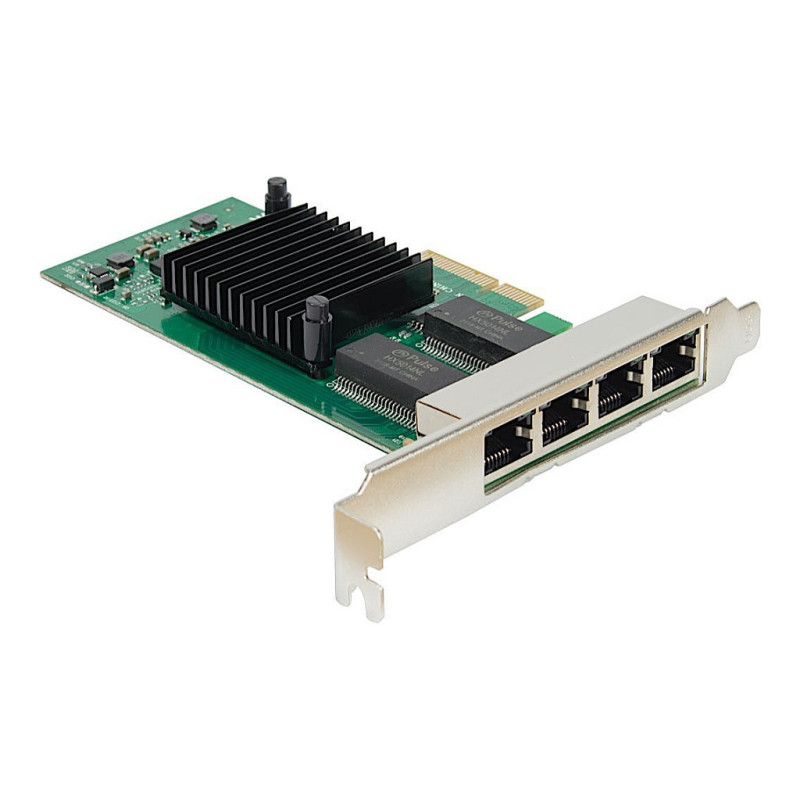

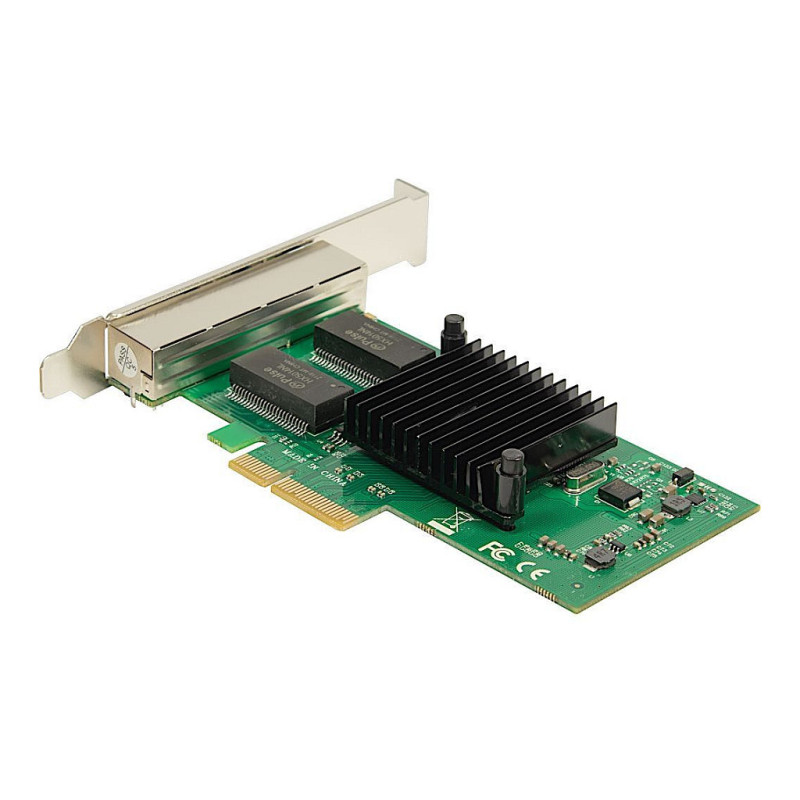

Inter-Tech ST-7238

Inter-Tech ST-7238. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

Quadport Gigabit LAN-Adapter for use in server environments. The inbuilt Intel chipset i350 offers even more integrated features than standard chipsets. This way the ST-7238 is able to relieve the main processor which means less stress for the main processor due to networking transfer - as "regular" networking cards would cause.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 4
PCI version: 2.0

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 1588, IEEE 802.1as
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support

Design

Feature: Internal
Chipset: Intel® I350

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019

Weight & dimensions

Width: 145 mm
Depth: 120 mm
Height: 22 mm

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85176990
