Inter-Tech ST-705

Inter-Tech ST-705. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

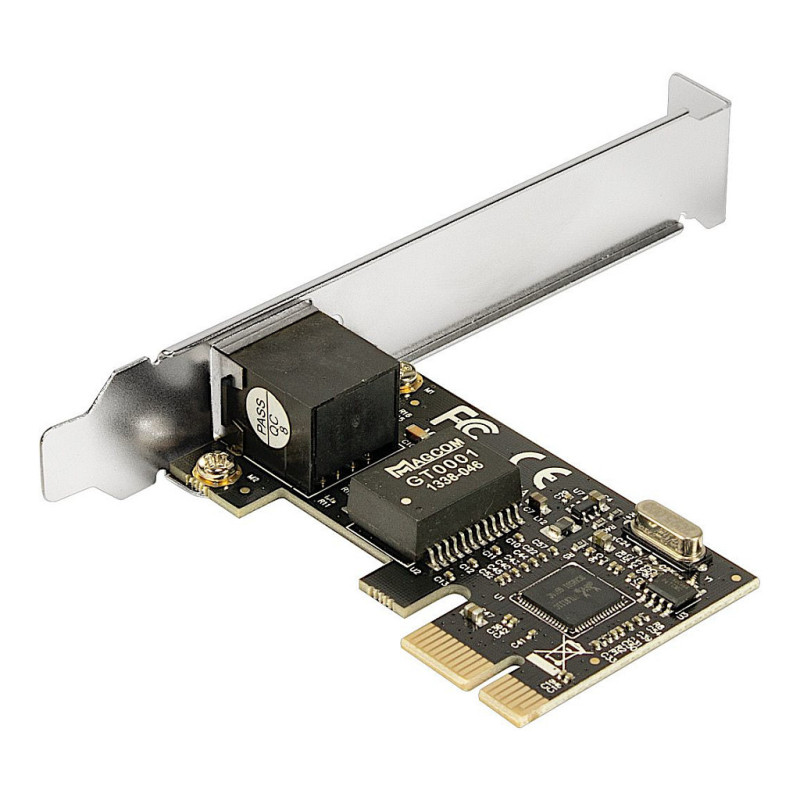

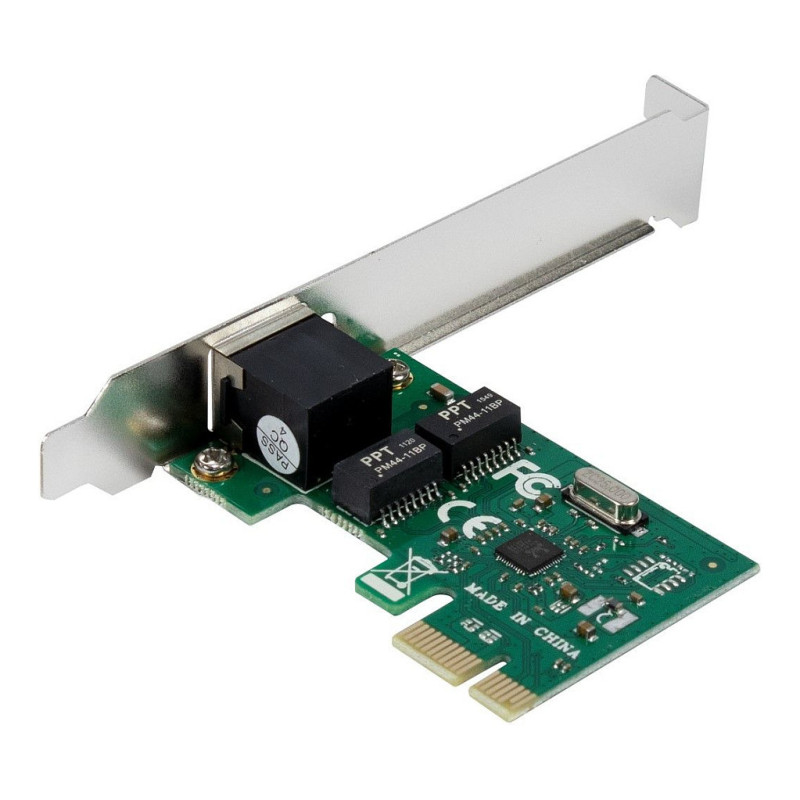

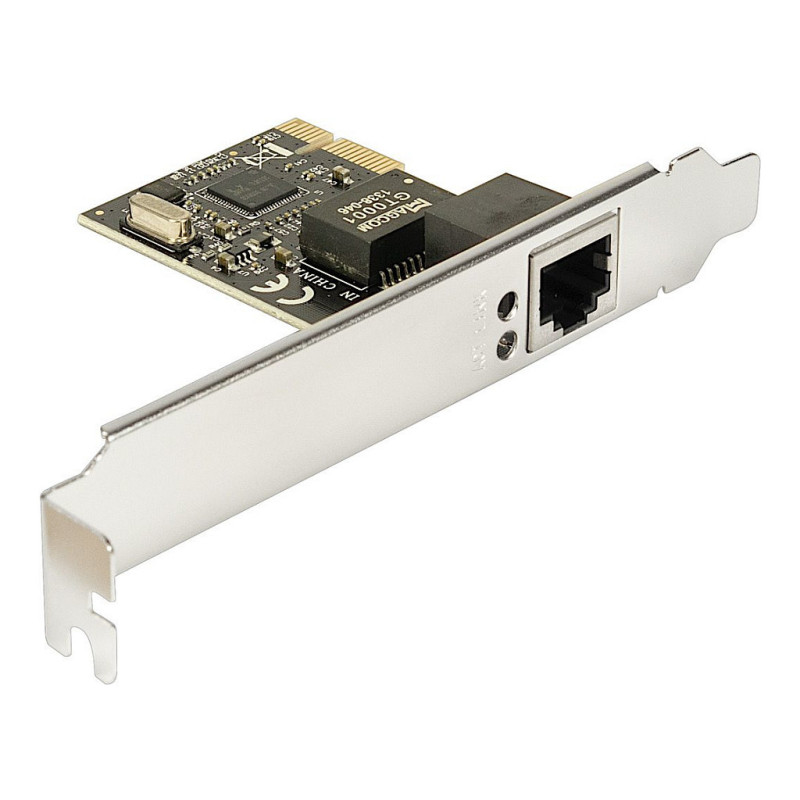

Gigabit network adapter for use in the desktop area. With the ST-705 and the built-in Realtek® RTL8111C chipset, any desktop computer with a free PCIe x1 slot can be expanded by an additional RJ45 port with a data transfer rate of up to 1000Mbit/s. With its shallow depth, the network adapter is also ideal for smaller ITX systems.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 1.1

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
LAN controller: Realtek RTL8111C

Design

Component for: PC
Feature: Internal

System requirements

Linux operating systems supported: Yes

Weight & dimensions

Width: 80 mm
Depth: 120 mm
Height: 22 mm
Weight: 25 g

Packaging data

Package weight: 115 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Manual

Logistics data

Harmonized System (HS) code: 85176990
