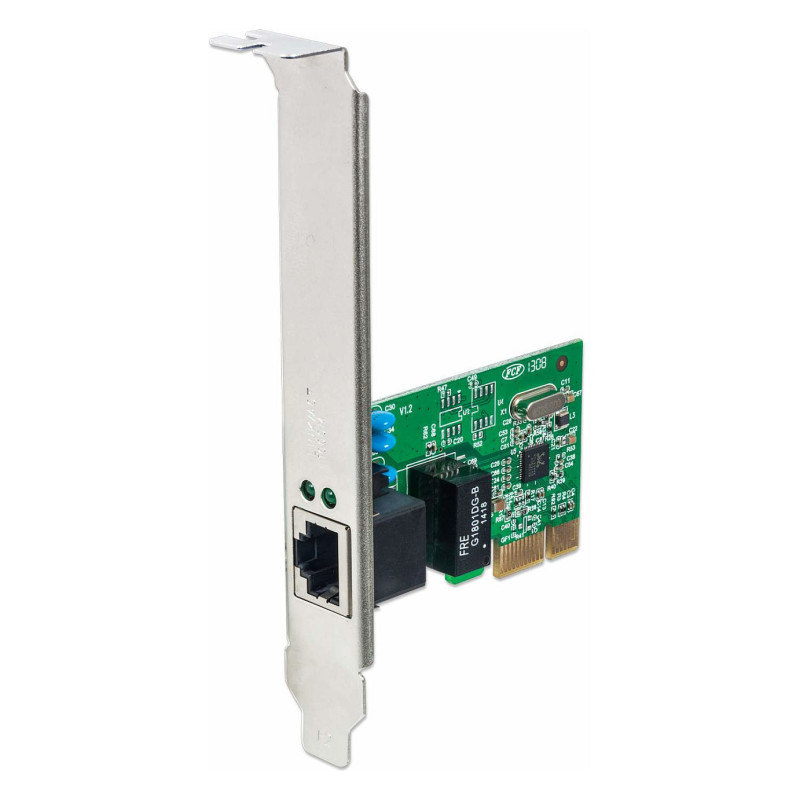

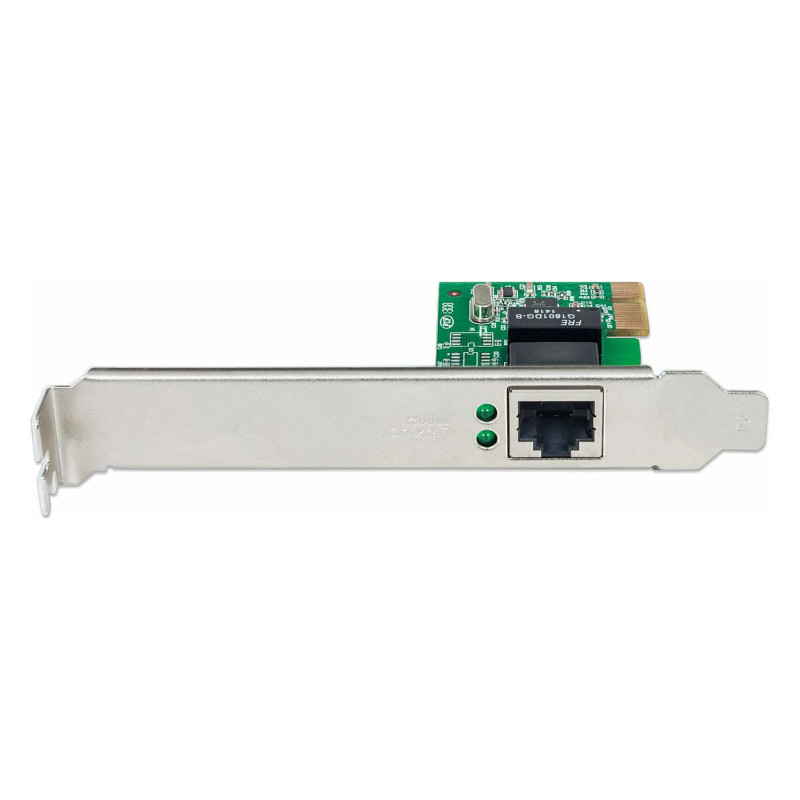

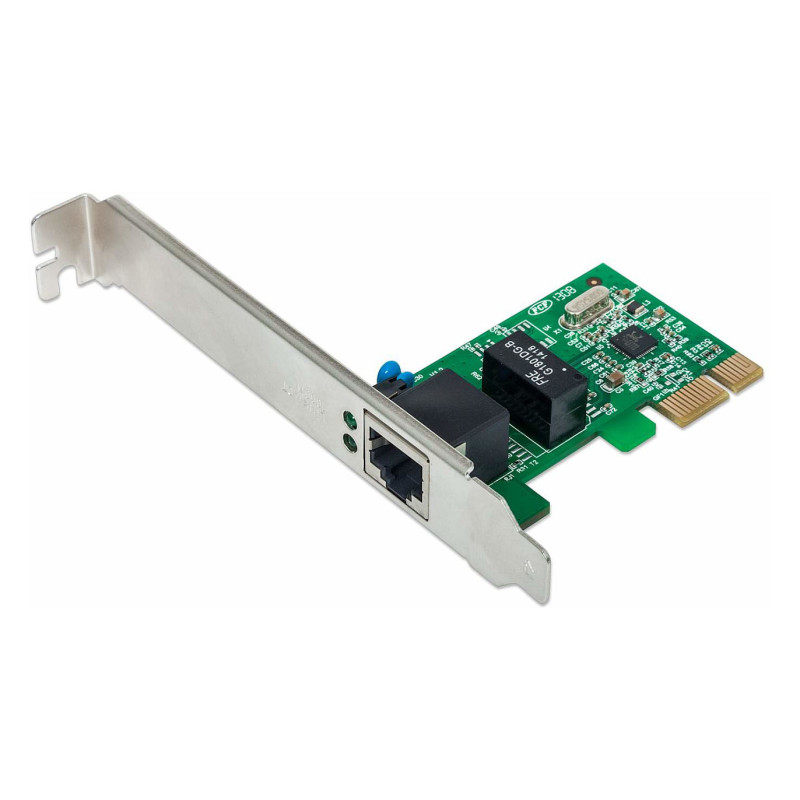

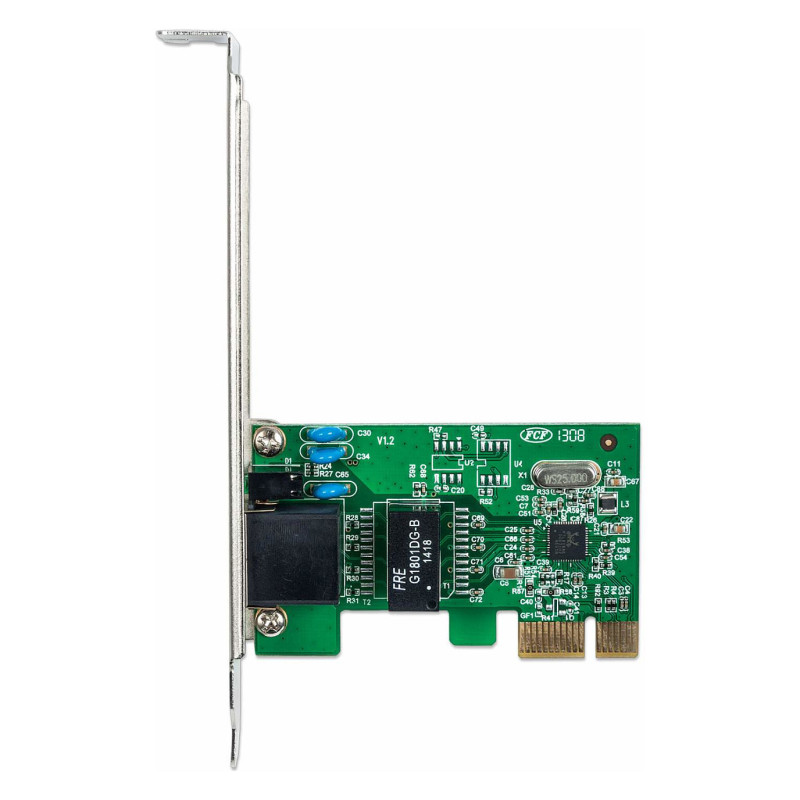

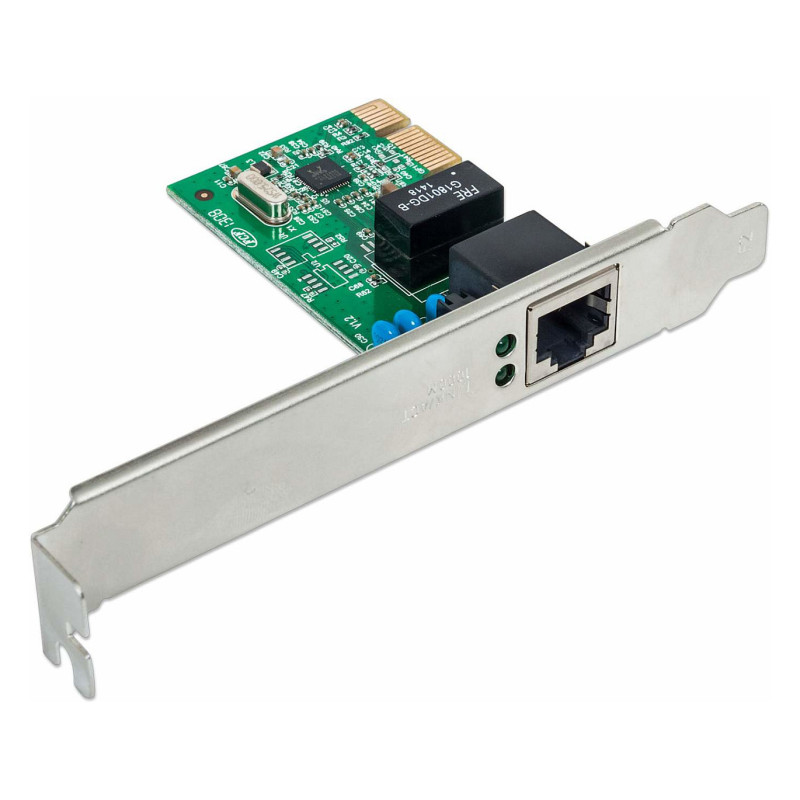

Intellinet 522533 network card

Intellinet Gigabit PCI Express Network Card, 10/100/1000 Mbps PCI Express RJ45 Ethernet Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

The Gigabit PCI Express Network Card is a high-performance network adapter. It supports the PCI Express bus architecture, which provides faster throughput than the current 32- and 64-bit PCI bus architectures. And there is no need to switch to fibre optic cable - The Intellinet Network Solutions Gigabit PCI Express Network Card allows you to run Gigabit speeds over your existing copper wire network cable.

Faster Throughput
The PCI Express host interface supports throughput rates of up to 2 Gbps when running in full duplex mode, ideal for resource-intensive CAD/CAM, client-server database, multimedia, pre-press, advertising graphics, server and mission-critical applications.

Auto-Negotiation
The Gigabit PCI Express Network Card will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet.

Full Duplex
When running in full duplex mode, the Gigabit PCI Express Network Card provides the following throughput rates: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).

Built-In Diagnostics
The Gigabit PCI Express Network Card comes standard with crossover detection and auto correction capabilities that make installation and maintenance a snap.

Remote Power On
The Wake-On-LAN feature allows you to power on your desktop PC from anywhere on the network.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Full duplex

Design

Component for: PC
Feature: Internal
Certification: FCC & CE

System requirements

Windows operating systems supported: Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 122 mm
Depth: 254 mm
Height: 89 mm
Weight: 108.3 g

Packaging content

Feature: Manual

Technical details

Compliance certificates: Federal Communications Commission (FCC)

Logistics data

Harmonized System (HS) code: 85176990

Other features

Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supported data transfer rates: 10/100/1000 MBit/s
Feature: Link/Act LED
