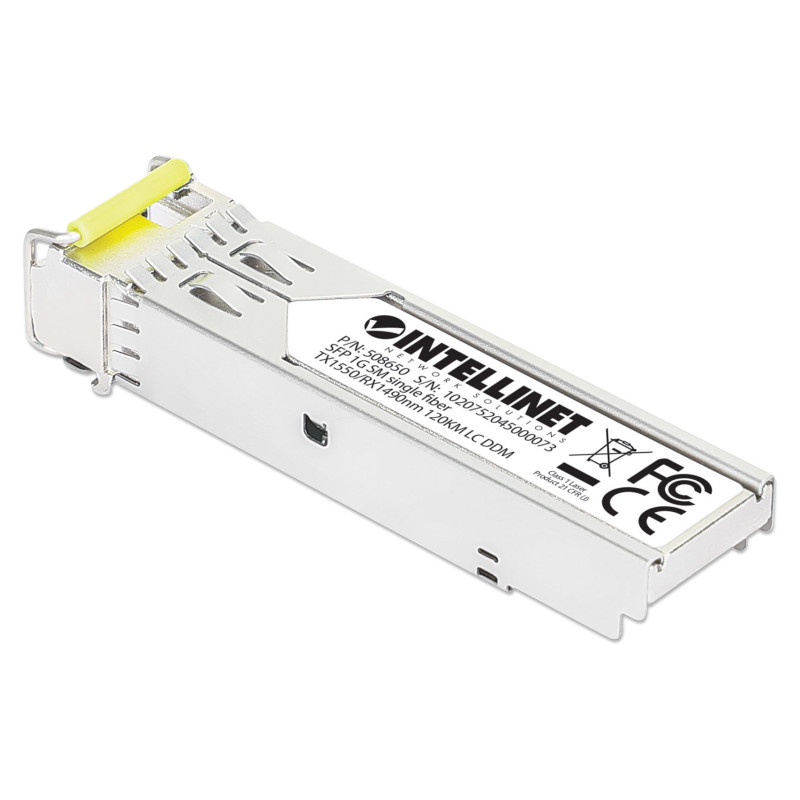

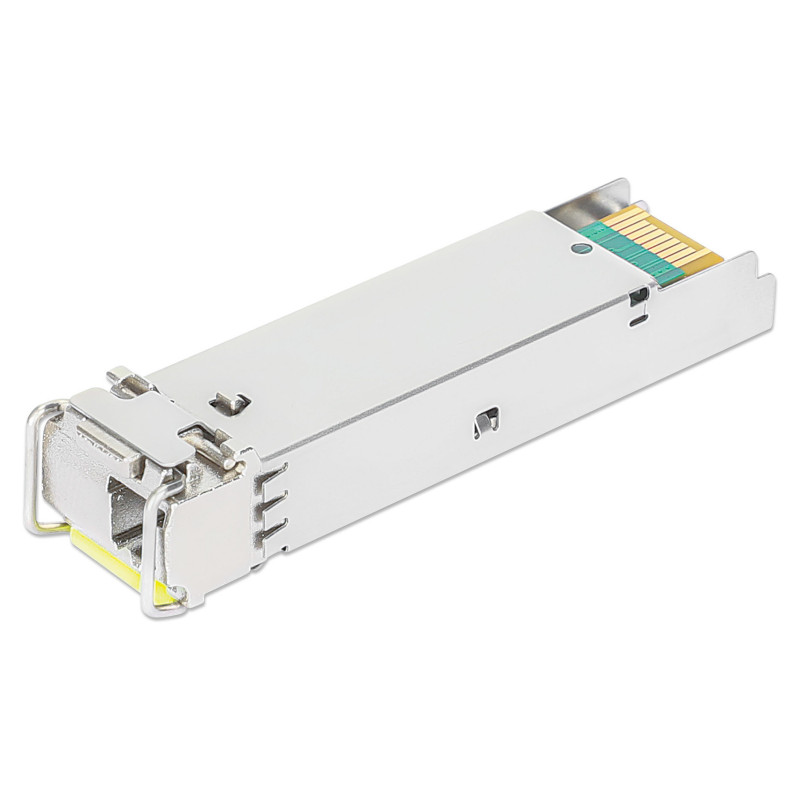

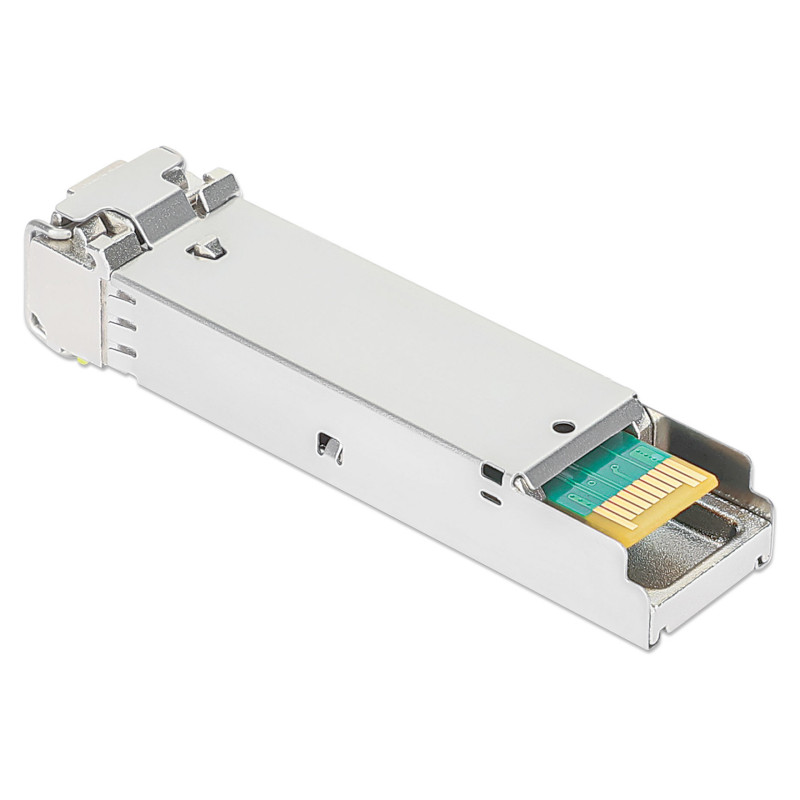

Intellinet 508650 network transceiver module

Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 120 km (75 mi.), BiDi WDM (RX1490/TX1550), MSA-compliant for Maximum Compatibility, Silver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC/SFP. Product colour: Silver, Housing material: Metal, Brand compatibility: MSA Compliant. Maximum voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC). Width: 14 mm, Depth: 57 mm, Height: 12 mm

Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module - MSA compatible, affordable premium performance with WDM benefits
The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions combines performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP module's metal housing offers increased durability while reducing electromagnetic interference.

Small Size for High-Density Fiber Connections
The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections.

Multi-vendor Compatible
Compatibility in your network is everything, and this SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other Multi Source Agreement (MSA) compliant SFP-enabled switch. It is designed, programmed and tested to work with compatible switches and routers from Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more.

Hot-Pluggable
There's no need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy to make adjustments to your network that allow your business to keep pace with the changing demands of the market.

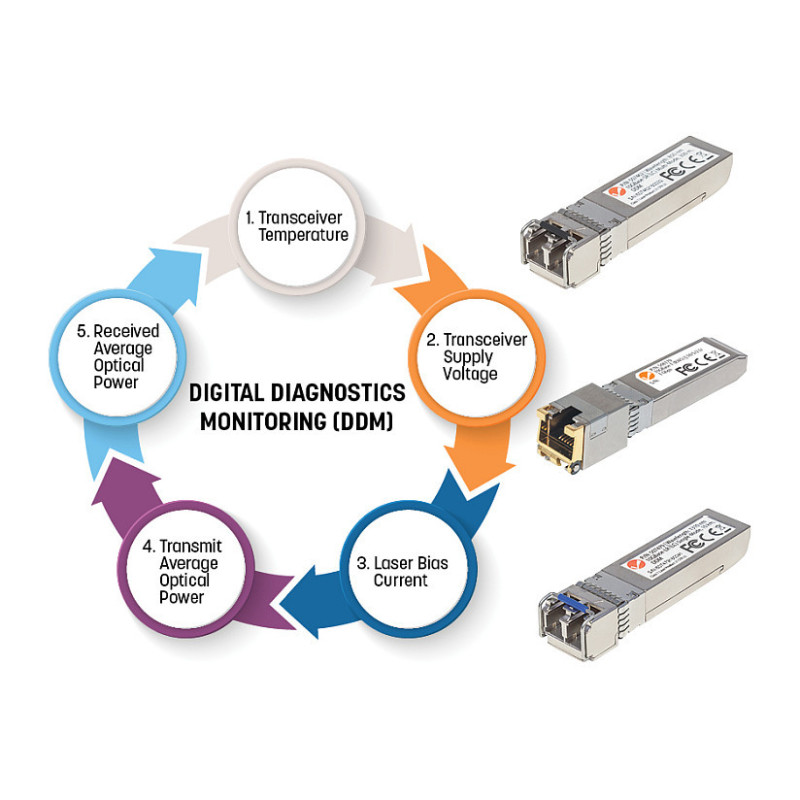

Digital Diagnostics Monitoring (DDM)
This transceiver supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). That gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

WDM (bi-directional wavelength division multiplexing) Technology Advantage
The Intellinet Network Solutions Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1490/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fiber cable. Note that this transceiver (model 508650) must be used with Intellinet Network Solutions model 508643 or Cisco model GLC-BX120-U.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: mini-GBIC/SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: BX-D
Maximum transfer distance: 120000 m
Tx wavelength (max): 1550 nm
Rx wavelength (max): 1490 nm
Tx power (min): 0 dBmW
Tx power (max): 5 dBmW
Networking standards: IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE
Feature: Digital Diagnostics Monitoring (DDM)
Feature: Wavelength-division multiplexing (WDM)

Features

Product colour: Silver
Housing material: Metal
Feature: Hot-Plug support
Brand compatibility: MSA Compliant

Power

Maximum voltage: 3.3 V
Power consumption (typical): 1 W

Certificates

Compliance certificates: CE, RoHS, Federal Communications Commission (FCC)

Sustainability

Feature: Sustainability compliance

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Width: 14 mm
Depth: 57 mm
Height: 12 mm
Weight: 20 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package weight: 30 g
Package type: Box

Logistics data

Master (outer) case width: 200 mm
Master (outer) case length: 310 mm
Master (outer) case height: 250 mm
Master (outer) case gross weight: 2.6 kg
Products per master (outer) case: 48 pc(s)
