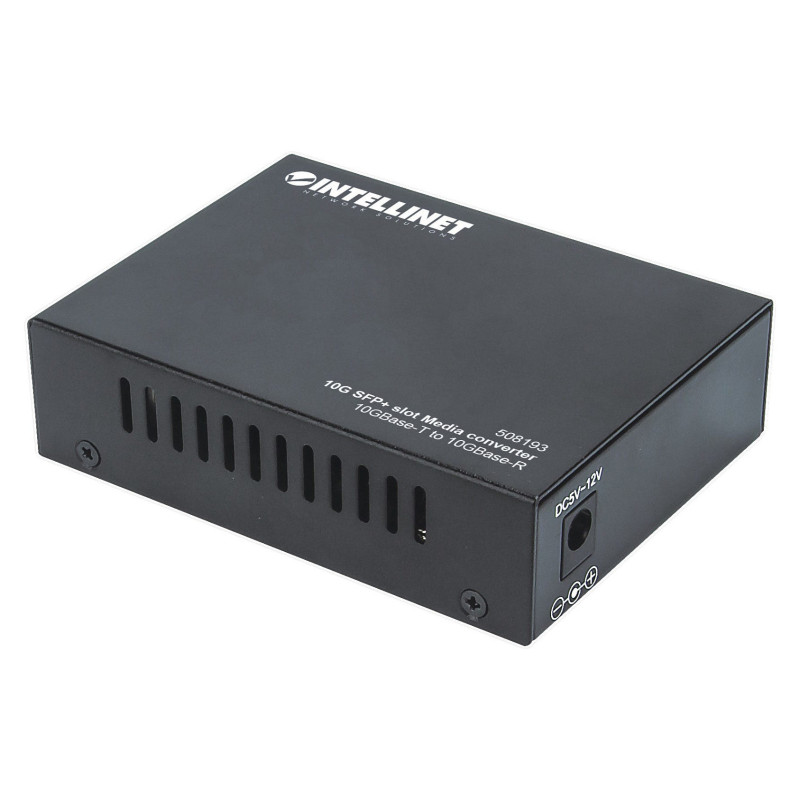

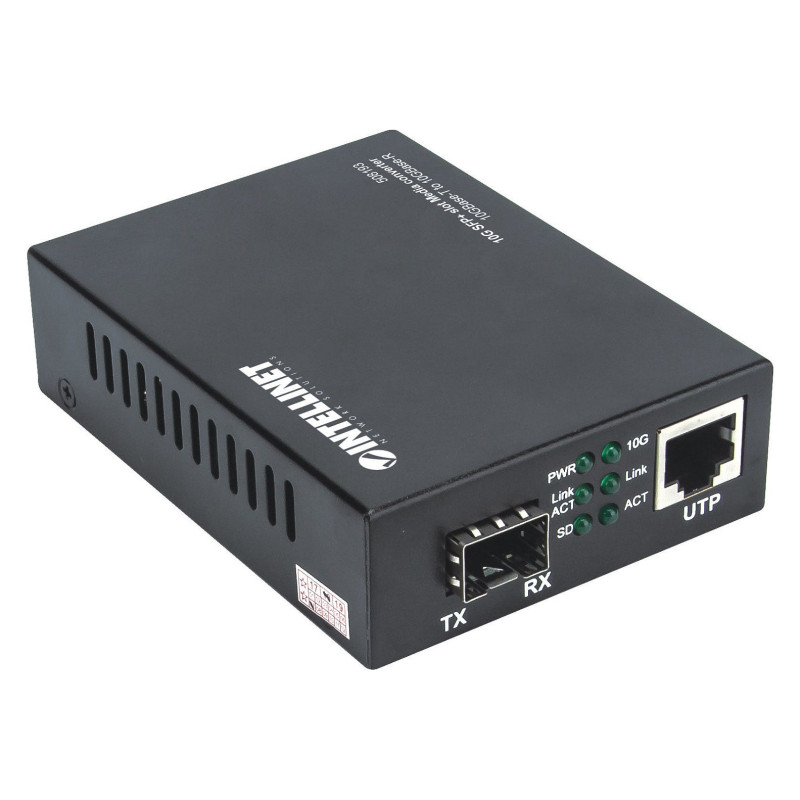

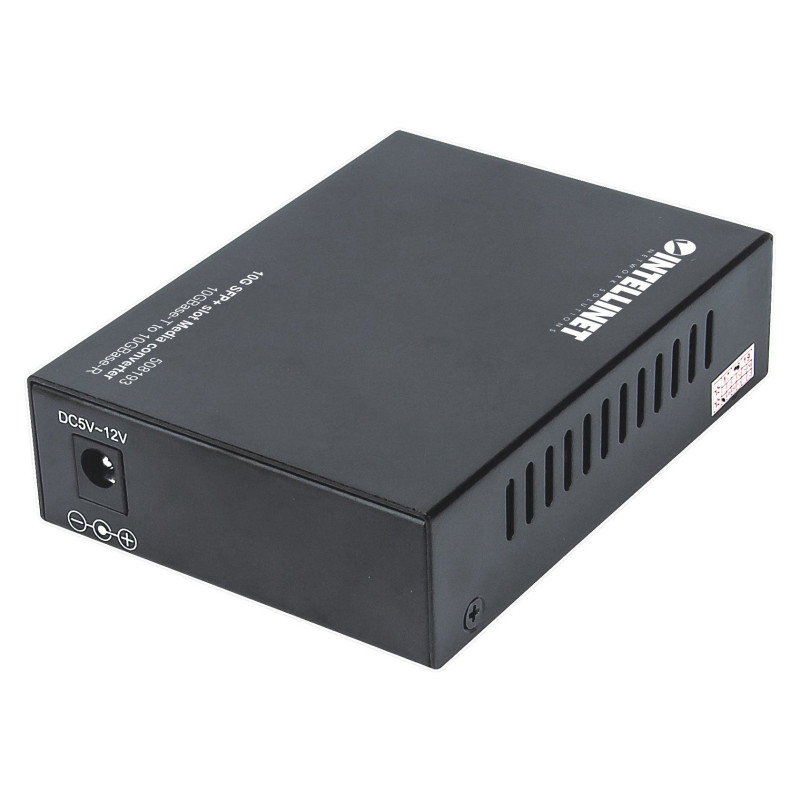

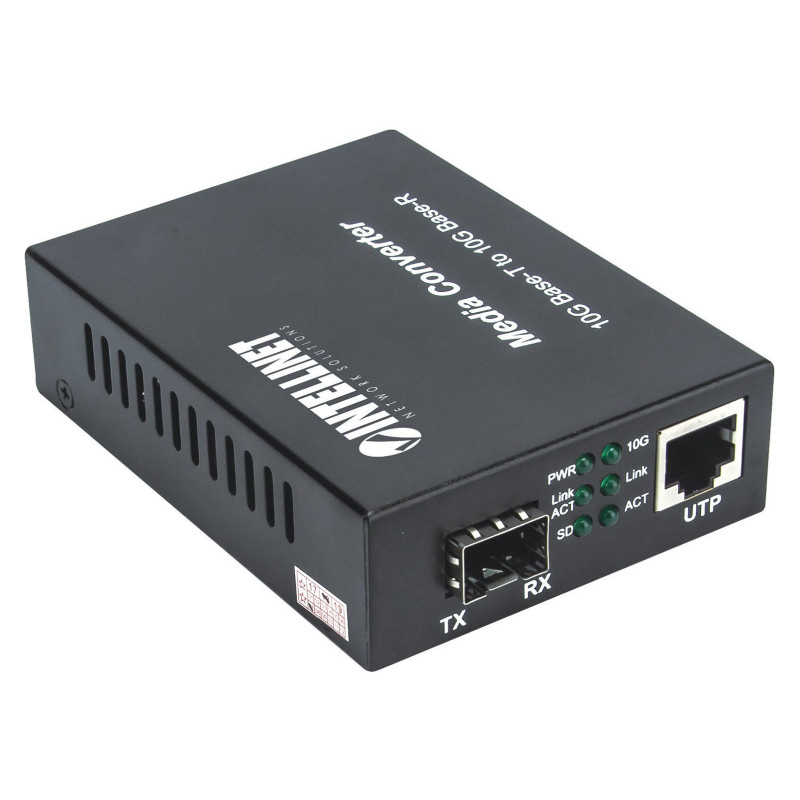

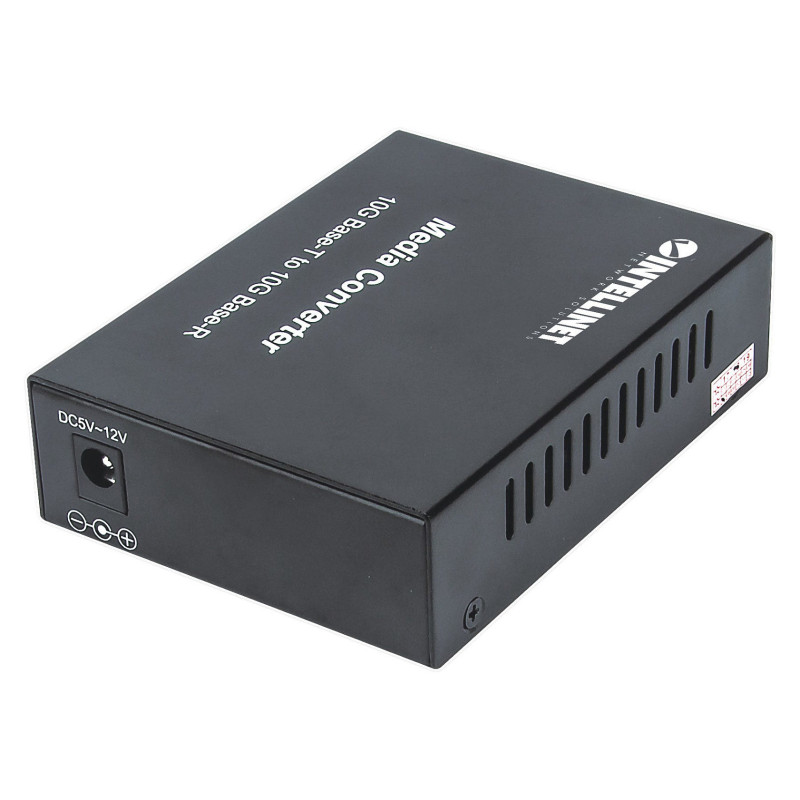

Intellinet 508193 network media converter

Intellinet 10GBase-T to 10GBase-R Media Converter, 1 x 10 GB SFP+ Slot, 1 x 10GB RJ45 Port. Maximum data transfer rate: 10000 Mbit/s, Networking standards: IEEE 802.3u, Ethernet interface type: 10 Gigabit Ethernet. Maximum transfer distance: 100 m. LED indicators: Activity, Link, Product colour: Black, Housing material: Metal. Fiber optic connector: SFP+, Connectivity technology: Wired. Input voltage: 12 V, Input current: 0.5 A, Power consumption (max): 5 W

The Intellinet Network Solutions 10GBase-T to 10GBase-R Media Converter offers the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and Fibre media. And with a super-fast 10 Gbps connection, network speed stays constant for high-bandwidth data transfers._x000D_
_x000D_
Expand The size of an existing network._x000D_
_x000D_
The 10GBase-T to 10GBase-R Media Converter Provides fibre connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers._x000D_
_x000D_
Enhance the distance between networking devices._x000D_
_x000D_
Connecting the converter to fibre segments further extends distances between network nodes, offering increased spatial and distance options for networks where none existed before._x000D_
_x000D_
Cabling Flexibility_x000D_
_x000D_
Network managers can install fibre cabling anywhere within a network without changing the arrangement of their copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rackmountable chassis, providing much-needed flexibility for networks.

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3u
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,1200,2500,5000,10000 Mbit/s
Feature: Auto-negotiation
Duplex system: Full, Half

Performance

Maximum transfer distance: 100 m

Features

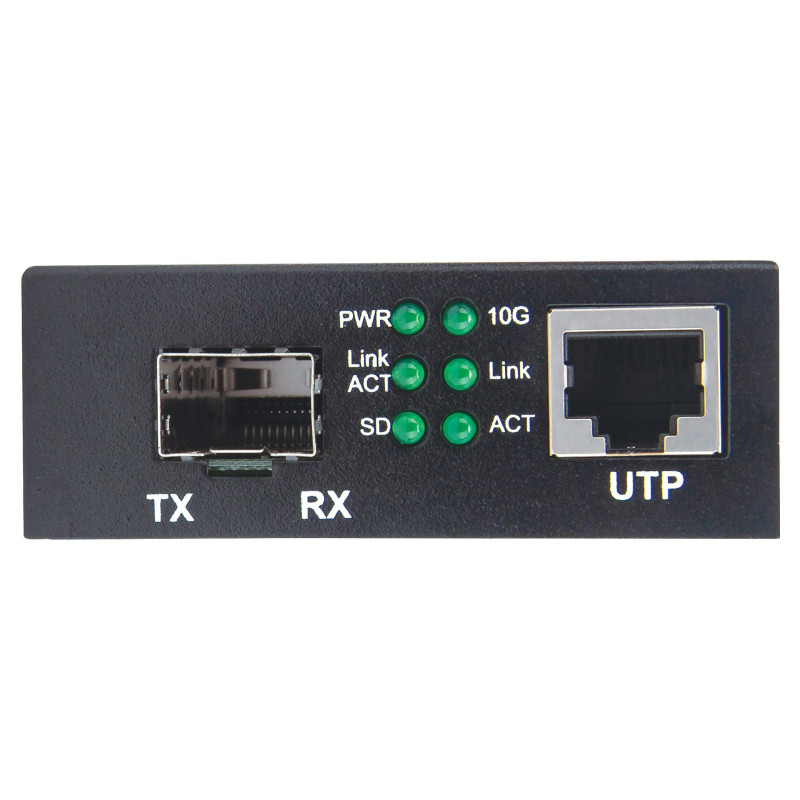

LED indicators: Activity, Link
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+

Power

Input voltage: 12 V
Input current: 0.5 A
Power consumption (max): 5 W
Feature: External power adapter

Weight & dimensions

Width: 70 mm
Depth: 95 mm
Height: 25 mm
Weight: 200 g

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 80%

Packaging content

Feature: Manual

Logistics data

Harmonized System (HS) code: 85176990
