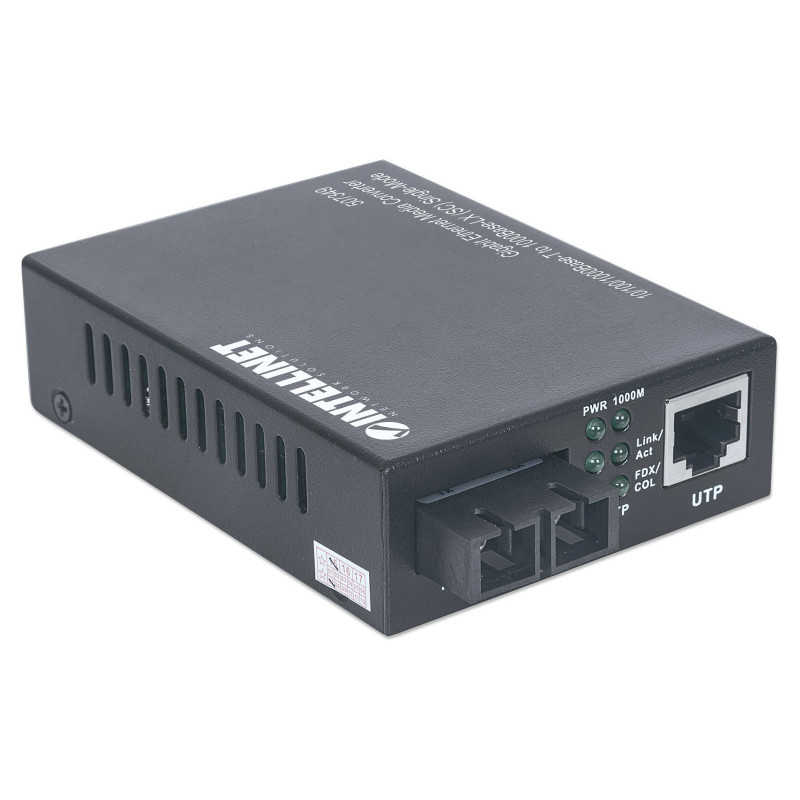

Intellinet 507349 network media converter

Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-LX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Housing material: Metal. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1.2 A, Power consumption (max): 5 W

The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. _x000D_
_x000D_
Expands the Size of an Existing Network _x000D_
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. _x000D_
_x000D_
Enhances the Distance between Networking Devices _x000D_
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. _x000D_
_x000D_
Cabling Flexibility _x000D_
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19"; rack-mountable chassis (model 507356).

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-T
Converter output interface: 1000Base-LX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology: 1000BASE‑LX
Duplex system: Full

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Fiber cable diameters supported (core/cladding): 8.3/125,8.7/125,8/125,10/125 µm
Tx power (min): -8 dBmW
Tx power (max): -3 dBmW
Sensitivity: -22 dBmW
Mean time between failures (MTBF): 100000 h

Features

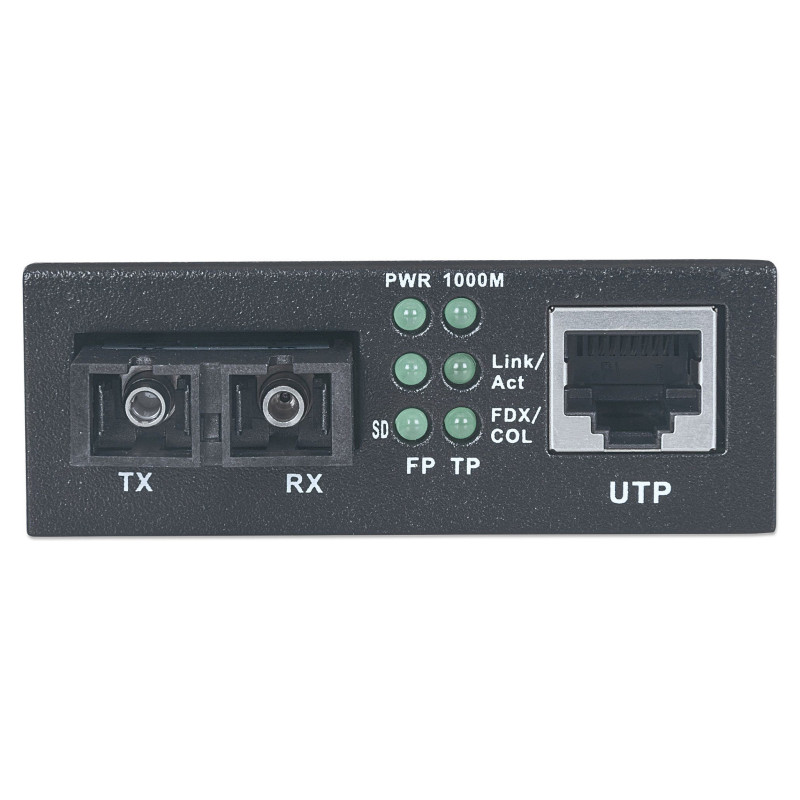

LED indicators: Yes
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

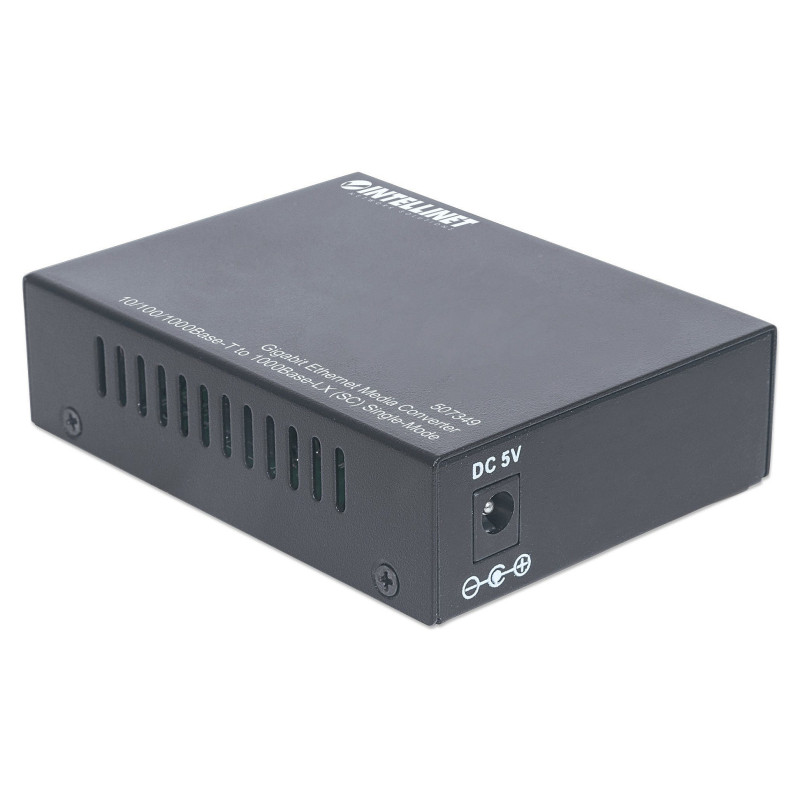

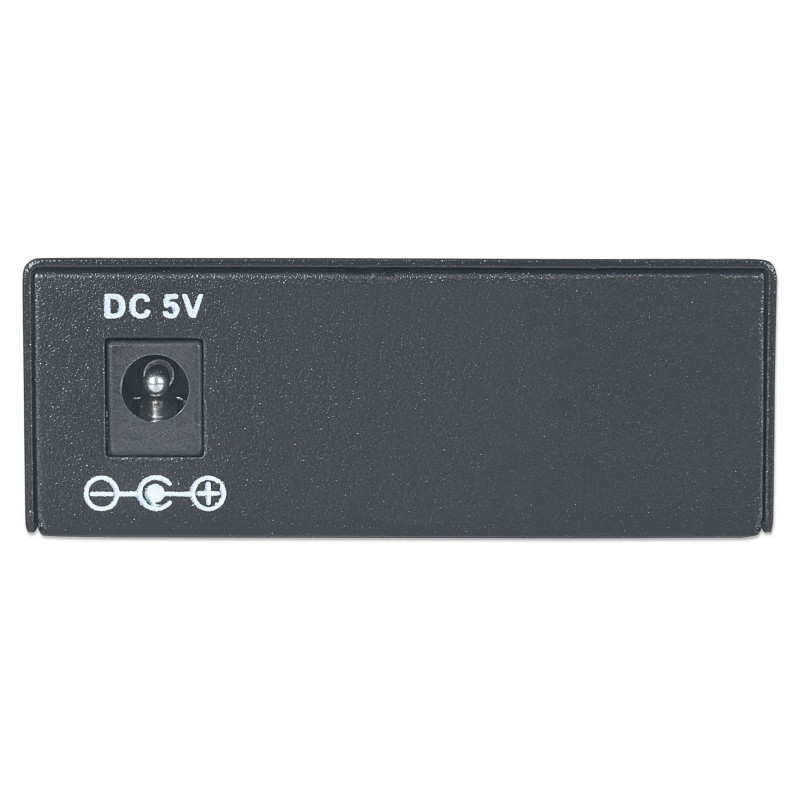

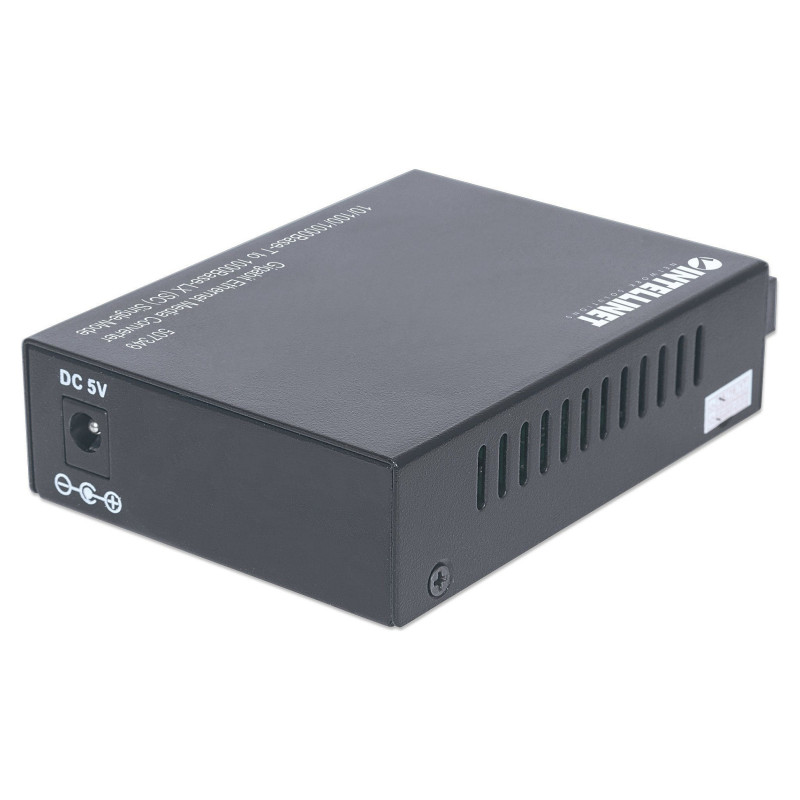

Feature: DC-in jack

Power

Output voltage: 5 V
Output current: 1.2 A
Power consumption (max): 5 W
Feature: External power adapter

Weight & dimensions

Width: 70 mm
Depth: 105 mm
Height: 26 mm
Weight: 180 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -45 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Packaging content

Feature: AC adapter included
Feature: Manual

Certificates

Certification: FCC Class B, CE

Logistics data

Harmonized System (HS) code: 85176990
