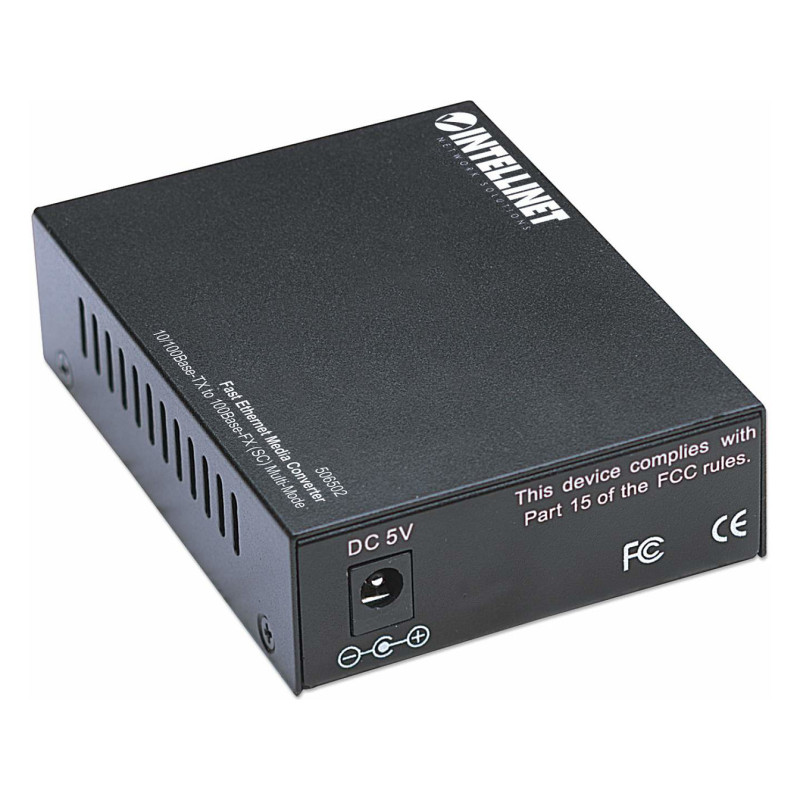

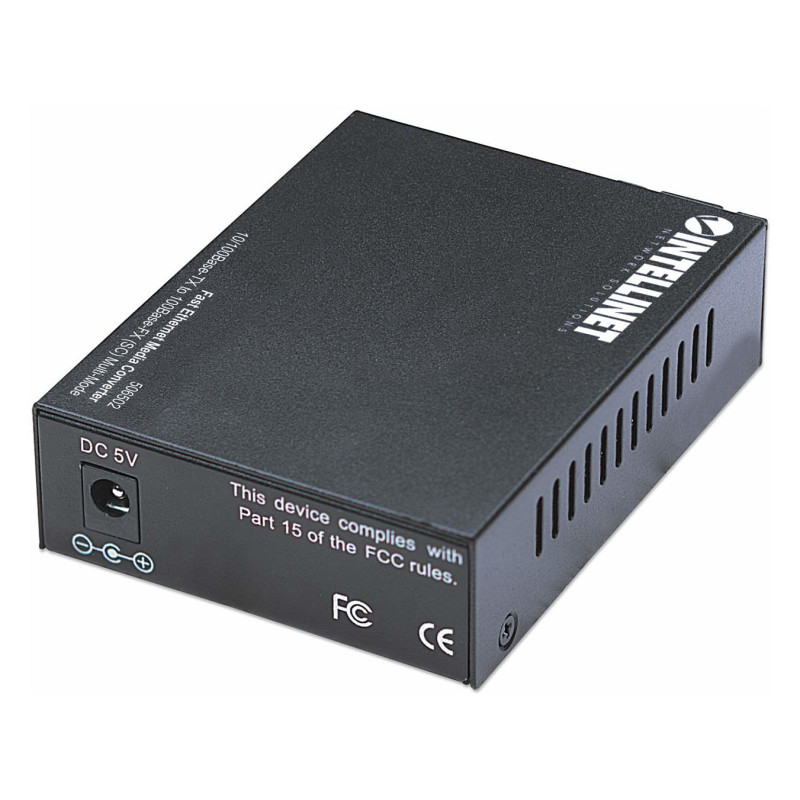

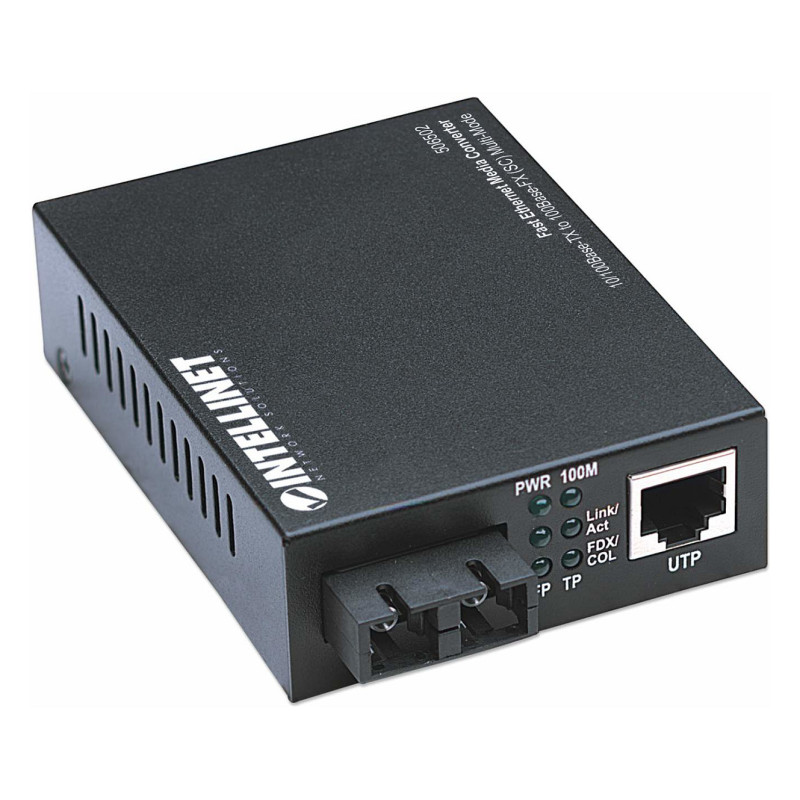

Intellinet 506502 network media converter

Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Multi-Mode, 2 km (1.24 mi). Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet interface type: Fast Ethernet. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Status, Product colour: Black, Housing material: Metal. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (max): 2.5 W

The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.

Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Network

Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full, Half

Performance

Maximum transfer distance: 2000 m
Wavelength: 1310 nm
Fiber mode structure: Multi-mode
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Tx power (min): -22 dBmW
Tx power (max): -12 dBmW
Sensitivity: -30 dBmW

Features

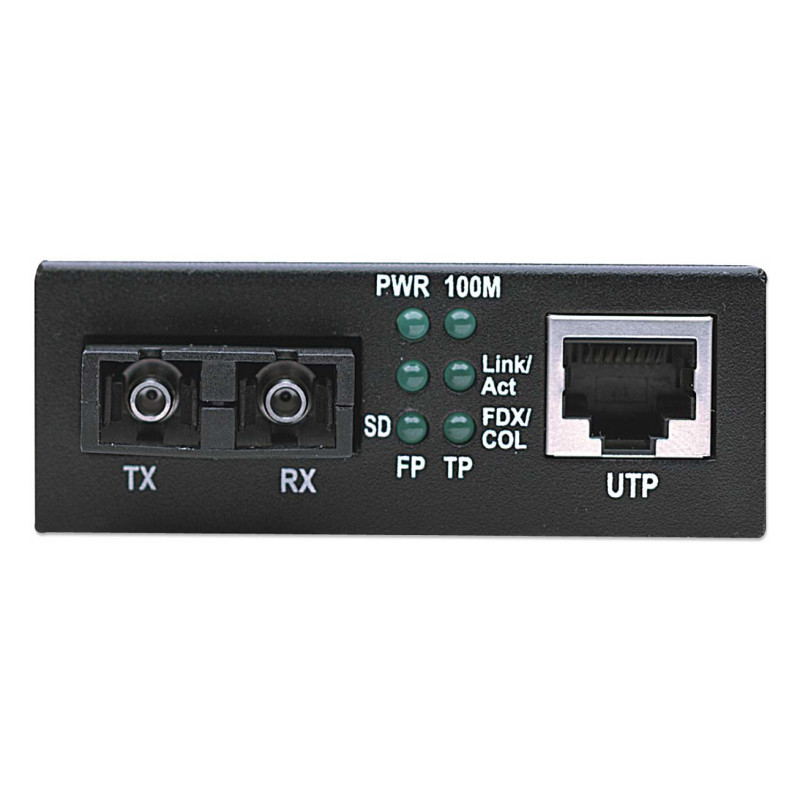

LED indicators: LAN, Link, Power, Status
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

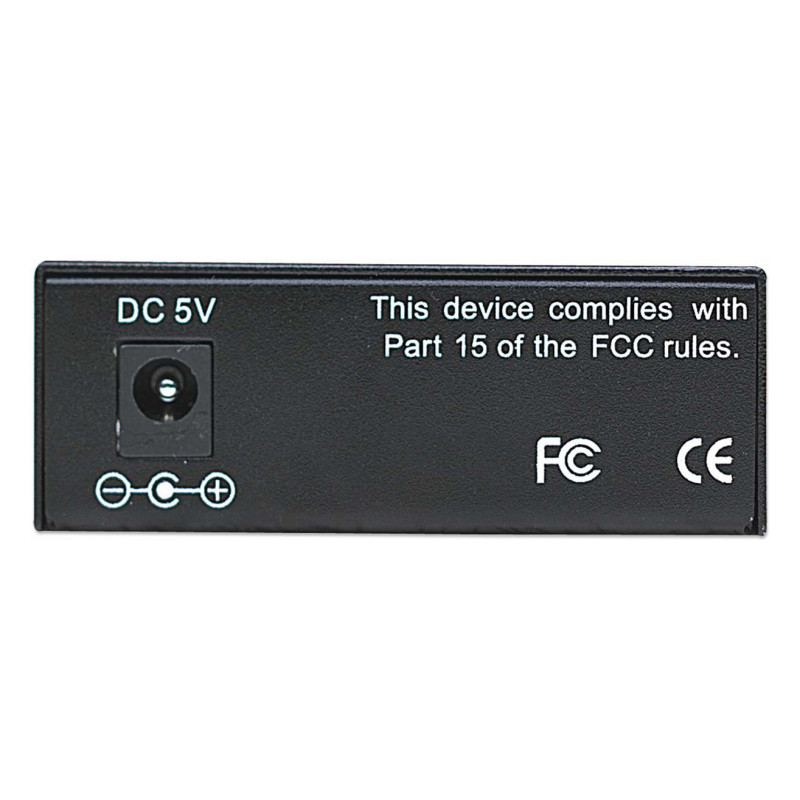

Feature: DC-in jack

Power

Input voltage: 5 V
Input current: 1 A
Power consumption (max): 2.5 W
Feature: External power adapter

Weight & dimensions

Width: 70 mm
Depth: 107 mm
Height: 26 mm
Weight: 500 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -45 - 80 °C
Operating relative humidity (H-H): 10 - 90%

Packaging content

Feature: AC adapter included
Feature: Manual

Packaging data

Package type: Box

Certificates

Certification: FCC Class B, CE, UKCA, NDAA

Logistics data

Harmonized System (HS) code: 85176990
