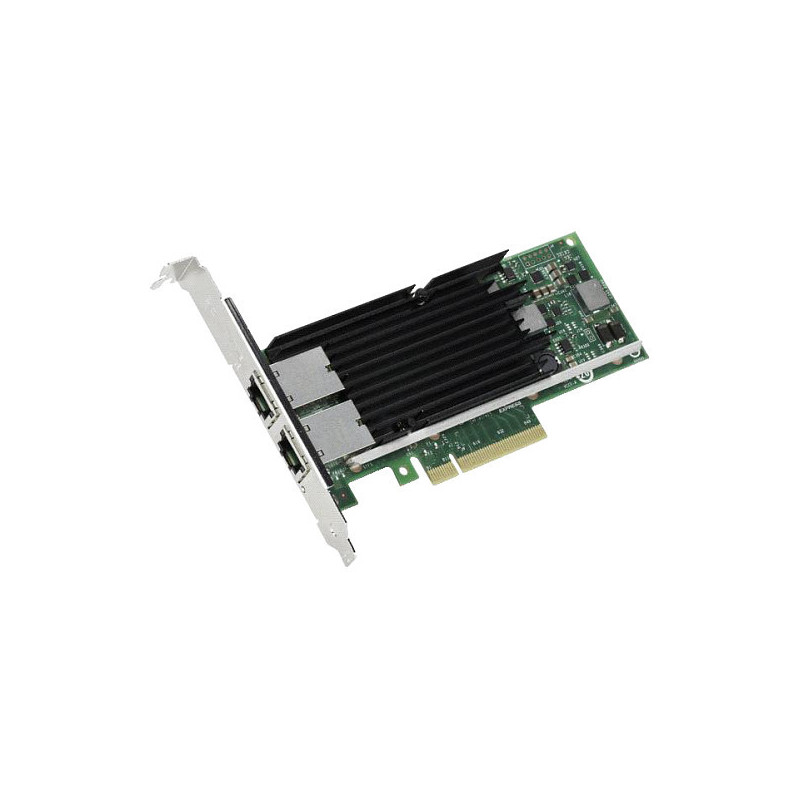

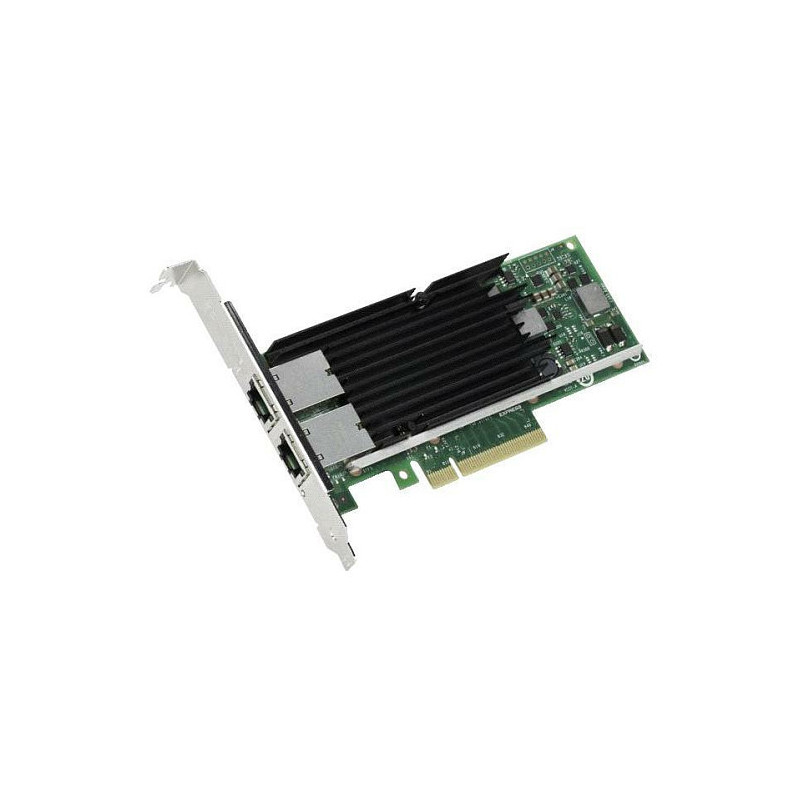

Intel X540T2 network card

Intel X540T2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s
10GBASE-T Converged Network Adapter Simplifies Migration to 10GbE
Provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning
10 Gigabit for the Broad Market
The Intel® Ethernet Converged Network Adapter X540-T2 is the latest innovation in Intel's leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel's latest Ethernet silicon, the Intel® Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms.
10GBASE-T Simplifies the Transition to 10GbE
The X540 family of products works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and CAT-6a cabling. Install the X540 adapter into a server and the auto-negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.
10GBASE-T uses the copper twisted pair cables that are very familiar to IT professionals today. It is everything you know and love about 1000BASE-T. The knowledge, training and investment in BASE-T are preserved. 10GBASE-T is the easiest and most versatile 10 GbE and you can deploy it anywhere in your data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR).
10G Performance at Low Cost and Low Power
The new Intel® Ethernet Converged Network Adapter X540-T2 is the lowest cost way to deploy 10 GbE in your data center today. The X540-T2 uses low cost, CAT-6 and CAT-6a cabling. Chances are this cabling already exists in the data center.

Ports interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 2
PCI version: 2.1
PCI Card form factor: Half-height (low-profile)

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000,10000 Mbit/s
Quality of Service (QoS) support: Yes
Maximum operating distance: 100 m
LAN controller: Intel® X540

Design

Internal: Yes
Chipset: X540

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Windows operating systems supported: Yes
Linux operating systems supported: Yes

Logistics data

Harmonized System (HS) code: 8517620090

Other features

Cable type: RJ45 Category 6 up to 55 m; Category 6A up to 100 m
Market segment: Server
Intel® Virtualization Technology (Intel® VT): VT-c
Thermal power: 13.4 W
Intel Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes
On-chip QoS and Traffic Management: Yes
Intel Flexible Port Partitioning: Yes
Speed slot width: 5.0 GT/s, x8 Lane
Low halogen options available: No
Intelligent Offloads: Yes
iWARP/RDMA: No
Intel Ethernet Power Management: No
Intel Data Direct I/O Technology: Yes
Intel Virtualization Technology for Connectivity (VT-c): Yes
Interface type: PCIe v2.1 (5.0 GT/s)
Product type: Network Interface Card
Thermal Design Power (TDP): 13.4 W
Number of QPI links: Dual
Launch date: Q1'12
Ethernet adapter ARK ID: 58954
Storage Over Ethernet: iSCSI, FCoE, NFS
Export Control Classification Number (ECCN): 5A992C
Born on date: Q1'12
Network interface card cable medium: Copper
Network interface card type: Server
Product brief URL: http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html
Product name: Intel Ethernet Converged Network Adapter X540-T2
Status: Launched
Last change: 64826822
Commodity Classification Automated Tracking System (CCATS): G135872
Controller type: Intel® Ethernet Controller X540
Cabling type: RJ45 Category 6 up to 55 m; Category 6A up to 100 m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel 10 Gigabit server adapter
Product series: 500 Series Network Adapters (up to 10GbE)
