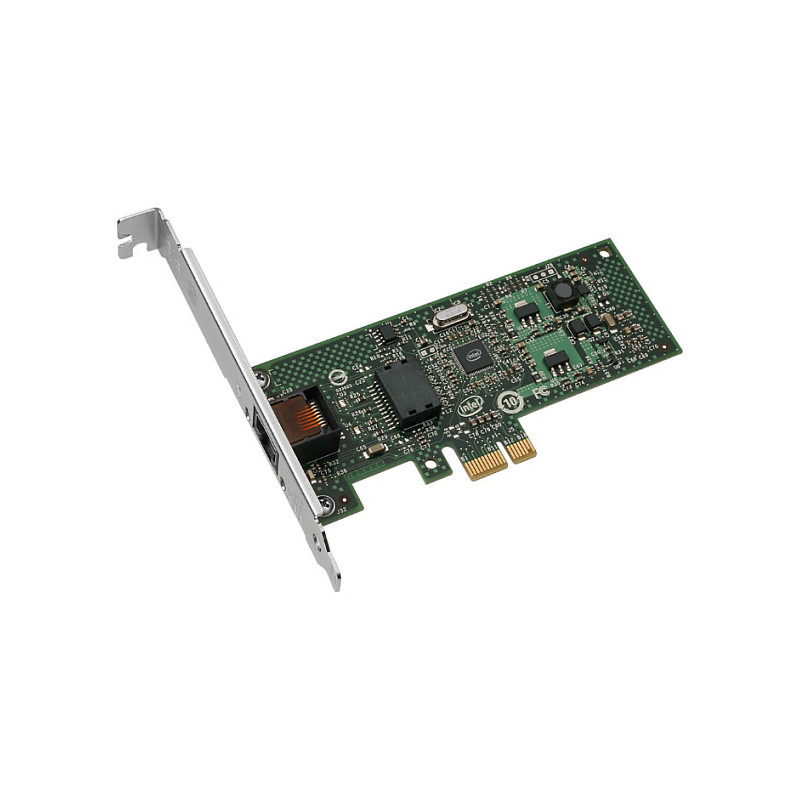

Intel EXPI9301CTBLK network card

Intel EXPI9301CTBLK. Internal. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 1000 Mbit/s

For PCs with PCI Express (PCIe*) slots, the Intel® Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel® 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Ethernet LAN (RJ-45) ports: 1
PCI version: 1.1

Network

Maximum data transfer rate: 1000 Mbit/s
Maximum operating distance: 100 m
LAN controller: Intel® 82574L

Design

Feature: Internal
Certification: FCC B, UL, CE

Power

Power consumption (typical): 1.9 W

System requirements

Compatible operating systems: Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 55.3 mm
Depth: 119.2 mm
Height: 120 mm

Logistics data

Harmonized System (HS) code: 85176990

Other features

Compliance industry standards: 802.3z
Cable type: Category-5 up to 100m
Market segment: Desktop
Supported data transfer rates: 10/100/1000 Mbit/s
Speed & slot width: 2.5 GT/s, x1 Lane
Interface type: PCIe v1.1 (2.5 GT/s)
Product type: Network Interface Card
Thermal Design Power (TDP): 1.9 W
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID: 50395
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Launch date: Q3'08
Network interface card cable medium: Copper
Network interface card type: Desktop
Product brief URL: http://www.intel.com/Assets/PDF/prodbrief/319831.pdf
Status: Launched
Last change: 63903513
Controller type: Intel 82574L
Cabling type: Category-5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product family: Intel Gigabit desktop adapter
Product series: Intel Gigabit CT
Product codename: Shelter Island
