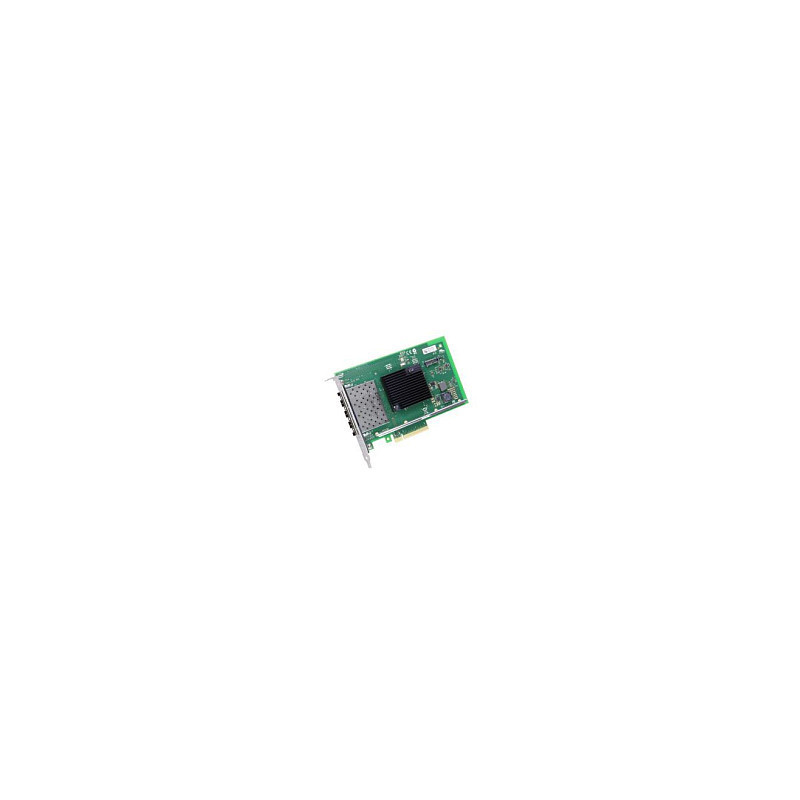

Intel X710-DA4

Intel X710-DA4. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 4
PCI Card form factor: Half-height (low-profile)

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 1000,10000 Mbit/s
Cabling technology: 10GBase-T
Feature: VLAN tagging
Feature: iSCSI support
LAN controller: Intel® XL710-AM1

Design

Product colour: Black, Green
Feature: Internal

System requirements

Compatible operating systems: intel.com/support/EthernetOS
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 0 - 90%

Logistics data

Harmonized System (HS) code: 85176990

Other features

Data transfer rate: 8 GT/s
Cable type: SFP+ Direct Attached Twin Axial Cabling up to 10m
Number of VLANs: 4096
Feature: Intel Virtual Machine Device Queues (VMDq)
Feature: PCI-SIG* SR-IOV Capable
Feature: On-chip QoS and Traffic Management
Feature: Intel Flexible Port Partitioning
Feature: Intelligent Offloads
Feature: Intel Ethernet Power Management
Feature: Intel Data Direct I/O Technology
Feature: Intel Virtualization Technology for Connectivity (VT-c)
Interface type: PCIe v3.0 (8.0 GT/s)
Product type: 13
Status: Launched
Ethernet adapter ARK ID: 83965
Product family: Intel 10 Gigabit server adapter
Product series: Intel Converged X710
Product codename: Fortville
