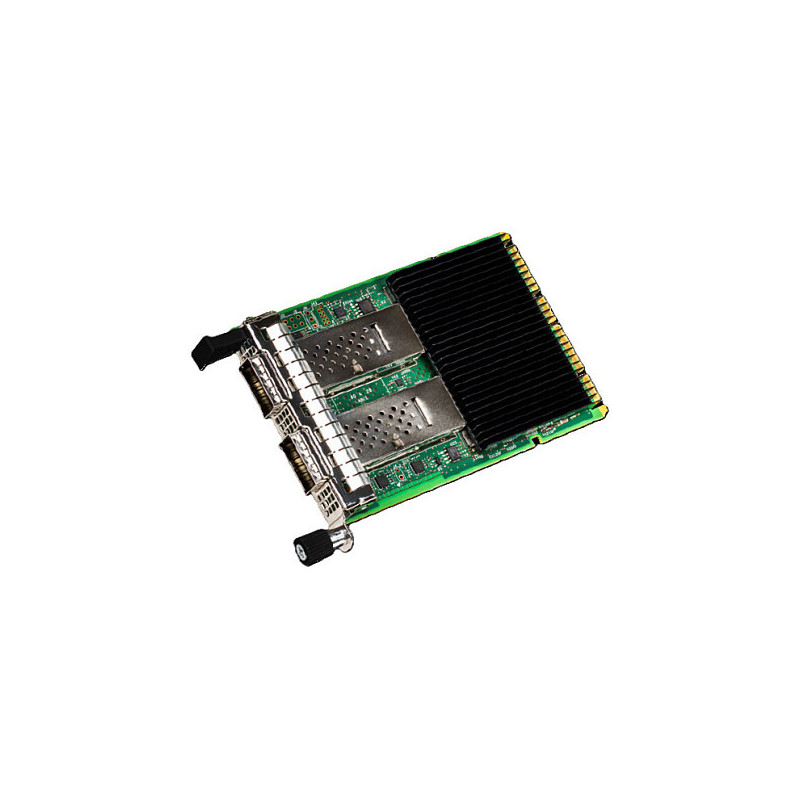

Intel E810CQDA2OCPV3 network card

Intel E810CQDA2OCPV3. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 100000 Mbit/s. Product colour: Black, Green, Grey

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 2
Fiber optic connector: QSFP28
PCI version: 4.0

Network

Maximum data transfer rate: 100000 Mbit/s
Networking standards: IEEE 1588
Feature: Ethernet LAN
Ethernet interface type: 100 Gigabit Ethernet
Ethernet LAN data rates: 1000,10000,25000,50000,100000 Mbit/s
LAN controller: Intel E810

Design

Component for: Server
Product colour: Black, Green, Grey
Feature: Internal
LED indicators: Activity, Speed

System requirements

Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html

Operational conditions

Operating temperature (T-T): 0 - 65 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 115 mm
Depth: 76 mm

Logistics data

Harmonized System (HS) code: 85176990

Other features

Cable type: QSFP28 ports - DAC, Optics, AOC's
Feature: Intel Virtual Machine Device Queues (VMDq)
Feature: PCI-SIG* SR-IOV Capable
Feature: On-chip QoS and Traffic Management
Feature: Intel Flexible Port Partitioning
Speed & slot width: 16.0 GT/s, x16 Lane
Feature: Intelligent Offloads
Feature: iWARP/RDMA
Feature: Intel Data Direct I/O Technology
Feature: Intel Virtualization Technology for Connectivity (VT-c)
Processor family: 800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Storage Over Ethernet: iSCSI, NFS
Launch date: Q3'20
Network interface card cable medium: Copper
Network interface card type: Server
Status: Launched
Export Control Classification Number (ECCN): 5A991
Commodity Classification Automated Tracking System (CCATS): NA
Bracket height: OCP 3.0
Product series: 800 Series Network Adapters (up to 100GbE)
