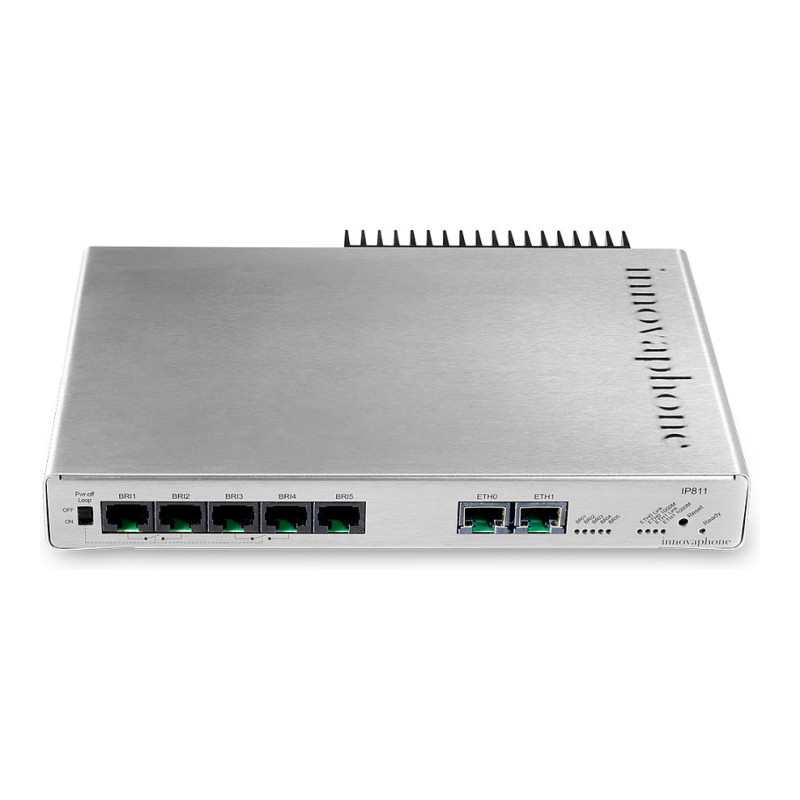

Innovaphone IP811 gateway / controller

Innovaphone IP811. Voice codecs: G.711, G.722, G.723.1, G.729A, Channels quantity: 10 channels. Processor frequency: 800 MHz, Internal memory: 2048 MB, Flash memory: 32 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X). Interface: ISDN-BRI. Power consumption (typical): 2.5 W

Future proof hardware concept including conferencing channels.

The IP811, which replaces both the old IP800 and the IP810 with five BRI ports and ten conference channels, is a powerful mid-range gateway that meets all the requirements placed on a modern PBX and Unified Communications platform.

- Successor of the IP800 and IP810
- Recommended for "all in one box" - PBX and UC installations up to 200 users
- Powerful processor and large memory
- 10 voice channels (5 BRI)
- 10 conference channels possible

Design

LED indicators: Yes

Features

Voice codecs: G.711, G.722, G.723.1, G.729A
Channels quantity: 10 channels

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Internal memory: 2048 MB
Flash memory: 32 MB

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)

Ports & interfaces

Interface: ISDN-BRI
Ethernet LAN (RJ-45) ports: 2

Power

Power consumption (typical): 2.5 W
Feature: Power over Ethernet (PoE)

Weight & dimensions

Weight: 1.05 kg
Dimensions (WxDxH): 210 x 134 x 32 mm

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Certificates

Certification: EN 55022:2010 + AC:2011(Class B)EN 55024:2010EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
