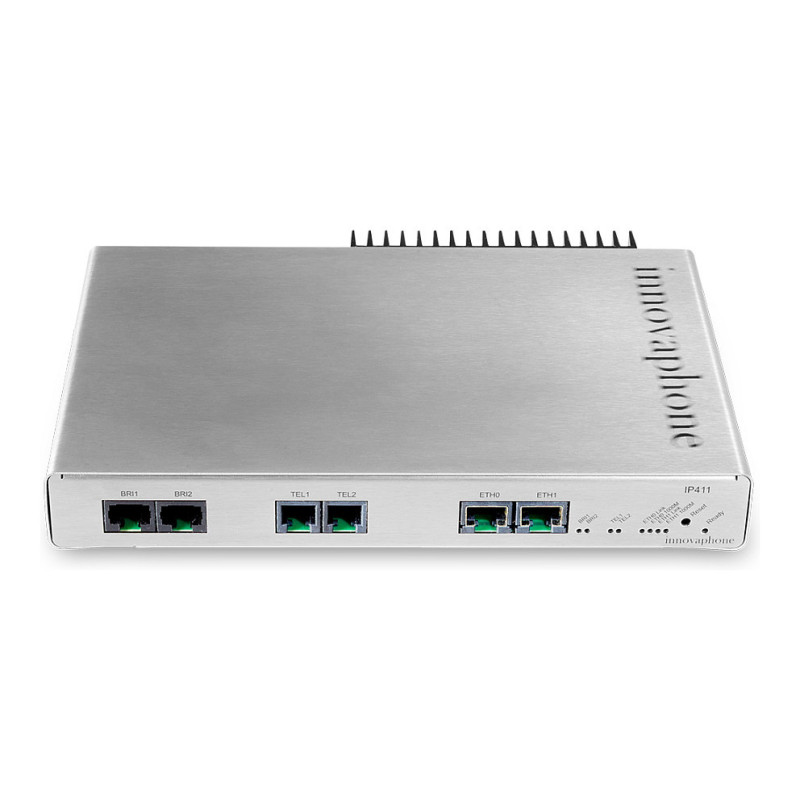

Innovaphone IP411 gateway / controller

Innovaphone IP411. Product colour: Grey, Rack capacity: 1U. Voice codecs: G.711, G.722, G.723.1, G.729A, Channels quantity: 6 channels. Processor frequency: 400 MHz, Internal memory: 1024 MB, Flash memory: 32 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X). Power consumption (typical): 2.5 W

The IP411 has two BRI interfaces to the trunk, in addition to internal analog ports. This gateway already comprises all interface licenses (hardware). It offers the possibility to operate PBX and UC on one box for ISDN lines or All IP. The IP411 can further be retrofitted with software-based conference channels, using Soft Conferencing.

Design

Product colour: Grey
Rack capacity: 1U
LED indicators: Yes

Features

Voice codecs: G.711, G.722, G.723.1, G.729A
Channels quantity: 6 channels

Performance

Feature: Built-in processor
Processor frequency: 400 MHz
Number of processors installed: 1
Internal memory: 1024 MB
Flash memory: 32 MB

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Foreign eXchange Station (FXS) ports quantity: 2
RJ-11 ports quantity: 2

Power

Power consumption (typical): 2.5 W
Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 210 mm
Depth: 148 mm
Height: 32 mm
Weight: 825 g
Dimensions (WxDxH): 210 x 134 x 32 mm

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Certificates

Certification: EN 55022:2010 + AC:2011(Class B)EN 55024:2010EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
