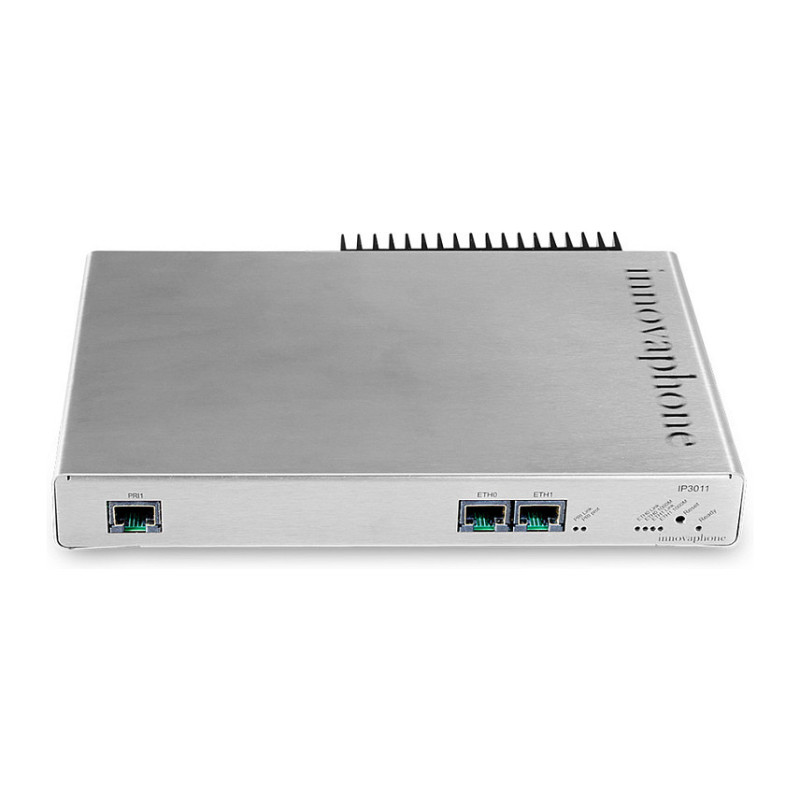

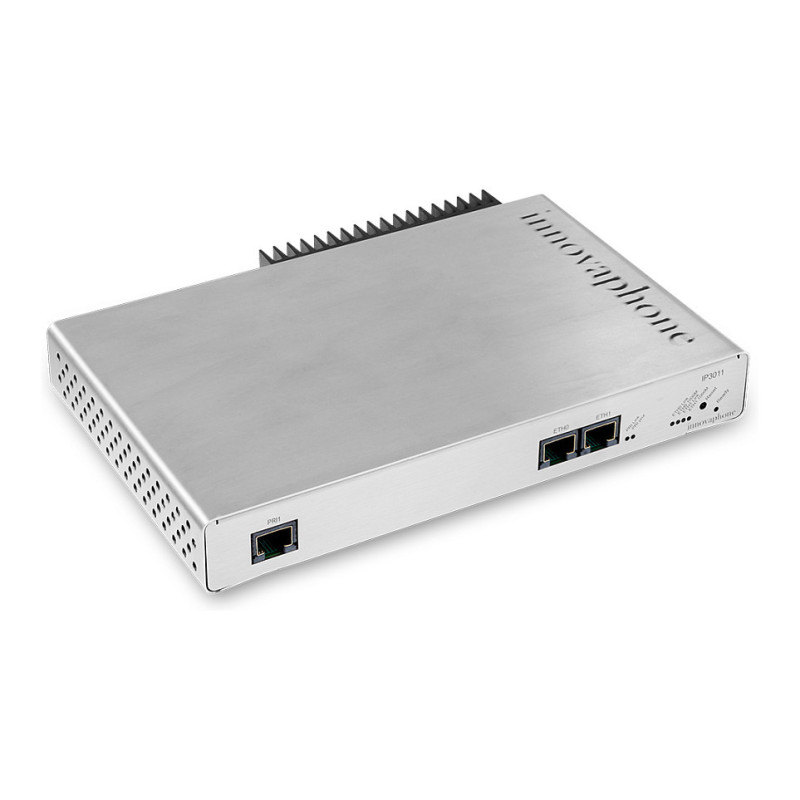

Innovaphone IP3011 gateway / controller

Innovaphone IP3011. Voice codecs: G.711, G.722, G.723.1, G.729A, Channels quantity: 30 channels. Processor frequency: 800 MHz, Internal memory: 2048 MB, Flash memory: 32 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X). Interface: PRI ISDN. Weight: 1.05 kg, Dimensions (WxDxH): 210 x 134 x 32 mm
The IP3011 replaces the IP3010 and has 1 PRI interface to the trunk and also has 30 conference channels.
- Successor of the IP3010
- Recommended for "all in one box" - PBX and UC installations up to 500 users
- 30 voice channels (1 PRI)
- 30 conference channels possible

Design

LED indicators: Yes

Features

Voice codecs: G.711, G.722, G.723.1, G.729A
Channels quantity: 30 channels

Performance

Built-in processor: Yes
Processor frequency: 800 MHz
Number of processors installed: 1
Internal memory: 2048 MB
Flash memory: 32 MB

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Wireless connection: No

Ports interfaces

Interface: PRI ISDN
Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE): Yes

Weight dimensions

Weight: 1.05 kg
Dimensions (WxDxH): 210 x 134 x 32 mm

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Certificates

Certification: EN 55022:2010 + AC:2011(Class B)EN 55024:2010EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
