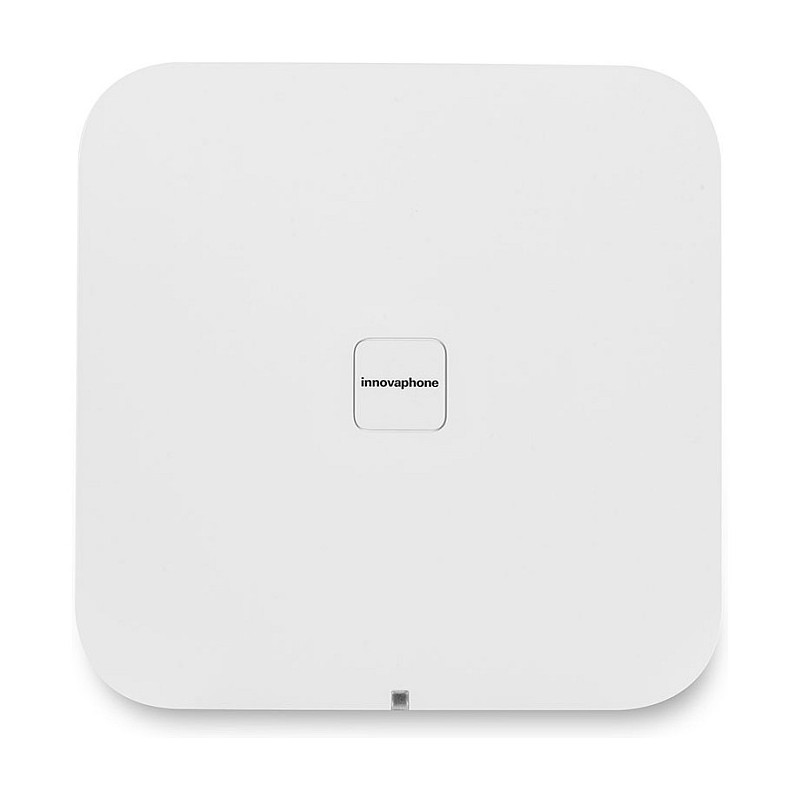

Innovaphone IP1203 gateway / controller

Innovaphone IP1203. Product colour: White, Enclosure material: Plastic, LED indicators: Status. Voice codecs: CNG, G.711alaw, G.711ulaw, G.722.2, G.729A, VAD, Channels quantity: 8 channels. Supported network protocols: STUN, TURN, RSTP, EAP-TLS/EAP-MD5 acc. to IEEE 802.1X,, VoIP protocols: H.323 Version 5, .323 over UDP, TCP, TLS, SIP Version 2, conform RFC 3261, SIP over UDP, TCP, TLS,.... Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, Frequency band: 1.88 - 1.9 GHz. Interface: GAP / CAP
The IP1203 is an IP DECT gateway (base station) which extends the innovaphone PBX to include DECT compatible subscribers. It is the successor of the IP1202 and compatible with all IP1202 models. The range of functions remains identical.
Different models cover all needs - from the single-cell 4 channel base station IP1203/4s to the IP1203e with multi-cell capability and eight channels available in parallel including a connector for external antennas - select the suitable base station for every area of use.
Concerning IP, the system is entirely H.323 and SIP compatible. It supports echo cancellation and a number of codecs for voice compression. The integrated High Assurance Boot (HAB) ensures that only authenticated codes are executed.
Concerning DECT, the system is GAP and CAP compliant. However, the handsets IP64 and IP65 from innovaphone are especially to be recommended. Both telephones are well-suited for parallel operation with fixed telephones. The features of the PBX can be used intuitively via the additional R key as a softkey. It can be used to quickly set up a second call, for switching and call transfer. It can also be used to set up three-party conference calls.

Design

Product colour: White
Enclosure material: Plastic
LED indicators: Status

Features

Voice codecs: CNG, G.711alaw, G.711ulaw, G.722.2, G.729A, VAD
Channels quantity: 8 channels

Protocols

Supported network protocols: STUN, TURN, RSTP, EAP-TLS/EAP-MD5 acc. to IEEE 802.1X,
VoIP protocols: H.323 Version 5, .323 over UDP, TCP, TLS, SIP Version 2, conform RFC 3261, SIP over UDP, TCP, TLS, RTP, SRTP (SDES, DTLS), RTCP, ICE

Network

Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.3af
Frequency band: 1.88 - 1.9 GHz
Number of concurrent sessions (max): 1000

Ports interfaces

Interface: GAP / CAP
Ethernet LAN (RJ-45) ports: 2

Management features

Web-based management: Yes

Power

Power consumption (max): 5 W
Power over Ethernet (PoE): Yes
DC input voltage: 21 - 56 V

Software

Software version: 13r1

Weight dimensions

Width: 170 mm
Depth: 174 mm
Height: 38 mm
Weight: 400 g

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -25 - 55 °C
Operating relative humidity (H-H): 15 - 90%

Technical details

Upgrade type: Administration software
