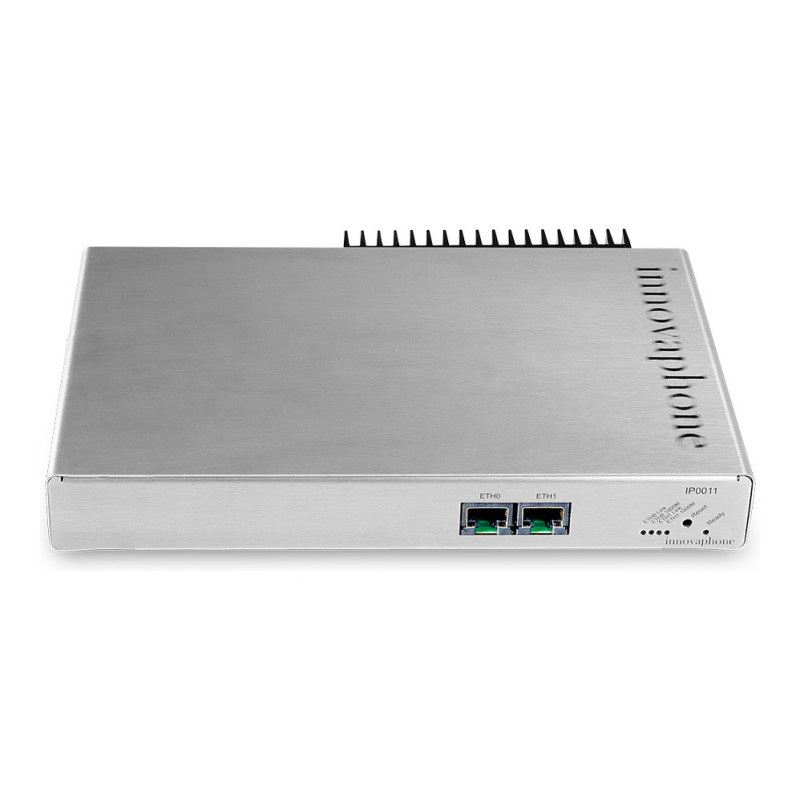

Innovaphone IP0011 gateway / controller

Innovaphone IP0011. Channels quantity: 15 channels. Processor frequency: 800 MHz, Internal memory: 2048 MB, Flash memory: 32 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X). Power consumption (typical): 2.5 W. Weight: 800 g, Dimensions (WxDxH): 210 x 134 x 32 mm

The "secret weapon" SBC, Reverse Proxy, Media Relay and PBX.

With the new IP0011 gateway, innovaphone now provides a well priced and performant platform for well-known and new applications, such as the innovaphone SBC or the innovaphone Reverse Proxy and the innovaphone PBX.

- Successor of the IP0010 with extended application possibilities
- Recommended for structured PBX and UC installations with up to 25,000 subscribers (if necessary, in combination with other gateways)
- Perfect as a platform for SBC or Reverse Proxy
- No conferences

Design

LED indicators: Yes

Features

Channels quantity: 15 channels

Performance

Feature: Built-in processor
Processor frequency: 800 MHz
Internal memory: 2048 MB
Flash memory: 32 MB

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power consumption (typical): 2.5 W
Feature: Power over Ethernet (PoE)

Weight & dimensions

Weight: 800 g
Dimensions (WxDxH): 210 x 134 x 32 mm

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Certificates

Certification: EN 55022:2010 + AC:2011(Class B)EN 55024:2010EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
