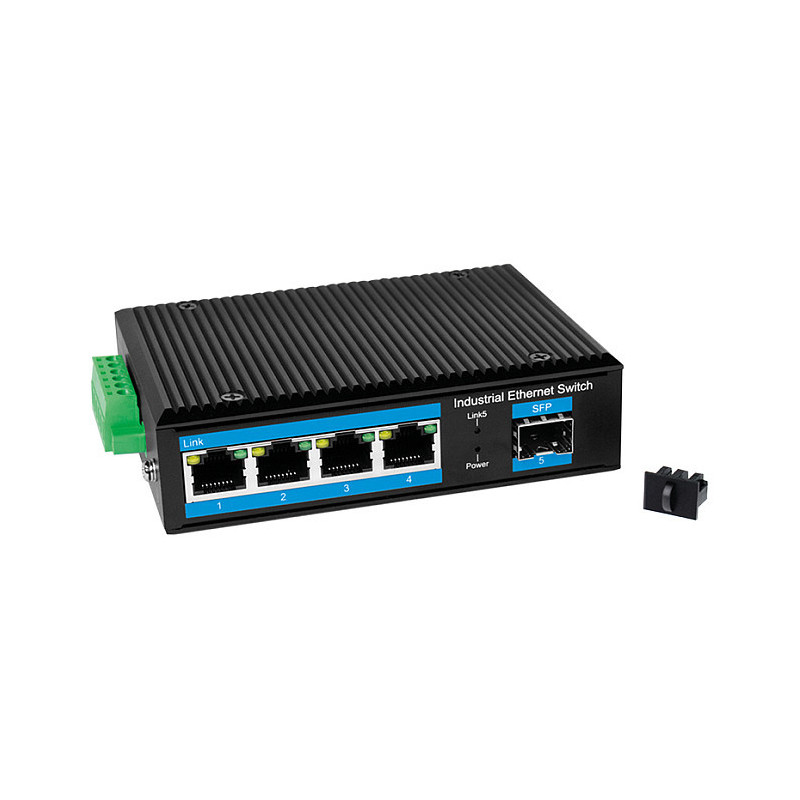

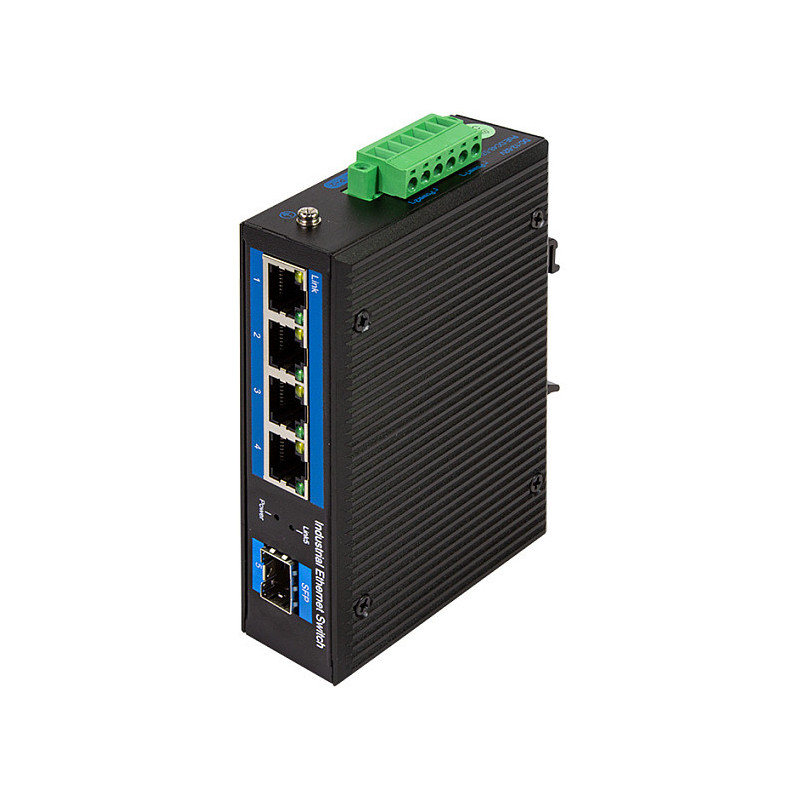

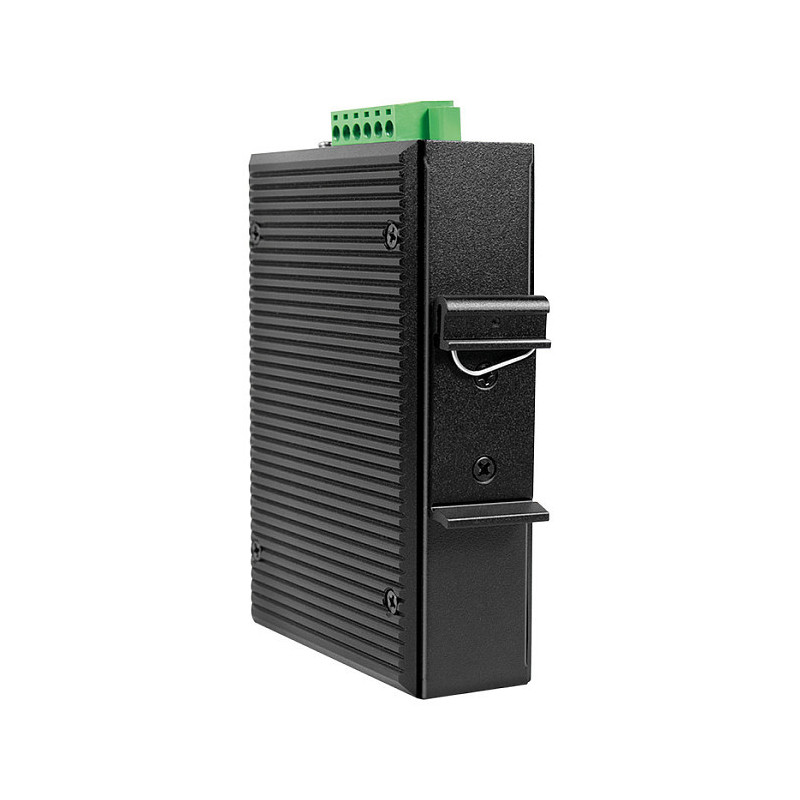

LogiLink NS204 network switch

LogiLink NS204. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 14 Gbit/s. Networking standards: IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 12 - 52 V. Wall mountable

The unmanaged Industrial Ethernet switches from LogiLink are particularly suitable for use in harsh environments thanks to the extended temperature range of -40-80 °C. These robust and compact devices enable the connection of several end devices, optionally with power supply via the same Ethernet patch cable (PoE). Due to their flexibility (Giga or Fast Ethernet, with or without PoE) and simplicity (plug-and-play, unmanaged), these switches are not only suitable for industrial applications.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u
Feature: Full duplex
Feature: Half duplex

Data transmission

Switching capacity: 14 Gbit/s
Forwarding rate: 10.5 Mpps
MAC address table: 2000 entries

Security

Feature: Access Control List (ACL)

Design

Product colour: Black
Housing material: Aluminium

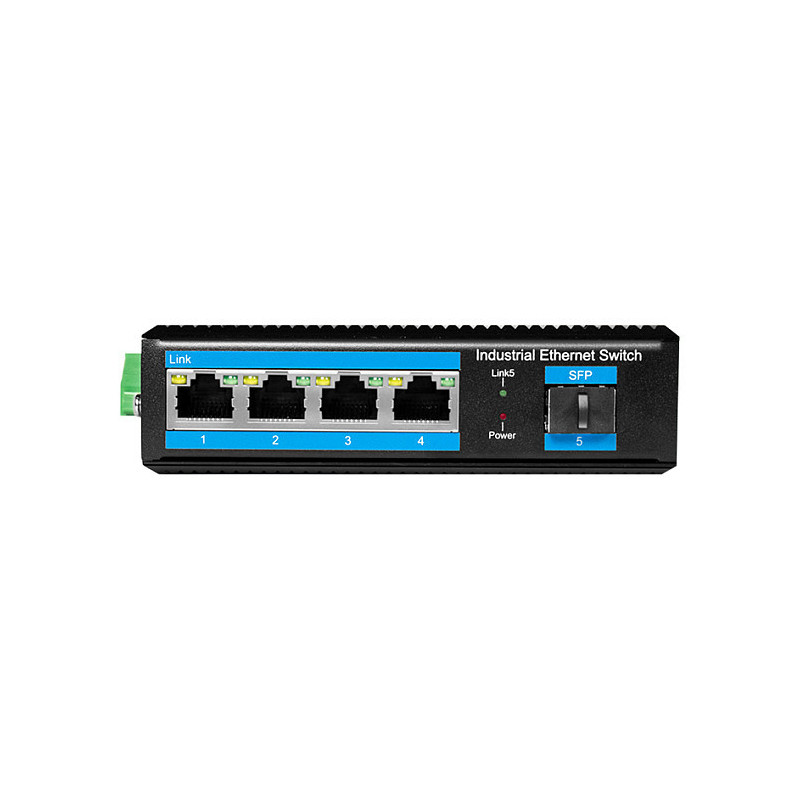

LED indicators: Activity, Link, Power

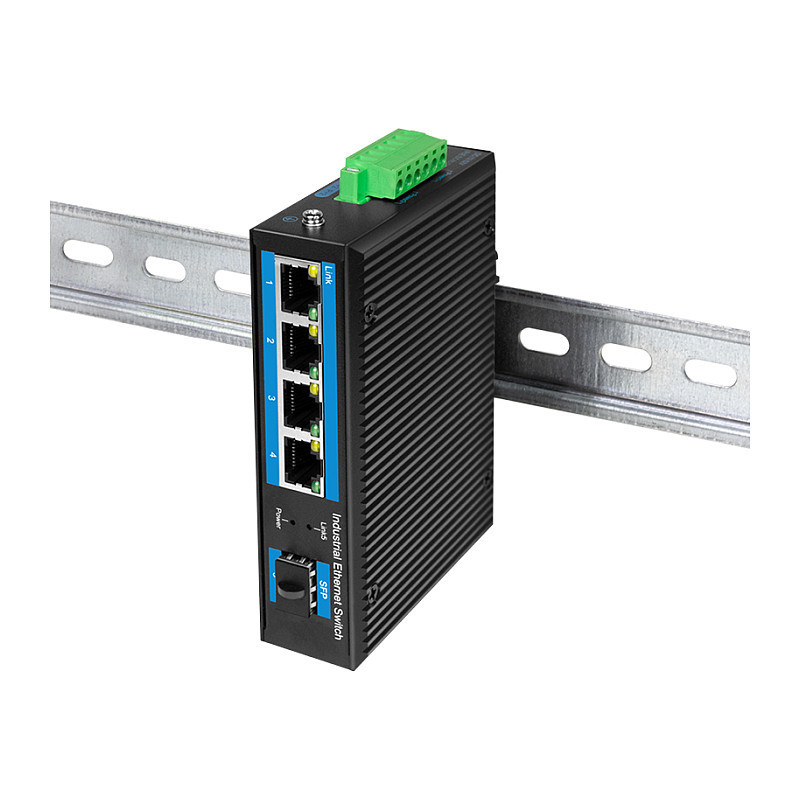

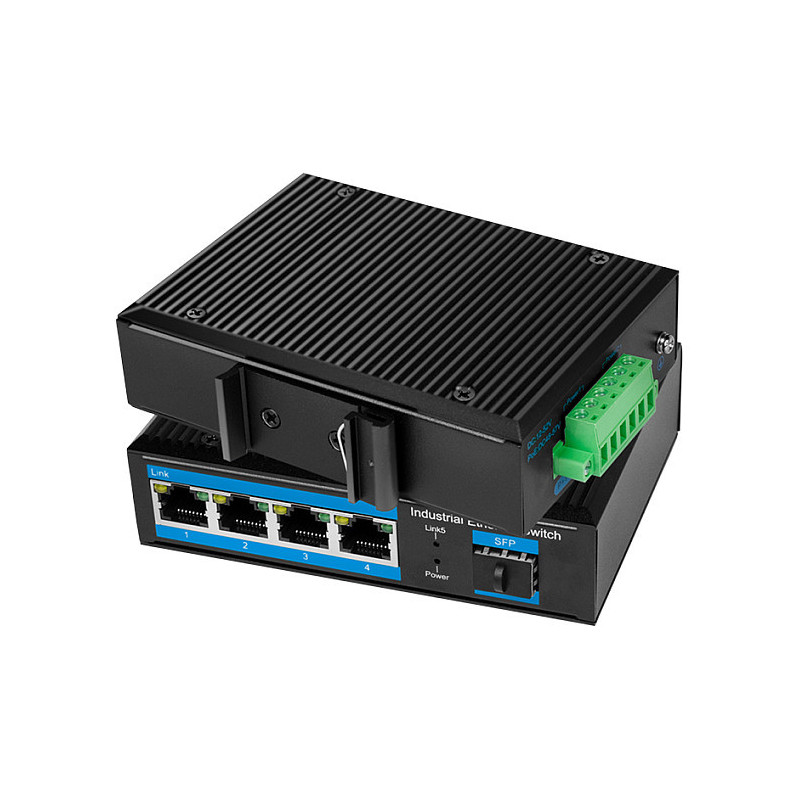

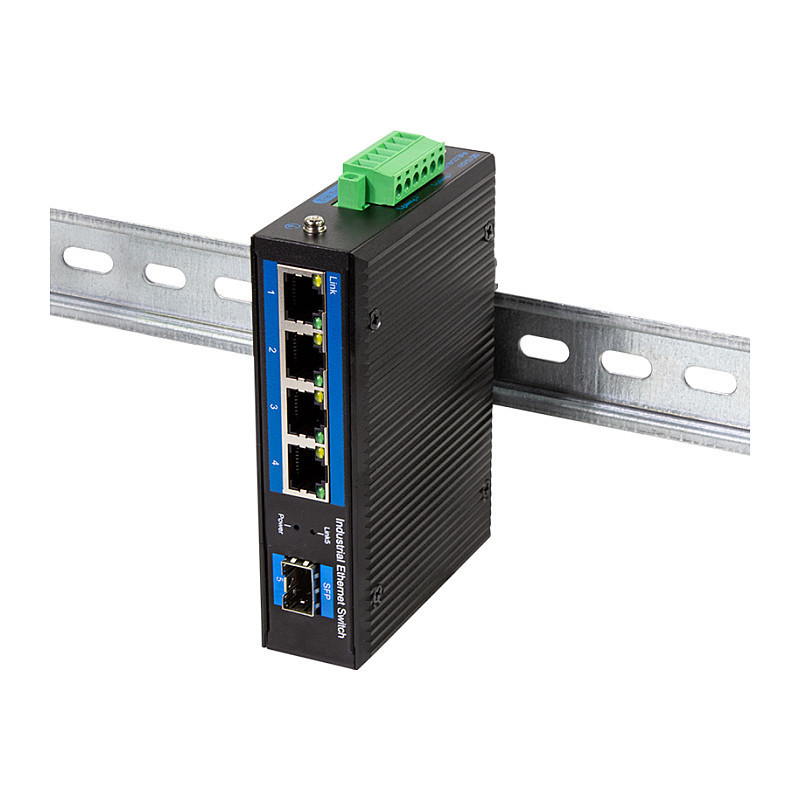

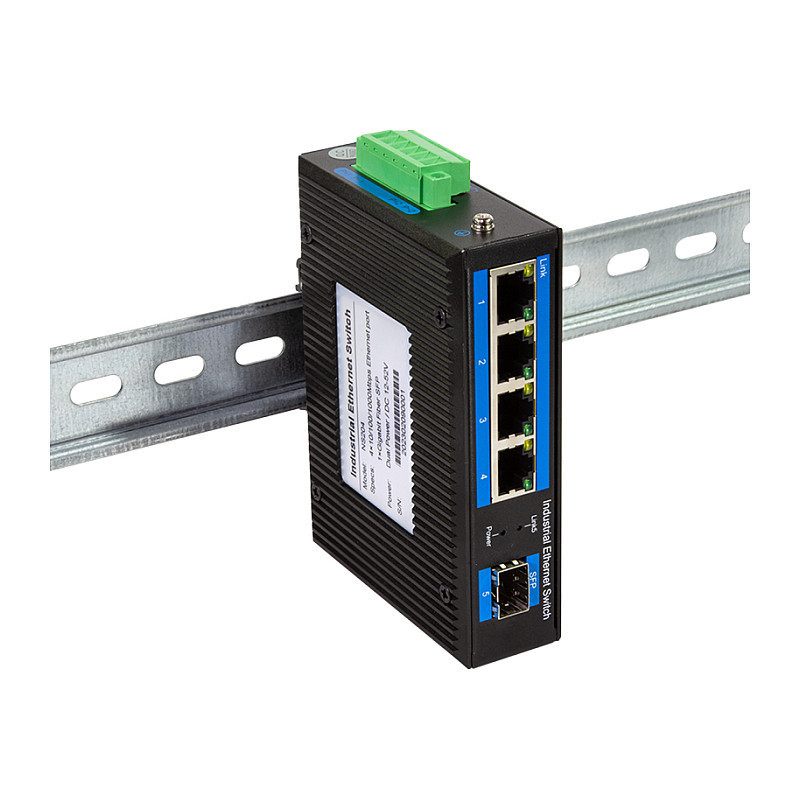

Feature: Wall mountable

Performance

Mean time between failures (MTBF): 300000 h

Power

Power source: DC
Feature: Power supply included

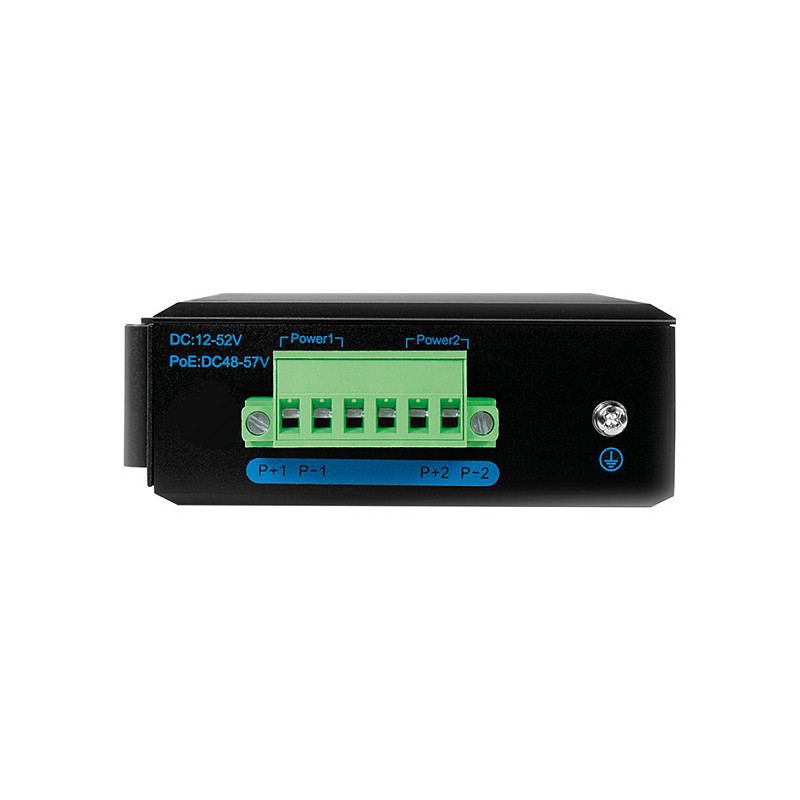

DC input voltage: 12 - 52 V
Power consumption (max): 3 W

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Storage relative humidity (H-H): -40 - 80%

Weight & dimensions

Width: 118 mm
Depth: 86 mm
Height: 33.5 mm
Weight: 360 g

Packaging content

Feature: Manual

Packaging data

Package type: Box
Package width: 165 mm
Package depth: 135 mm
Package height: 54 mm
Package weight: 460 g
