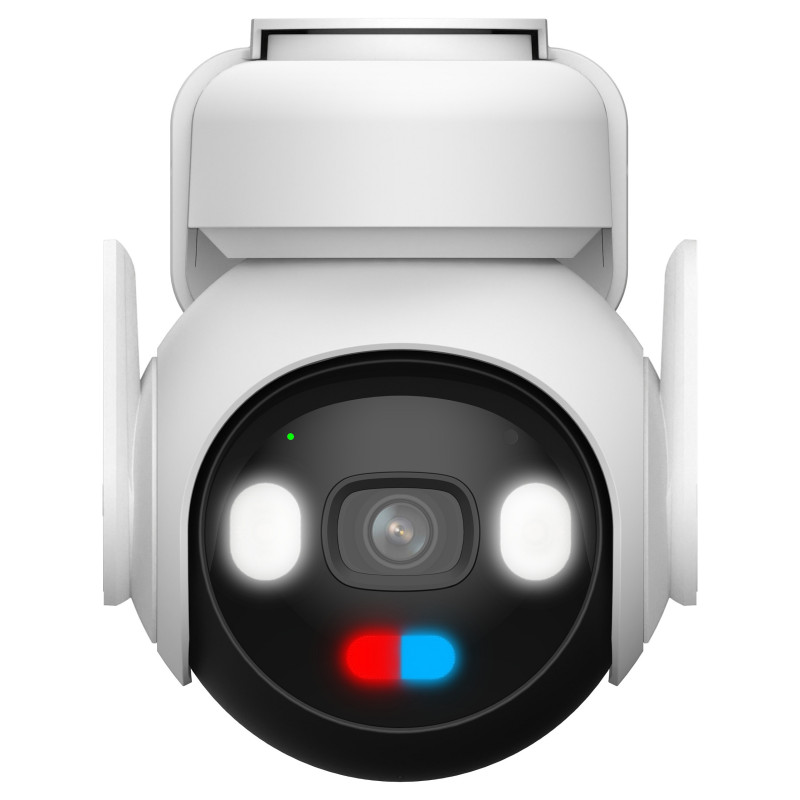

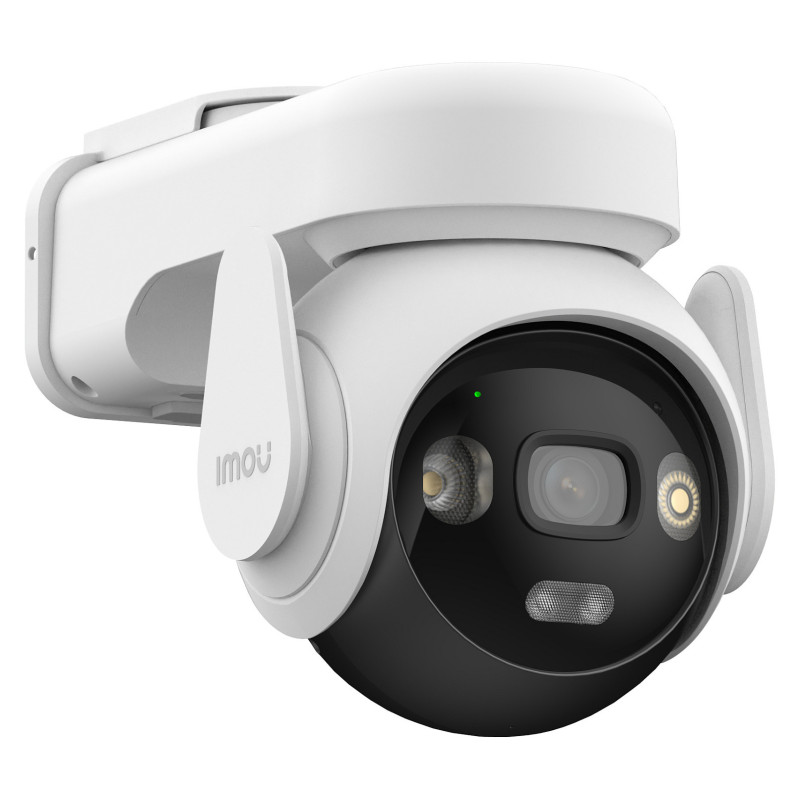

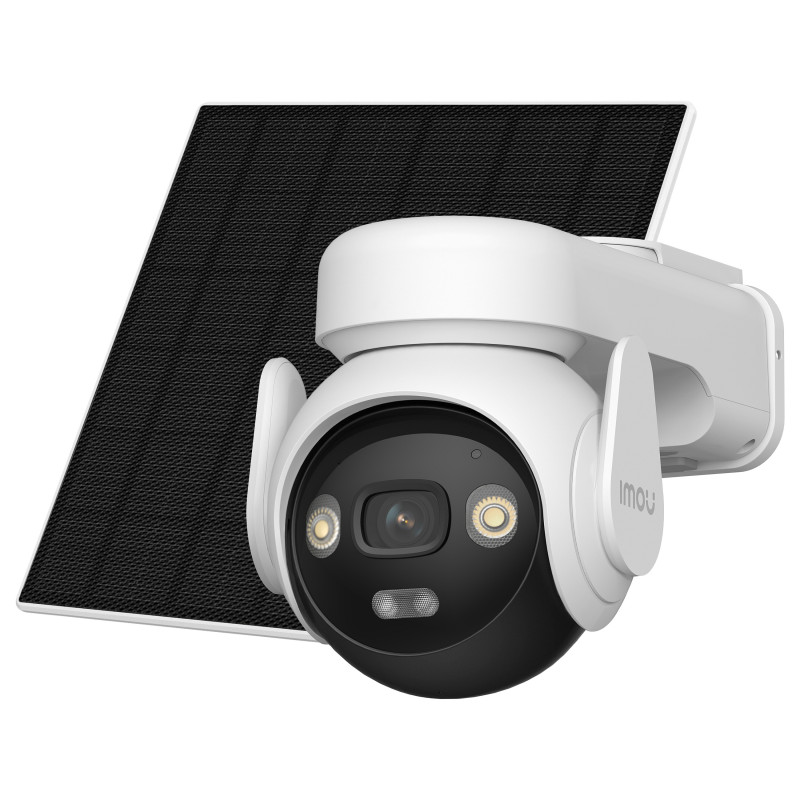

Imo AOV PT 5MP

Imou AOV PT 5MP. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Wall, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 76°, Lens viewing angle, vertical: 41°, Lens viewing angle, diagonal: 91°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 8x, Fixed focal length: 3.6 mm

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wireless
Feature: Auto-tracking
Feature: Day/night mode
Feature: Built-in light

Design

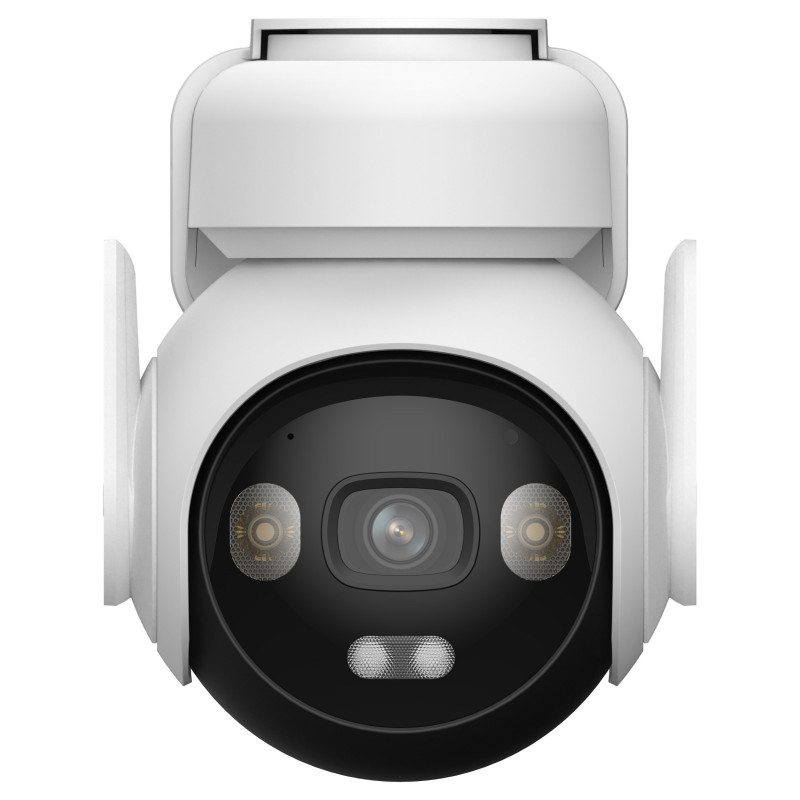

Form factor: Turret
Mounting type: Wall
Product colour: White
Housing material: Plastic
Protection features: Waterproof, Weatherproof
International Protection (IP) code: IP66
Feature: Weatherproof

Camera

Lens viewing angle, horizontal: 76°
Lens viewing angle, vertical: 41°
Lens viewing angle, diagonal: 91°
Tilt angle range: 0 - 90°
Pan range: 0 - 340°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Digital zoom: 8x
Number of lenses: 1
Fixed focal length: 3.6 mm

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR/White

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.265
Feature: Video recording
Frame rate: 15 fps

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone

Network

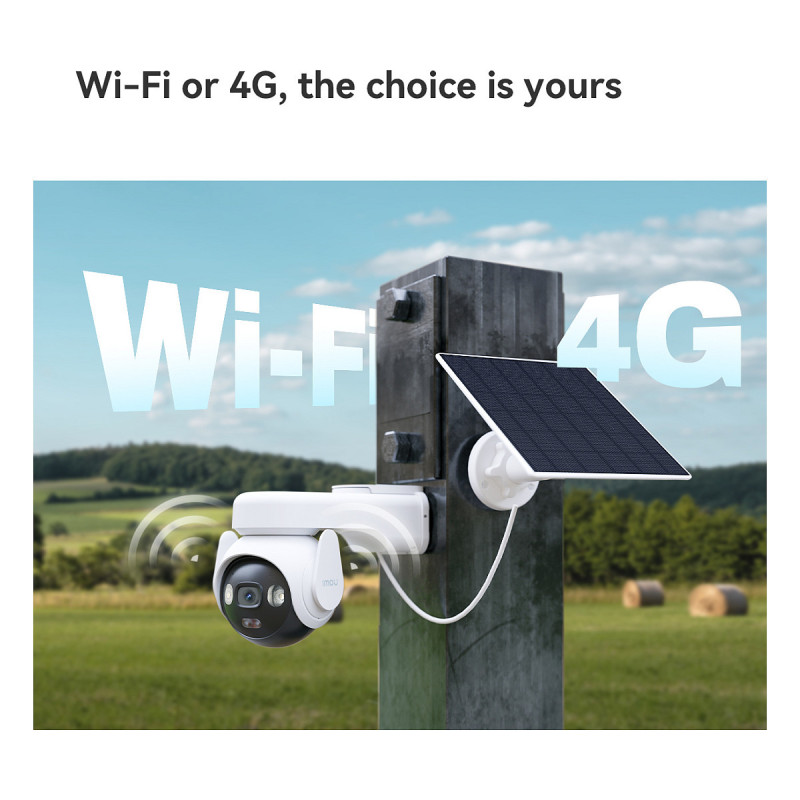

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Frequency band: 2.4 GHz
Feature: SIM card slot
SIM card type: NanoSIM
Feature: Mobile network connection
Mobile network generation: 4G
4G standard: LTE-TDD & LTE-FDD

Storage

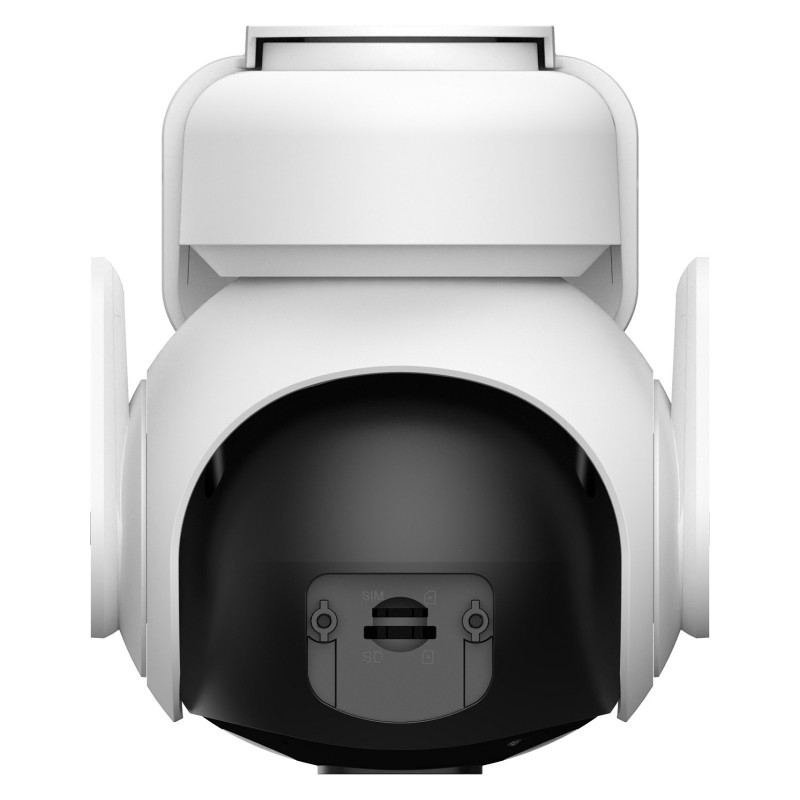

Feature: Card reader integrated

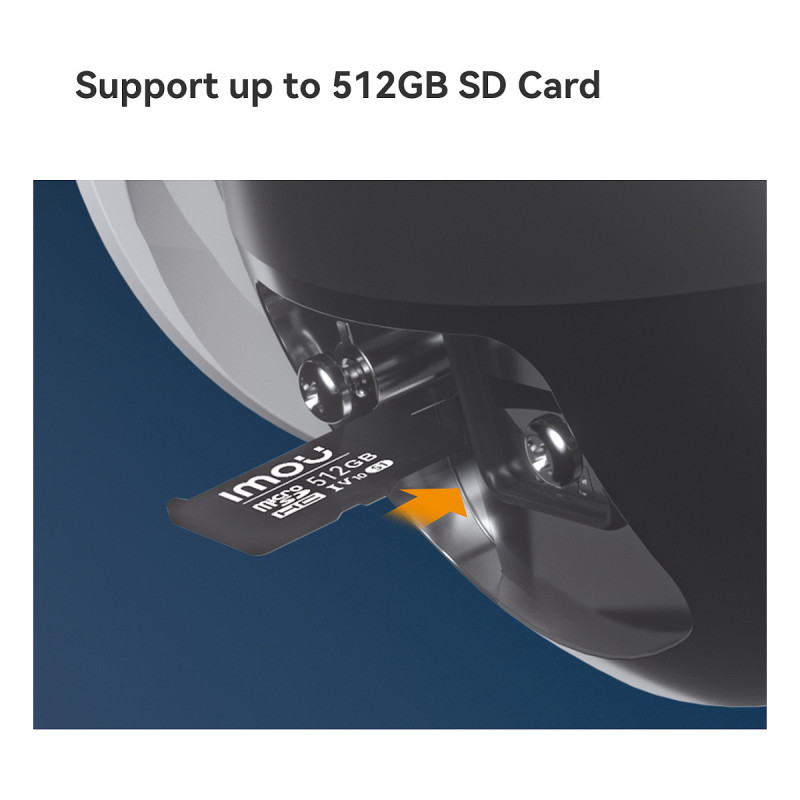

Compatible memory cards: MicroSD (TransFlash), SD
Maximum memory card size: 512 GB

Ports & interfaces

Feature: USB port

Security

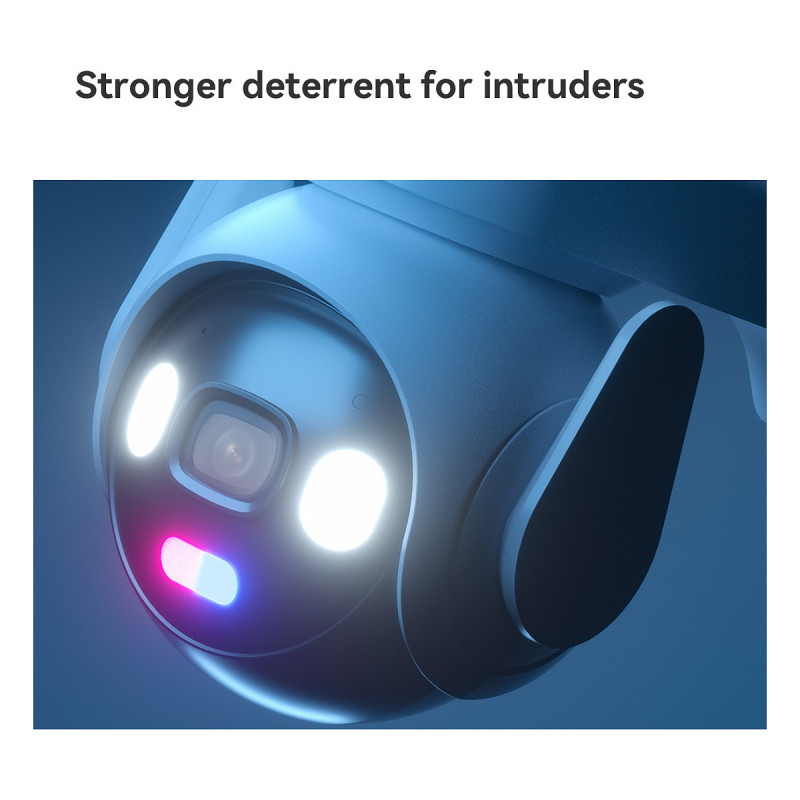

Feature: Built-in siren

Management features

Feature: Reset button

Power

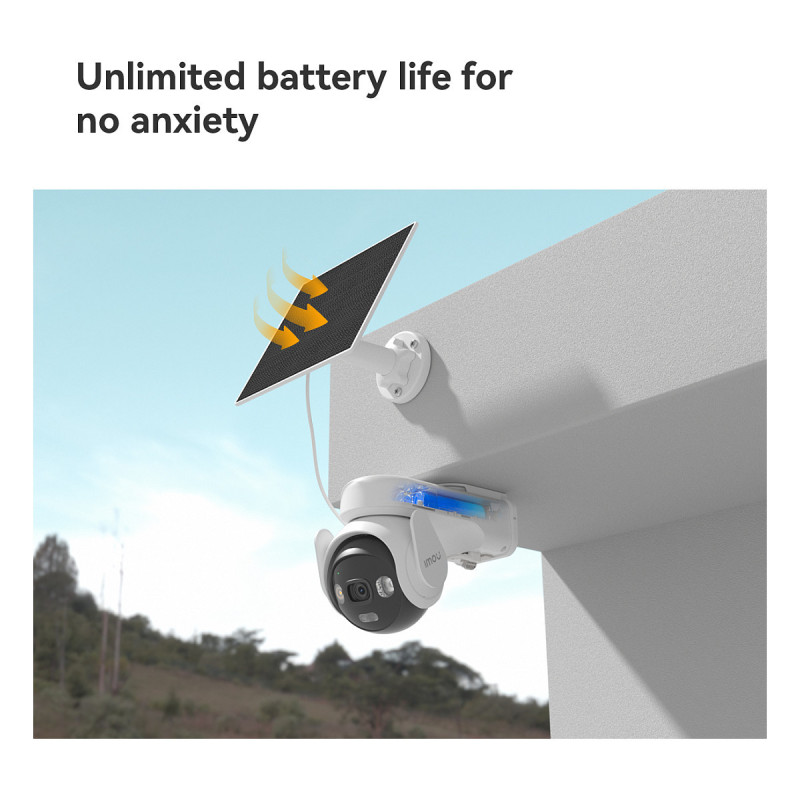

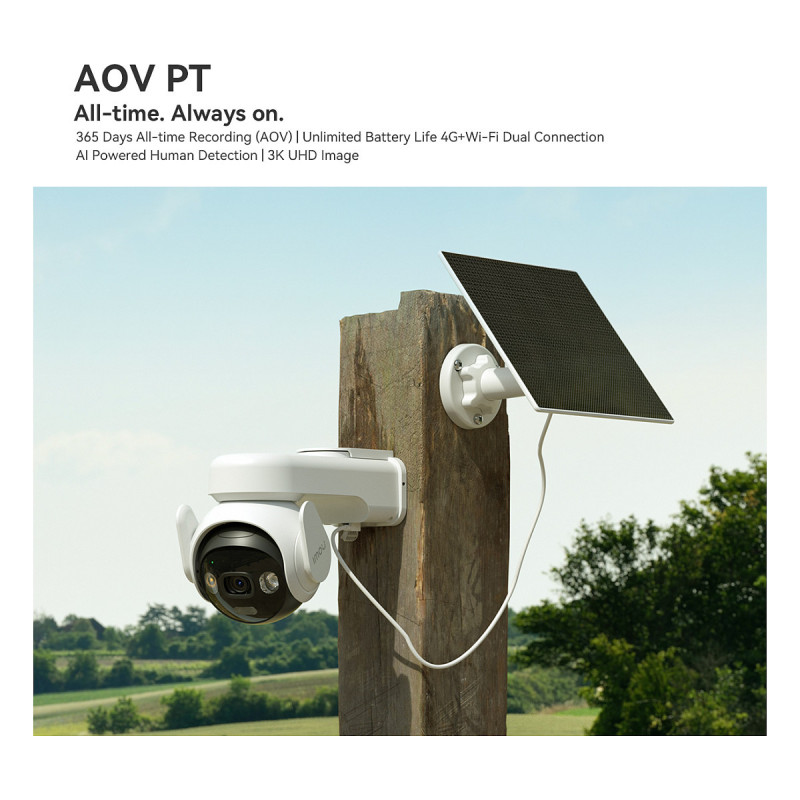

Power source type: Battery, DC, Solar
Power consumption (typical): 3.5 W
DC output current: 5 A

Battery

Battery capacity: 10000 mAh
Feature: Rechargeable battery

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -10 - 45 °C

System requirements

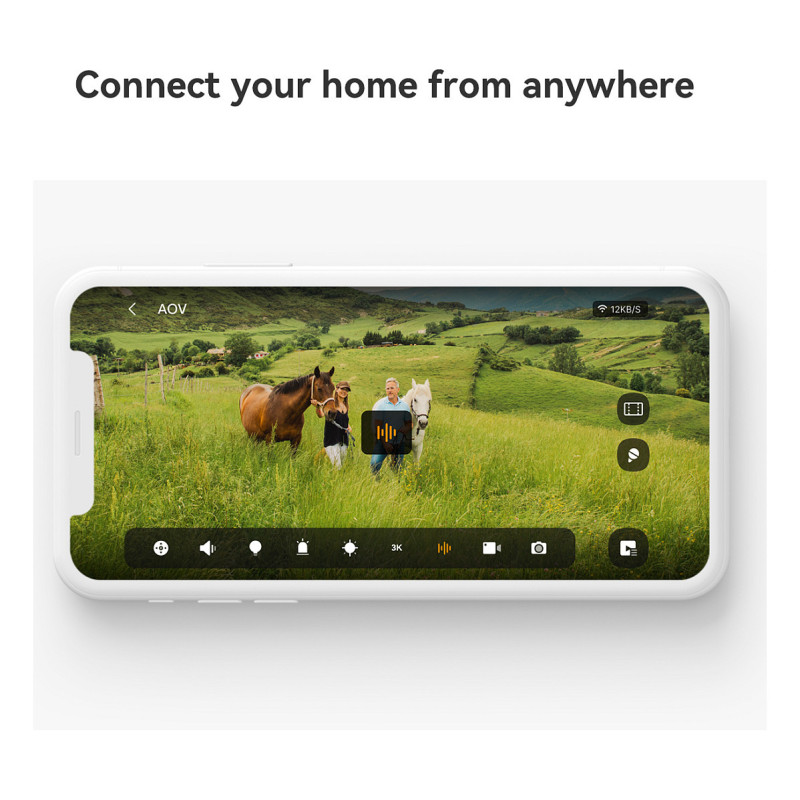

Mobile operating systems supported: Android, iOS

Weight & dimensions

Width: 110 mm
Depth: 177 mm
Height: 142 mm
Weight: 1 kg

Sustainability

Compliance certificates: CE

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Mounting brackets included
Feature: Screws included
Feature: Battery included
Feature: Quick start guide
