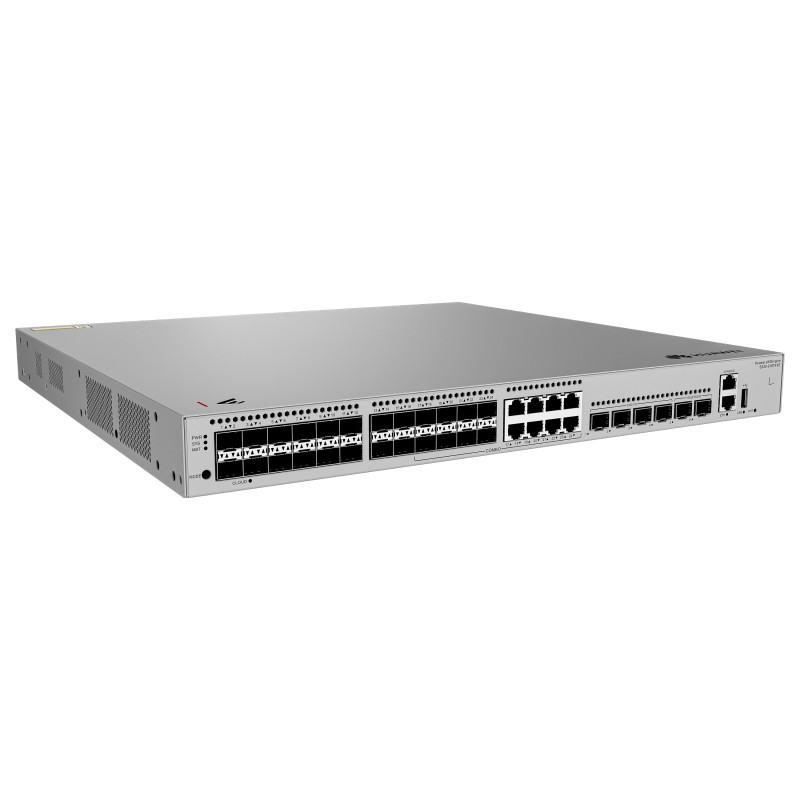

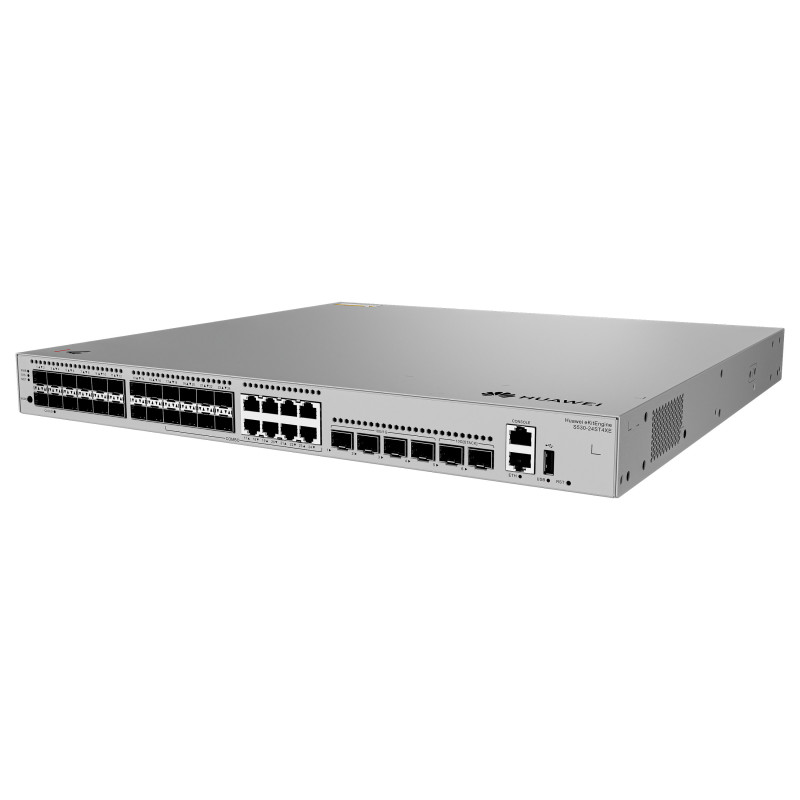

HUAWEI eKit S530 Series S530-24ST4XE

HUAWEI eKit S530 Series S530-24ST4XE. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. DC input voltage: 38 - 72 V. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Huawei eKitEngine S530
Series Switches
eKitEngine S530 series switches are developed based on next-generation high-performing hardware and software platform. eKitEngine S530 switches support simplified operations and maintenance (OM), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. eKitEngine S530 switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)

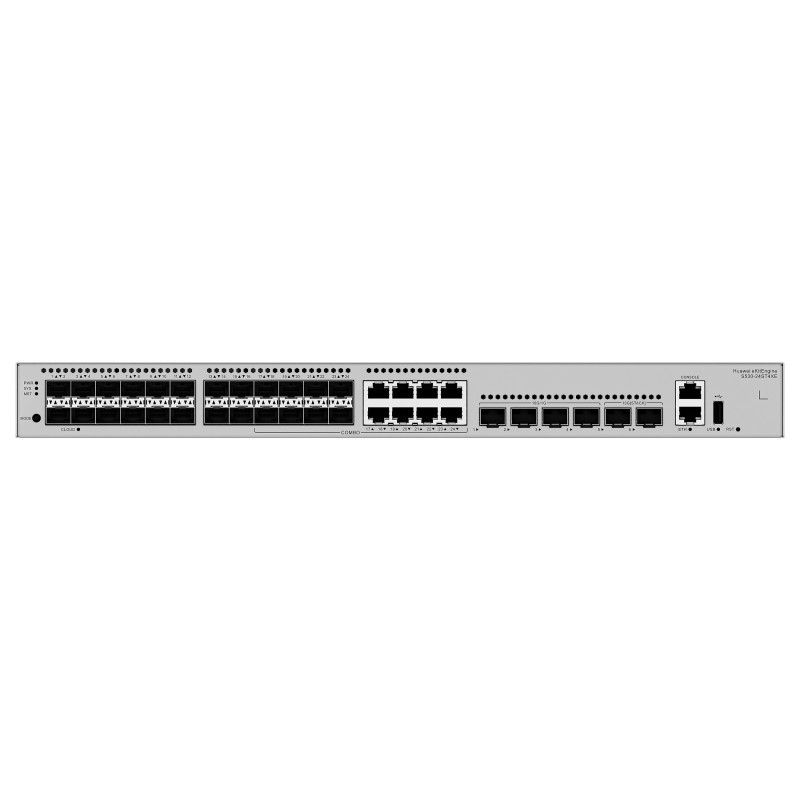

Ports interfaces

Combo SFP ports quantity: 8
SFP module slots quantity: 24
SFP+ module slots quantity: 4
USB Type-A ports quantity: 1
Console port: RJ-45
USB 2.0 ports quantity: 1
Power connector: AC-in jack

Network

Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Port mirroring
Feature: IP routing
Feature: Link aggregation
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,1000,100 Mbit/s
Feature: VLAN support
Number of VLANs: 4094

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 132 Mpps
MAC address table: 32000 entries
Feature: Static route

Security

DHCP features: DHCP snooping, DHCPv6 snooping, DHCP client, DHCPv6 client, DHCP relay, DHCPv6 relay
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: SSH/SSL support
Feature: Loop protection

Multicast features

Feature: Multicast support

Protocols

Routing protocols: BGP, BGP4+, IS-IS, OSPF, OSPFv3, VRRP

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: Metal
Feature: Reset button
LED indicators: Yes
International Protection (IP) code: IP20
Number of fans: 2 fan(s)

Performance

Internal memory: 2000 MB
Flash memory: 1000 MB
Noise level: 38.1 dB
Mean time between failures (MTBF): 982054.98 h

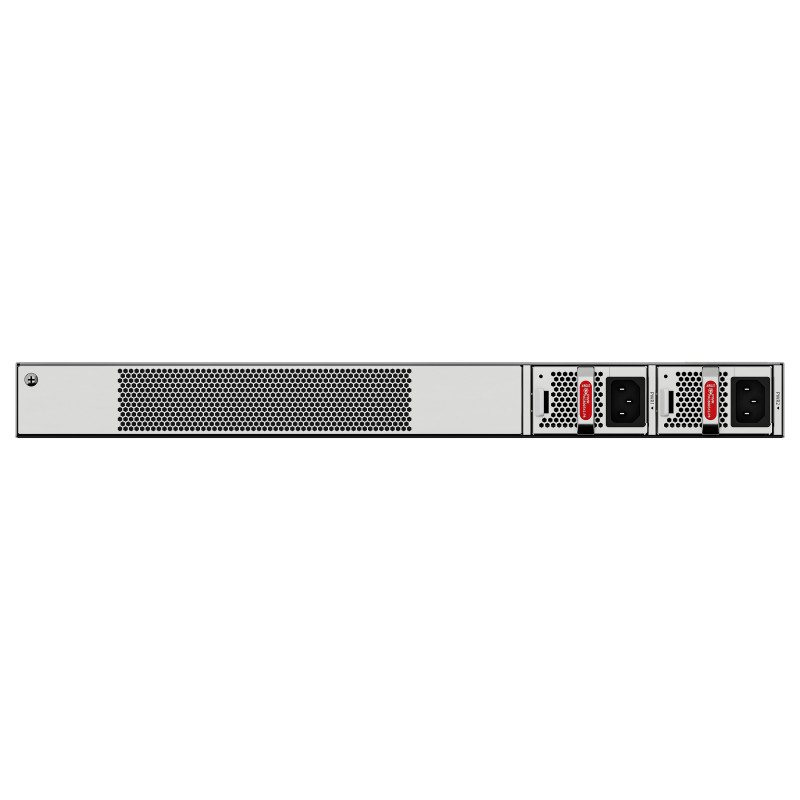

Power

Power source: AC
Feature: Power supply included
Number of power supply units: 2
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 38 - 72 V
Power consumption (max): 85.78 W
Power protection features: Surge protection

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m
Non-operating altitude: 0 - 5000 m

Weight dimensions

Width: 442 mm
Depth: 420 mm
Height: 43.6 mm

Packaging data

Package weight: 8 kg

Certificates

Compliance certificates: Electromagnetic Compatibility (EMC)
