HUAWEI eKit AP300 Series AP371

HUAWEI eKit AP300 Series AP371. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2500 Mbit/s. Security algorithms: WPA-PSK, WPA2, WPA2-PSK, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13.6 W

Huawei eKitEngine AP371 is a next-generation indoor access point (AP) in compliance with Wi-Fi 7 (802.11be). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, supporting a total of 4 spatial streams and achieving a device rate of up to 3.57 Gbps. The AP is empowered by brand-new Wi-Fi 7 technologies and is equipped with built-in smart antennas to enable always-on Wi-Fi signals for users, significantly enhancing users' wireless network experience. Additionally, it has a compact size, facilitating flexible deployment and saving customer investment. These strengths make the eKitEngine AP371 ideal for indoor coverage scenarios such as small- and mediumsized business (SMB) workplaces, hospitals, and shopping malls and supermarkets.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2500 Mbit/s
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Feature: Bluetooth
Bluetooth version: 5.4
Feature: Bluetooth Low Energy (BLE)
Feature: Automatic channel scanning
Feature: Tunnel forwarding
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Fast roaming
WLAN channel features: WLAN channel management, WLAN channel rate adjustment
Feature: VLAN support
Virtual LAN features: SSID-based VLAN assignment
Feature: Adaptive bandwidth management
Feature: Maximal-Ratio Combining (MRC)
Feature: Cyclic Delay Diversity (CDD)
Feature: Cyclic Shift Diversity (CSD)
Feature: Dynamic Frequency Selection (DFS)
Feature: Quality of Service (QoS) support
Feature: BeamForming

Security

Security algorithms: WPA-PSK, WPA2, WPA2-PSK, WPA3
Number of SSID supported: 10
Feature: DHCP snooping
Feature: Wireless Intrusion Detection System (WIDS)
Feature: Wireless Intrusion Prevention System (WIPS)
Feature: Access Control List (ACL)
Feature: Blacklist
Feature: Whitelist

Protocols

Feature: DHCP client

Management features

Feature: Web-based management

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1

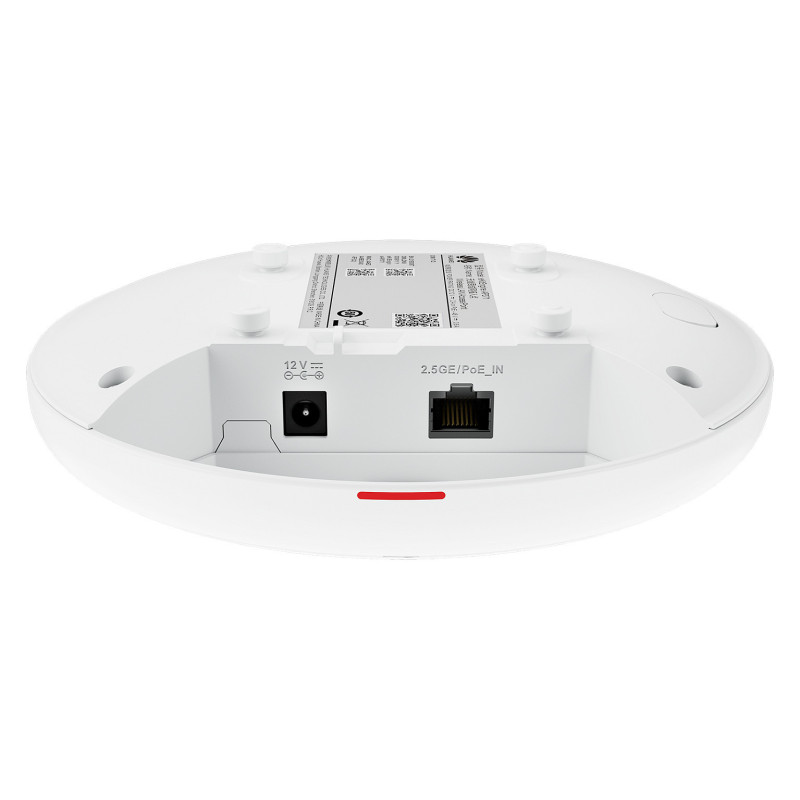

Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V
Power consumption (max): 13.6 W

Design

Placement: Ceiling, Wall
Product colour: White
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna features: Integrated antenna
Antenna gain level (max): 5 dBi

Certificates

Compliance certificates: REACH, RoHS, WEEE

Weight & dimensions

Width: 180 mm
Depth: 35 mm
Height: 180 mm

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating altitude: -60 - 5000 m
